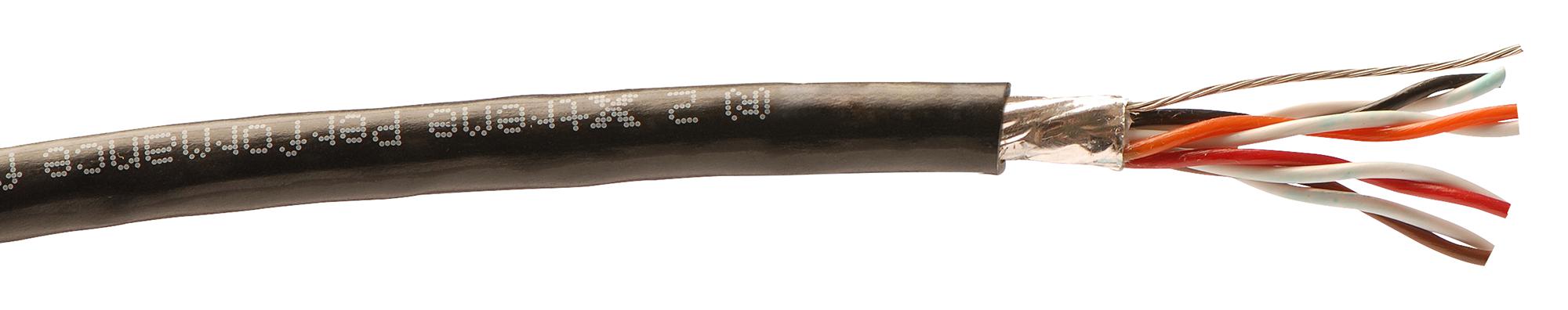

ALPHA WIRE 25481BK005 Industrial Shielded Cable
The 25481 BK005 from Alpha Wire is an Xtra-Guard® 2 oil and abrasion resistant single-pair foil-shielded cable rated for 300V. Designed for demanding industrial environments, it features a rugged polyurethane jacket that provides three times the tear and abrasion resistance of standard PVC. The cable's aluminum/polyester foil shield offers moderate EMI protection, particularly at lower frequencies, while a tinned copper drain wire simplifies grounding. It contains a single pair of 22 AWG stranded tinned copper conductors with premium PVC insulation, and a nylon ripcord enables straightforward jacket removal. The cable operates effectively from -30°C to +90°C, maintaining flexibility at low temperatures. It is resistant to oils, solvents, chemicals, and fuels, and is rated at 300V. The cable complies with UL AWM style 20668, CSA AWM I/II A/B FT1 standards, and passes UL VW-1 and CSA FT4 flame tests. It is UL listed, recognized, CSA certified, and CE compliant. Suitable for use in industrial, manufacturing, automotive, aerospace, automation, process control, mining, oil, and gas applications.
ALPHA WIRE 25481BK005 Industrial Shielded Cable Specifications:
- Construction: Single pair foil-shielded cable
- Conductor: 22 AWG stranded tinned copper
- Insulation: Premium PVC
- Jacket: Polyurethane, 0.032" wall, color options including black and yellow
- Shield: Aluminum/polyester foil with 25% overlap
- Drain wire: Tinned copper, 22 AWG
- Ripcord: Nylon at one end
- Temperature Range: -30°C to +90°C
- Voltage Rating: 300V
- Flammability: UL VW-1, CSA FT4
- Standards: UL AWM style 20668, CSA AWM I/II A/B FT1
- Resistance: Oil, solvent, chemical, and fuel resistant
- Flexibility: Maintains flexibility at low temperatures
- Application: Industrial, automotive, aerospace, automation, mining, oil & gas
Buy the AlphaWire Series Xtra-Guard 2: 25481BK005
Purchase the AlphaWire Series Xtra-Guard 2 25481BK005 online today and ensure your project benefits from premium oil and abrasion resistance, flexible construction, and effective EMI shielding. This high-quality, UL and CSA certified cable is ideal for industrial applications, providing superior performance in harsh environments. With its rugged polyurethane jacket, tinned copper conductors, and UL VW-1 flame rating, it guarantees safety and durability. Get fast shipping and secure your supply of reliable industrial wiring today for manufacturing, automation, or aerospace needs.
Order your AlphaWire Series Xtra-Guard 2 25481BK005 today and equip your projects with rugged, reliable cable designed for demanding industrial conditions.
