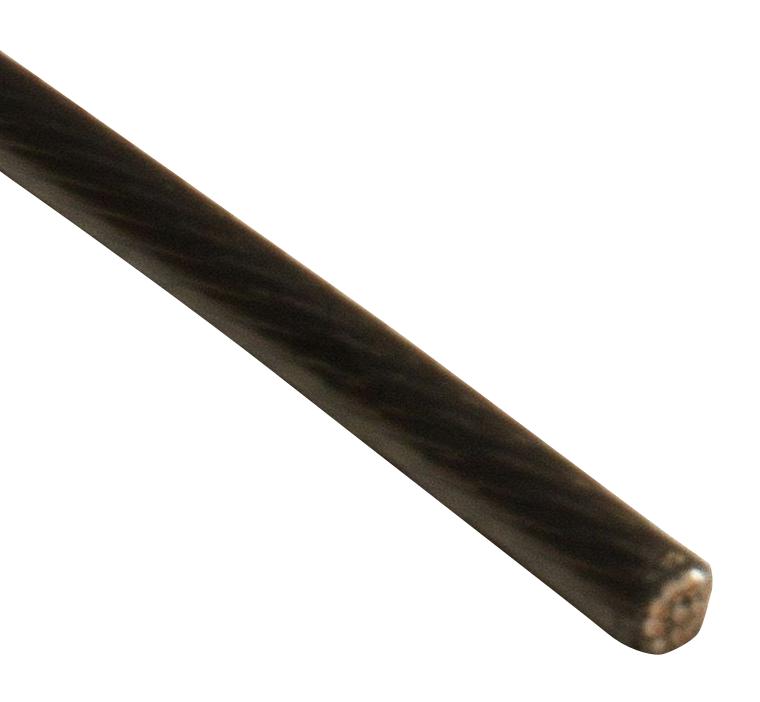

ALPHA WIRE 2616BK001 High-Temperature Control Wire
This product is a high-performance, flexible wire designed for harsh environments, with a temperature range of -150°C to 300°C. Constructed with 16 AWG copper conductors, nickel plating for corrosion resistance, and PFA insulation, it ensures excellent electrical and mechanical properties. Meets UL 11905 style, 600V rating, water, sunlight, and chemical resistance, making it ideal for industrial, automation, and control applications. Suitable for extensive wiring harnesses in demanding settings, it complies with RoHS and REACH standards, ensuring environmental safety and regulatory compliance.
ALPHA WIRE 2616BK001 High-Temperature Control Wire Specifications:
- Conductor Size: 16 AWG (19/.0117) copper, nickel plated
- Insulation: 0.007'' wall, PFA, white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 20.4 Lbs maximum
- Inductance: 0.03 H/ft, nominal
- Conductor DCR: 4.6 O/1000 ft @ 20°C
- Flammability: UL 11905 300°C / 600 V
- Environmental Resistance: Water, sunlight, chemical resistant
- Physical Dimensions: Flange Traverse x Barrel approximately 6.5 x 4 x 2.5 inches, spool dimensions may vary
- Compliance: RoHS 2011/65/EU, 2015/863/EU, REACH, China ROHS SJ/T 11364/2014
Buy the Alpha Wire 2616 U– Reliable High-Temperature Conductors for Industrial Applications
Order Alpha Wire 2616 online today and benefit from our reliable, high-quality conductors designed for extreme temperatures and demanding environments. Ideal for industrial automation, control panels, and machinery wiring, this wire offers exceptional flexibility, durability, and environmental resistance. Its UL 11905 certification, 600V rating, and compliance with RoHS and REACH regulations ensure safety, environmental friendliness, and reliable performance. Purchase now for fast delivery and secure your projects with premium wiring components that meet stringent industry standards.
Buy Alpha Wire 2616 now and experience unmatched reliability and performance in harsh industrial environments.
