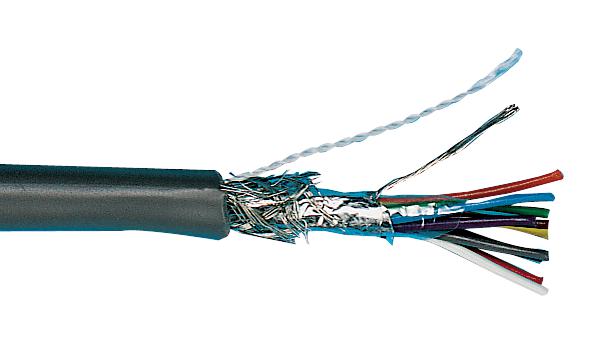

ALPHA WIRE 630010SL005 Shielded Cable Assembly
The ALPHA WIRE 6300/10 SL005 is a versatile shielded cable assembly designed for a wide range of industrial and commercial applications. This cable features 10 individually cabled conductors, each insulated with PVC and encased in a durable slate jacket. The aluminum/mylar tape shield provides excellent electromagnetic interference (EMI) protection, ensuring signal integrity. With a temperature range of -20°C to 80°C and RoHS compliance, this cable is suitable for demanding environments and applications requiring environmentally friendly materials. Its construction includes a foil facing out and a drain wire for enhanced shielding performance.
ALPHA WIRE 630010SL005 Shielded Cable Assembly Specifications:
- Component 1: 10 X 1 COND
- Conductor AWG: 24 (7/32) AWG TC
- Insulation Wall: 0.010" Wall, Nom. PVC, Semi Rigid
- Conductor Diameter: 0.024"
- Insulation Diameter: 0.044"
- Colors: BLACK, WHITE, RED, GREEN, BROWN, BLUE, VIOLET, ORANGE, YELLOW, GRAY
- Cable Assembly: 10 Components Cabled
- Twists per foot: 4.8 Twists/foot (min)
- Shield Material: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing Out
- Drain Wire AWG: 24 (7/32) AWG TC
- Jacket Wall: 0.032" Wall, Nom., PVC
- Jacket Diameter: 0.244 (0.258 Max.)
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 6300/10 10C 24 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL) 60C TYPE CMG FT4 CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2464
- UL Voltage Rating: 80°C / 300 VRMS
- UL CM Rating: 75°C
- UL VW-1 Rating: VW-1
- CSA Type: C(UL) TYPE CMG
- CSA Voltage Rating: 60°C
- CSA FT4 Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliance: Complies with EU Directive 2011/65/EU (RoHS Directive)
- REACH Compliance: Does not contain SVHCs above 0.1% mass
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 39 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 32 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 58 pf/ft @1 kHz, Nominal
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 26 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 15.9 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 12 x 3.5 Continuous length
- Packaging 500 FT: 12 x 6 x 3.5 Continuous length
- Packaging 100 FT: 12 x 4.5 x 3.5 Continuous length
