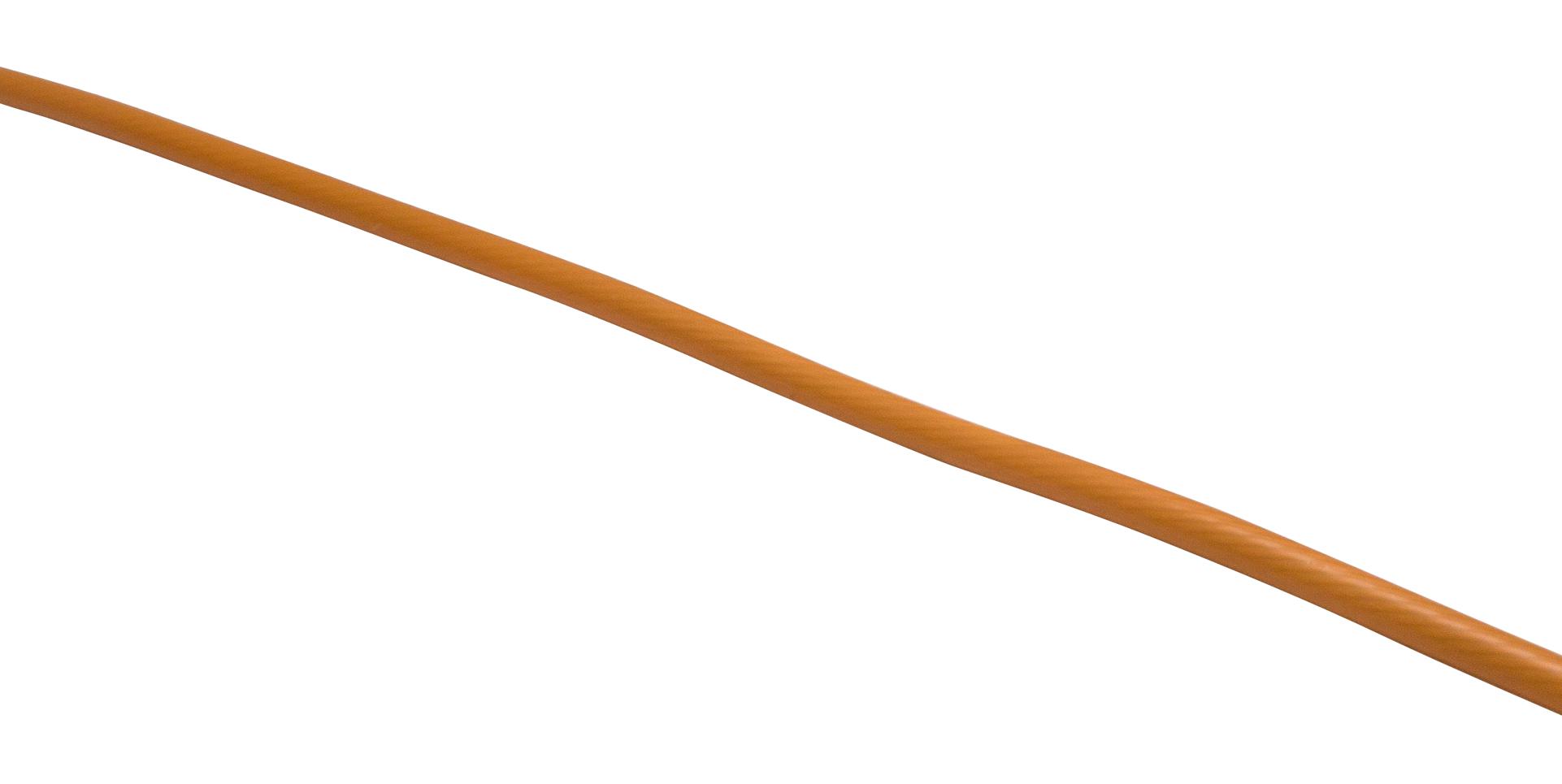

ALPHA WIRE 2616OR005 Industrial High-Temperature Wire
The product is a flexible, high-temperature-rated wire with 16 AWG copper conductors, insulated with a 0.007-inch PFA wall in various colors, suitable for industrial and electronic applications. It meets UL 11905 standards, withstands temperatures from -150°C to 300°C, and offers water, chemical, and sunlight resistance. The wire features a bend radius of 10 times its diameter and a maximum pull tension of 20.4 lbs, ensuring durability and reliable electrical performance in demanding environments.
ALPHA WIRE 2616OR005 Industrial High-Temperature Wire Specifications:
- Conductors: 16 AWG, 19/.0117 inches, Nickel plated copper
- Insulation Wall Thickness: 0.007 inches, PFA, white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 20.4 lbs
- Voltage Rating: 600 V
- Inductance: 0.03 H/ft (nominal)
- Conductor Resistance: 4.6 O/1000 ft at 20°C
- Applicable Standards: UL AWM Style 11905, Sunlight, Chemical, Water Resistant
- Environmental Compliance: RoHS 2, RoHS 3, REACH, China ROHS SJ/T 11364-2014
- Spool Dimensions: 6.5 x 4 x 2.5 inches, 1000 ft length; 2.75 x 2 x 1.125 inches, 100 ft length
Buy the Buy Alpha Wire Part Number 2616OR005 Online
Secure your electrical projects with Alpha Wire 2616OR005, a durable, high-temperature cable featuring PFA insulation and UL 11905 compliance. Perfect for demanding industrial, electronic, and automation applications, this wire withstands temperatures from -150°C to 300°C, providing exceptional performance. Its water, chemical, and sunlight resistance ensure longevity in harsh environments. With a bend radius of 10X and a maximum pull tension of 20.4 lbs, it guarantees reliable, safe electrical connections in critical applications. Order online now for fast delivery and quality assurance.
Get Alpha Wire 2616OR005 today—built for high-temperature environments with water, chemical, and sunlight resistance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616OR005?
You can click on the BUY or RFQ button to purchase 2616OR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616OR005?
You can download the 2616OR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616OR005?
ALPHA WIRE
