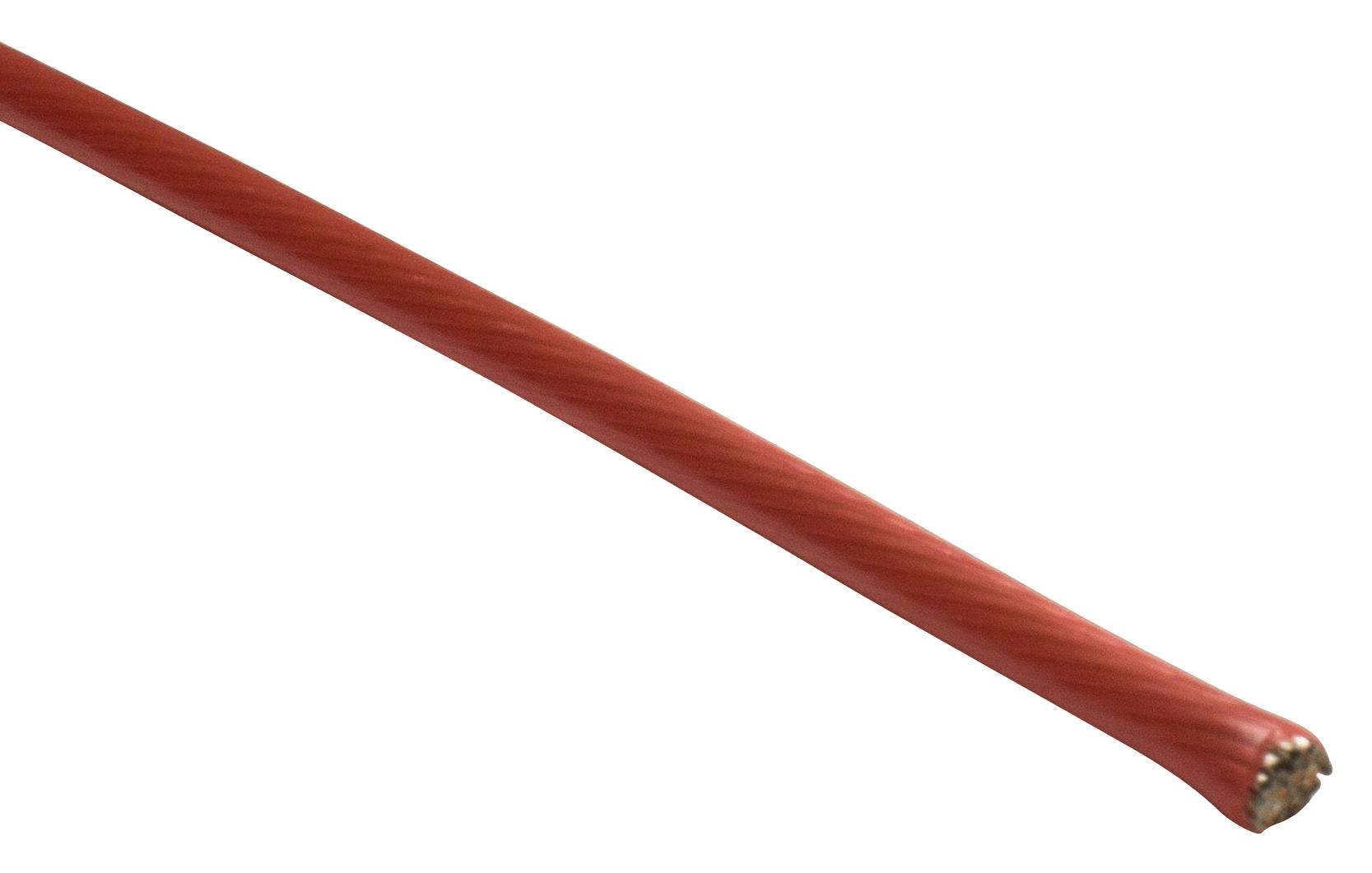

ALPHA WIRE 2616RD005 High Temperature Wire
This is a flexible, high-temperature wire suitable for industrial and electronic applications, with a temperature range of -150°C to 300°C. Crafted from a 16 AWG copper conductor plated with 10% Nickel, it features a PFA insulation wall of 0.007 inches in white, black, red, green, yellow, blue, brown, and orange colors. It complies with UL 11905 standards for 600 V and 300°C, offering chemical, water, and sunlight resistance. Its mechanical properties include a bend radius of 10 times the cable diameter and a maximum pull tension of 20.4 lbs, making it reliable for demanding environments.
ALPHA WIRE 2616RD005 High Temperature Wire Specifications:
- Conductor: 16 AWG copper with 10% Nickel plating
- Insulation: PFA, 0.007 inch wall, white, black, red, green, yellow, blue, brown, orange
- Voltage Rating: 600 V
- Temperature Range: -150°C to 300°C
- Bend Radius: 10X cable diameter
- Pull Tension: 20.4 lbs maximum
- Environmental: Chemical, water, sunlight resistant
- Standards: UL 11905, RoHS compliant
- Physical Dimensions: Flexible cable, continuous lengths 6.5 x 4 x 2.5 inches and 2.75 x 2 x 1.125 inches, spool varies
- Mechanical Properties: Bend radius 10X cable diameter, maximum pull tension 20.4 lbs
- Electrical Properties: Voltage rating 600 V, inductance 0.03 H/ft, conductor DCR 4.6 Ω/1000 ft at 20°C
Buy the Buy Alpha Wire Part Number 2616RD005 Online
Purchase the high-temperature flexible wire from Alpha Wire online today. With a 16 AWG copper conductor, nickel plating, and 0.007-inch PFA insulation, it withstands up to 300°C and 600V. Its chemical, water, and sunlight-resistant properties make it ideal for demanding applications. The wire features a bend radius of 10 times the diameter and maximum pull tension of 20.4 lbs, ensuring durability and flexibility. Available in multiple colors, it ships in continuous lengths suitable for various industrial uses, providing quality and reliability.
Order your Alpha Wire 2616RD005 high-temp flexible wire today and ensure reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616RD005?
You can click on the BUY or RFQ button to purchase 2616RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616RD005?
You can download the 2616RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616RD005?
ALPHA WIRE
