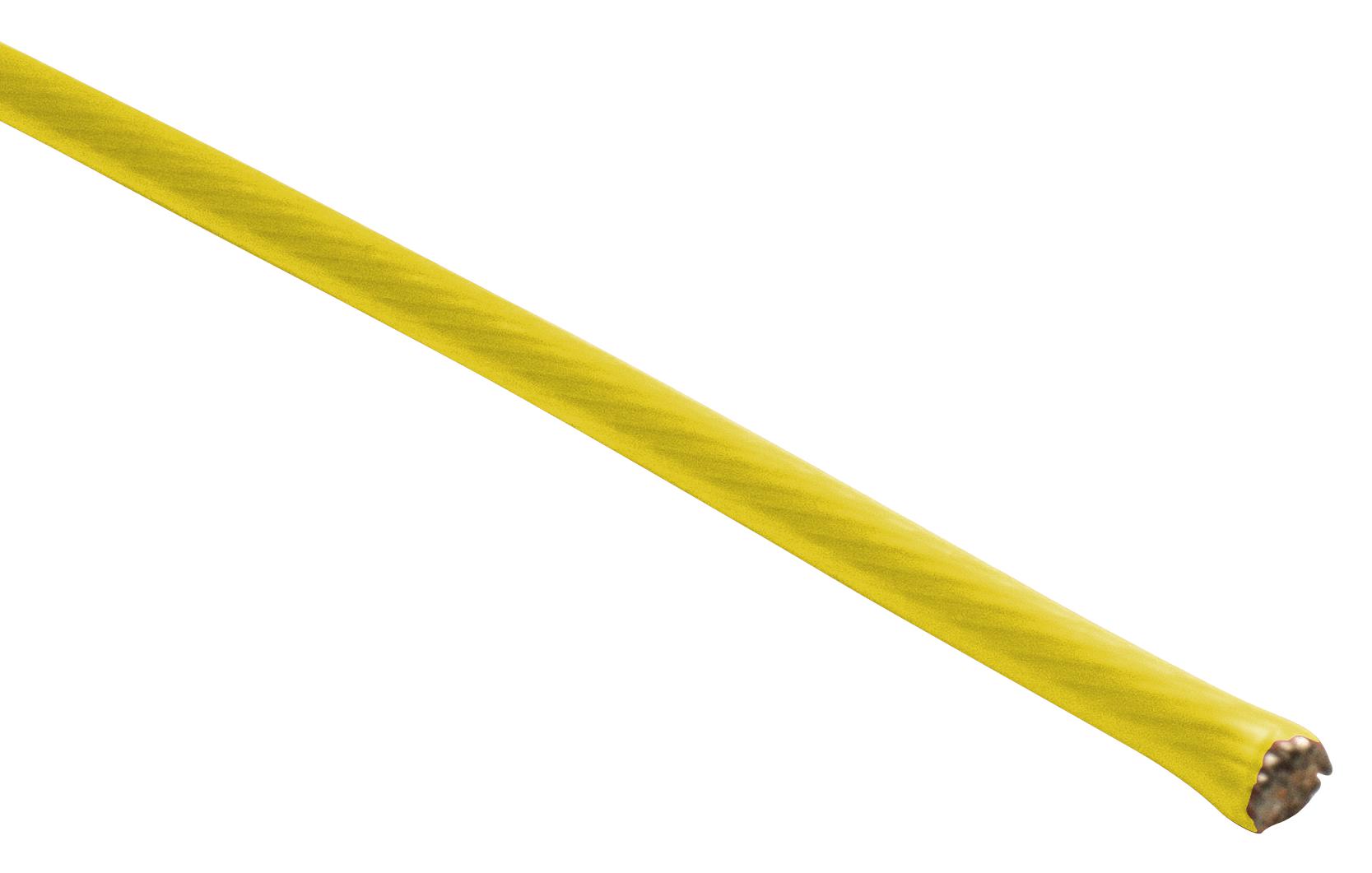

ALPHA WIRE 2632YL001 Hookup Wire
This rugged, sunlight and chemical resistant hookup wire features a 32 AWG solid copper conductor with 0.008 inches diameter, insulated with 0.006-inch wall, white, black, red, green, yellow, blue, and brown colors. Designed for harsh environments, it operates within a temperature range of -150°C to +300°C and is rated for 600 V. The wire offers excellent flexibility with a bend radius of 10 times its diameter and maximum pull tension of 0.5 pounds, making it ideal for industrial and electrical applications requiring durability and high performance.
ALPHA WIRE 2632YL001 Hookup Wire Specifications:
- Conductor: 32 AWG solid copper, 0.008 inches diameter
- Insulation: 0.006-inch wall, PFA, white, black, red, green, yellow, blue, brown, orange colors
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 0.5 Lbs maximum
- Inductance: 0.07 LH/ft, nominal
- Conductor DCR: 184 ohms/1000 ft at 20°C
- Reel Lengths: 1000 ft, 100 ft
- Flame Retardant: UL 94V-0
- Applicable Standards: RoHS 2, RoHS 3, REACH, China RoHS SJ/T 11364
- Environmental Resistance: Sunlight, water, chemical resistant
Buy the Alpha Wire Series 711 Hookup Wire: 2632YL001
Secure your electrical connections with Alpha Wire Series 711 hookup wire. Featuring 32 AWG solid copper conductors insulated with durable PFA, this wire offers excellent chemical, water, and sunlight resistance. Rated for 600 V and capable of operating from -150°C to +300°C, it’s ideal for demanding industrial environments. The flexible design with a 10x bend radius ensures easy installation. Purchase 100 or 1000 ft reels online today to ensure your projects meet high standards of safety, durability, and performance.
Buy Alpha Wire Series 711 hookup wire 2632YL001 now and experience unmatched durability, high temperature resistance, and reliable electrical performance for your projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2632YL001?
You can click on the BUY or RFQ button to purchase 2632YL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2632YL001?
You can download the 2632YL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2632YL001?
ALPHA WIRE
