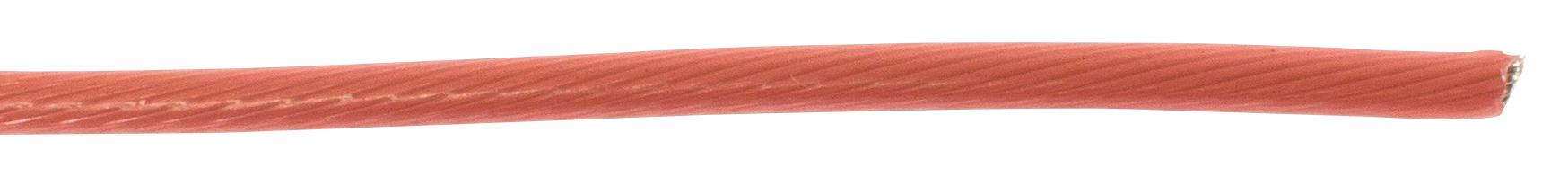

ALPHA WIRE 2924RD005 ThermoThin hookup wire
The Alpha Wire 2924 RD005 is a high-temperature ThermoThin hookup wire designed for demanding applications such as oil and gas, semiconductor, energy, and military sectors. It features a 24 AWG nickel-plated copper conductor with 19/36 strand construction, insulated with thin, chemically resistant ECA fluoropolymer that offers excellent dielectric and flame retardant properties. Capable of withstanding extreme temperatures from -150°C to +300°C, it operates at 600V with a UL listing (AWM 11540). Its small size, lightweight design, and bend radius of 10x the cable diameter make it ideal for compact, critical environments.
ALPHA WIRE 2924RD005 ThermoThin hookup wire Specifications:
- Conductor Material: Nickel-plated copper with 19/36 strand construction
- Conductor Size: 24 AWG
- Insulation: ECA fluoropolymer, 0.0055 inches wall thickness, 0.035 inches outer diameter
- Temperature Range: -150°C to +300°C
- Voltage Rating: 600V
- Flame Resistance: UL 94V-0, Vertical and horizontal flame resistant
- Resistance to chemicals, water, and oil
- Bend Radius: 10 times the cable diameter
- Maximum Pull Tension: 3.7 lbs
- Inductance: 0.04 µH/ft (nominal)
- DC Resistance: 25 ohms per 1000 ft at 20°C
- Length: 100 ft spool
- Outer Diameter: 0.035 inches
- Certifications: UL listed, CE marked
- Applicable Standards: UL 11540 300°C / 600V, Gas resistant, Flame resistant
Buy the Buy AlphaWire Part Number 2924RD005 Online
Purchase AlphaWire 2924 RD005 ThermoThin hookup wire online to ensure your projects benefit from high-temperature resistance, excellent dielectric properties, and superior chemical and flame retardant features. Designed for demanding environments, this 24 AWG nickel-plated copper conductor with advanced fluoropolymer insulation provides reliability at temperatures from -150°C to +300°C. With UL and CE certifications, a compact lightweight design, and a 100-foot spool, it’s ideal for oil, gas, semiconductor, and military applications. Get this durable, high-performance wire now for your critical needs.
Buy AlphaWire 2924 RD005 high-temperature hookup wire now and experience unmatched reliability, flexibility, and performance in critical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2924RD005?
You can click on the BUY or RFQ button to purchase 2924RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2924RD005?
You can download the 2924RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2924RD005?
ALPHA WIRE
