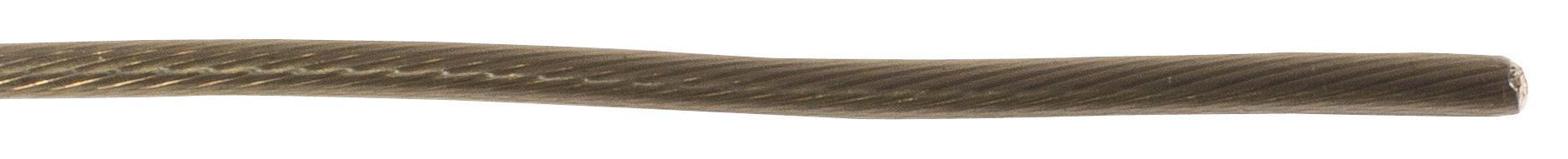

ALPHA WIRE 2932BK005 High-Temperature Hook-Up Wire
The Alpha Wire 2932 BK005 is a ThermoThin hook-up wire engineered for high-temperature environments demanding compact and lightweight wiring solutions. Featuring ECA fluoropolymer insulation, it offers excellent dielectric strength, chemical, UV, and water resistance, making it ideal for applications in oil, gas, semiconductor manufacturing, energy, and military sectors. With a voltage rating of 600V, operating from -150°C to +300°C, and made with solid nickel-plated copper conductors in 32 AWG, this 100-foot wire boasts a 0.004-inch insulation wall, 0.016-inch outer diameter, a nominal inductance of 0.06 µH/ft, and 184 ohms/1000 ft DCR at 20°C. It is durable with a bend radius of 10x its diameter and a maximum pull tension of 0.5 lbs, ensuring reliable high-temperature electrical connections.
ALPHA WIRE 2932BK005 High-Temperature Hook-Up Wire Specifications:
- Conductor Material: Nickel-Plated Copper
- Conductor Size: 32 AWG (0.032 mm²)
- Insulation Material: ECA Fluoropolymer
- Insulation Thickness: 0.004 inches (0.10 mm)
- Outer Diameter: 0.016 inches (0.41 mm)
- Voltage Rating: 600 V
- Temperature Range: -150°C to +300°C
- Minimum Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 0.5 Lbs
- Inductance: 0.06 µH/ft
- DCR: 184 ohms/1000 ft at 20°C
- Length: 100 ft
- Color: Black
- Certifications: CE (EU Low Voltage Directive 2014/35/EC)
Buy the Buy Alpha Wire Part Number 2932BK005 Online
Purchase the Alpha Wire 2932BK005 online to ensure you receive a durable, high-performance hook-up wire designed for extreme environments. This wire features fluoropolymer insulation that resists chemicals, UV, water, and heat, making it perfect for demanding applications in oil, gas, semiconductor, and military sectors. With a maximum temperature of +300°C and a voltage rating of 600V, it provides reliable electrical connections. Its 100-foot length, solid nickel-plated copper conductors, and compact design ensure ease of installation and robust operation, helping you maintain safety and efficiency in your projects.
Buy Alpha Wire 2932BK005 now and experience high-temperature durability, excellent chemical resistance, and reliable performance in critical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2932BK005?
You can click on the BUY or RFQ button to purchase 2932BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2932BK005?
You can download the 2932BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2932BK005?
ALPHA WIRE
