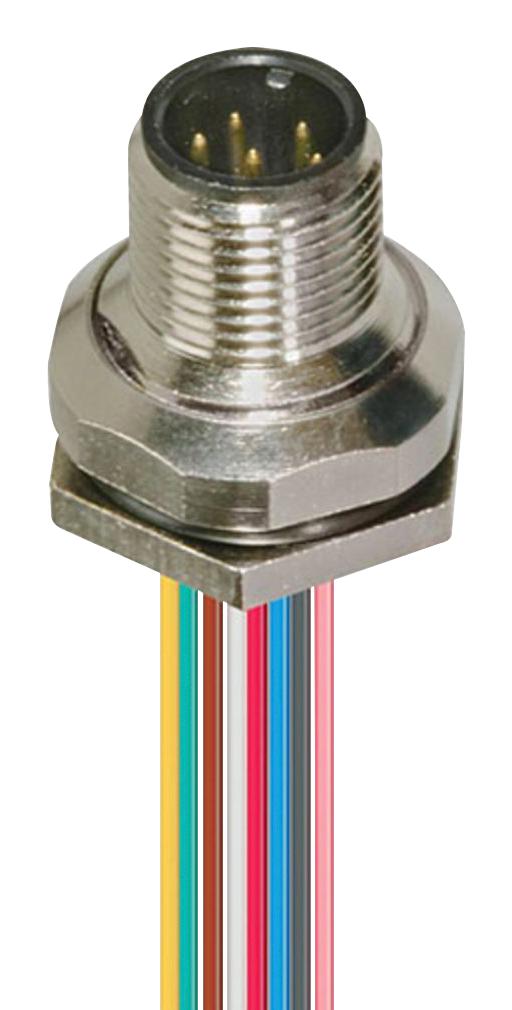

ALPHA WIRE 305DCFSNC032 Industrial M12-A Receptacle
The M12-A Male Front Mount M16 Receptacle from AlphaWire is a rugged, stainless steel connector designed for industrial applications requiring reliable connections. It features a copper alloy contact with gold plating, IP67/NEMA 6P protection, and compatibility with IEC 61076-2-101 standards. The receptacle uses tinned copper lead wires (AWG 22) insulated with PVC, rated for 4A current at 40°C and rated voltage up to 300V for 5 poles. Suitable for harsh environments, it ensures secure, corrosion-resistant connections with a compact, durable design.
ALPHA WIRE 305DCFSNC032 Industrial M12-A Receptacle Specifications:
- Receptacle Style: M12, Male
- Housing Material: Stainless Steel
- Insert Material: BPT
- Contact Material: Copper Alloy, Gold Plated
- Contact Resistance: <5moQ
- Rated Current: 4A at 40°C
- Rated Voltage: 250V (IEC), 300V (UL) for 5 Pole
- Lead Wires: 22 AWG Tinned Copper, 20 AWG for Green/Yellow
- Insulation: PVC
- Outside Diameter: 0.062 inches
- Environmental Protection: IP67 / NEMA 6P
- Operating Temperature: -25°C to +70°C
- Ingress Protection: IP67/IP69K (for specific models)
- Connection: External Threads, Front Mount
- Panel Nut Material: Stainless Steel
- O-Ring: EPDM
- UL and CSA compliant
- Lead Length: 0.5 meters (19.7 inches)
Buy the AlphaWire 305DCFS U–Reliable Industrial Receptacle for Industrial Applications
Order the AlphaWire M12-A Receptacle online today and ensure your industrial connections are robust, corrosion-resistant, and reliable. With IP67 protection and gold-plated contacts, this stainless steel connector is suitable for harsh environments. Its compact design, rated for 4A and up to 300V, makes it ideal for automation, machinery, and control systems. Enjoy fast delivery and dedicated customer support by purchasing directly through our online store, guaranteeing your project’s success with high-quality, proven industrial connectors.
Buy AlphaWire 305DCFS now and experience unmatched reliability and performance in industrial connector solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 305DCFSNC032?
You can click on the BUY or RFQ button to purchase 305DCFSNC032 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 305DCFSNC032?
You can download the 305DCFSNC032 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 305DCFSNC032?
ALPHA WIRE
