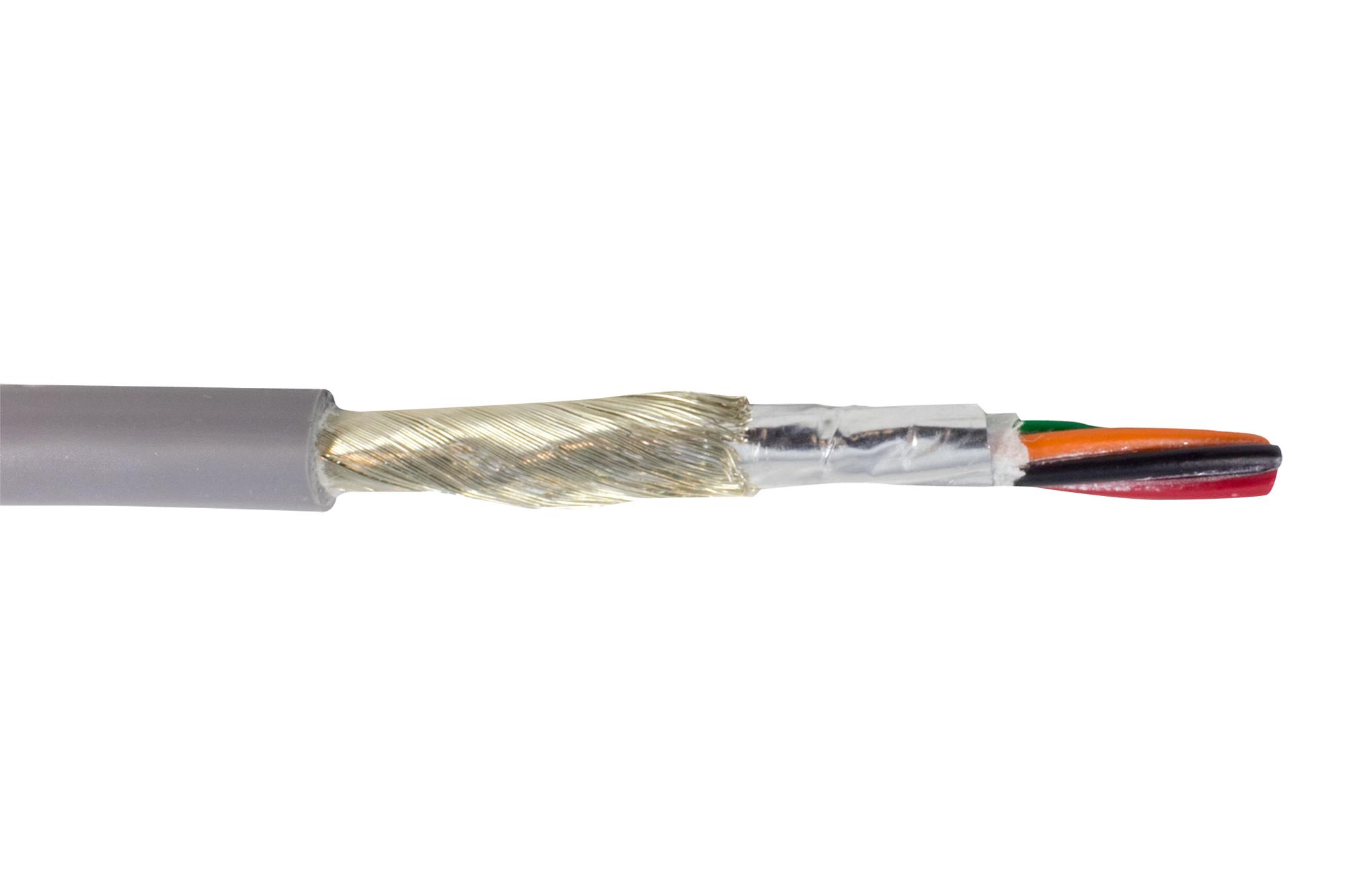

ALPHA WIRE 86185CYSL002 Flexible Data Cable
This flexible data cable features a PVC insulation with a 0.010-inch wall thickness, tinned copper conductors, and a durable PVC jacket in Slate color. It supports a maximum voltage of 300V, incorporates a nonwoven polyester core wrap, aluminum/mylar foil shield with drain wire, and is rated for temperatures between -10°C and 105°C. Suitable for industrial automation, control systems, and instrumentation, the cable offers excellent sunlight resistance and mechanical durability, making it ideal for both indoor and outdoor environments requiring reliable signal transmission and power distribution.
ALPHA WIRE 86185CYSL002 Flexible Data Cable Specifications:
- Conductor Material: Tinned Copper (18 AWG, 41/34 strands)
- Insulation Wall Thickness: 0.010 inches, PVC, semi-rigid
- Jacket Wall Thickness: 0.043 inches, PVC, Slate color
- Shield: Aluminum/Mylar tape with 25% overlap, drain wire 26 AWG Tinned Copper
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Voltage Rating: 300V
- Capacitance: 45 pF/ft @1 kHz
- Ground Capacitance: 81 pF/ft @1 kHz
- Inductance: 0.16 μH/ft
- DCR Conductor: 6.9 Ω/1000ft @20°C
- DCR Shield: 5.5 Ω/1000ft @20°C
- Bend Radius: 8 times the cable diameter
- Pull Force: Max 69 lbs
- Environmental Resistance: Sunlight, mechanical flexing
- Cable Lengths Available: 100 ft, 500 ft, 1000 ft
Buy the Alpha Wire 86185CY – Reliable Flexible Data Cable for Industrial Applications
Order the Alpha Wire 86185CY flexible data cable online today to ensure dependable communication in your industrial projects. Its tinned copper conductors, aluminum/mylar shield, and durable PVC jacket provide excellent protection and performance. Suitable for control systems, automation, and outdoor environments, this cable offers outstanding sunlight resistance, flexible bend radius, and consistent electrical properties. Secure your supply chain with this high-quality cable designed for safety, durability, and long-lasting performance. Click now to upgrade your wiring!.
Buy Alpha Wire 86185CY now and experience unmatched flexibility, durability, and reliable signal transmission for industrial use.
