ALPHA WIRE 470075CYGE033 Control Cable

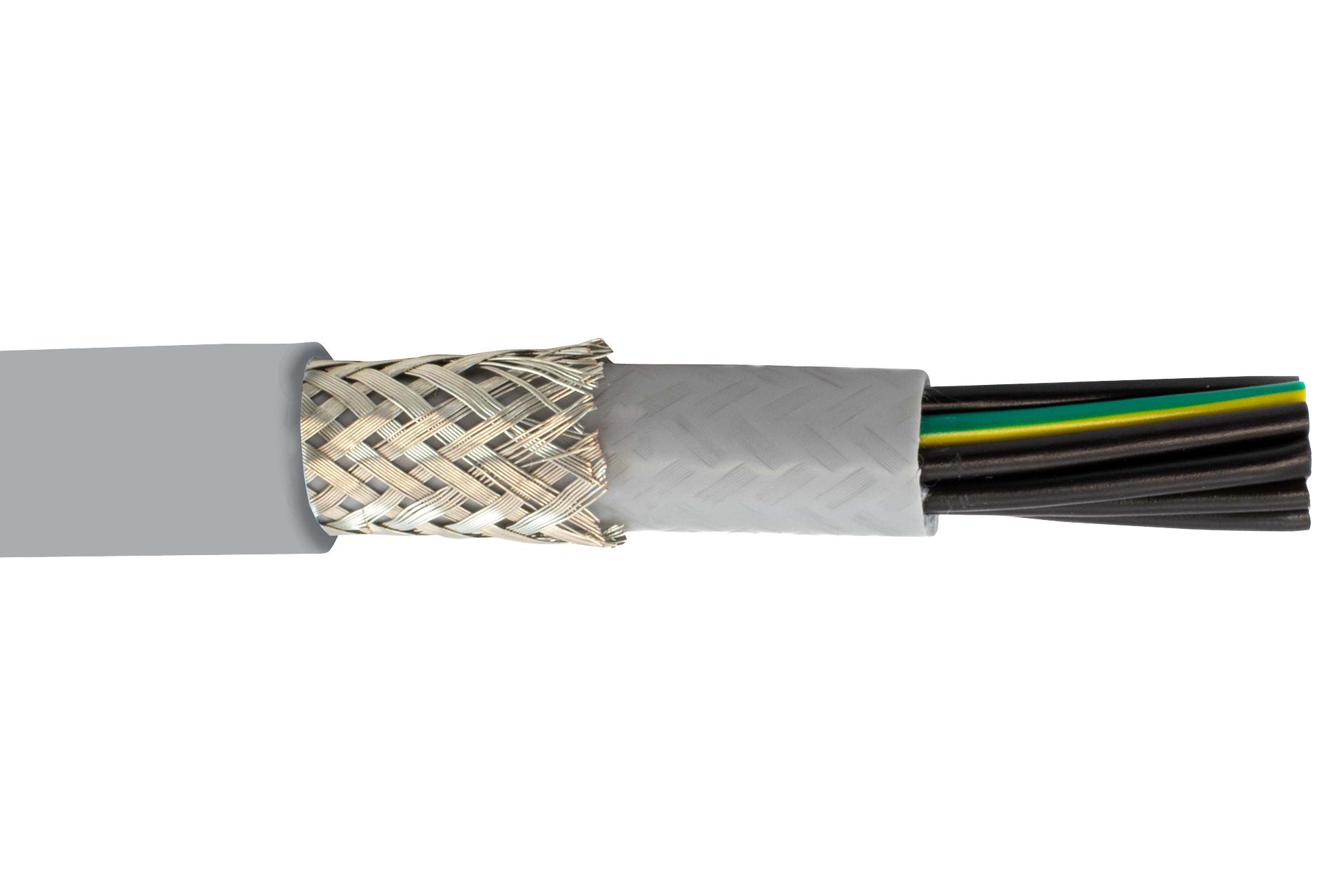

Pro-Metal control cable with shielded flexible design, suitable for demanding industrial environments. Features stranded bare copper conductors, tinned copper braid shield, and a grey PVC jacket. Resistant to oils, UV, and suitable for automation, automotive, and aerospace applications. Supports up to 1 million flex cycles, with temperature ranges from -30°C to +70°C (dynamic) and -40°C to +80°C (static). Bending radius is 20 times the outer diameter for movement and 6 times for fixed installations, ensuring durability and reliable performance in challenging conditions.
ALPHA WIRE 470075CYGE033 Control Cable Specifications:
- Conductor Material: Bare Copper
- Shield: Tinned Copper Braid, 80% Coverage
- Jacket Material: PVC, Grey
- Diameter: Wall Thickness: 0.400 mm (nom.), 0.65 mm (nom.)
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Voltage Rating: 300/500 V
- Bend Radius: 20 x Outer Diameter (occasional movement), 6 x Outer Diameter (fixed)
- Resistance: Conductor DCR 39 Ω/Km @20°C
- Certifications: CE, RoHS, REACH
- Flexible for up to 1 million cycles, suitable for demanding environments
- Construction: Stranded bare copper conductors, PVC jacket
- Application: Control panels, automation, aerospace, automotive, defense
Buy the Buy Alpha Wire Control Cable Part Number 470075CY Online
Purchase Alpha Wire control cable online today to ensure reliable performance in industrial automation, aerospace, and automotive uses. This shielded cable features tinned copper braid shielding, PVC jacket, and excellent oil and UV resistance. Capable of supporting up to 1 million flex cycles, it operates within a temperature range of -40°C to +80°C (static) and -30°C to +70°C (dynamic). Ideal for control panels, automation systems, and demanding environments requiring durable, flexible wiring solutions for long-term reliability.
Buy Alpha Wire 470075CY control cable now and experience unmatched durability, flexibility, and oil resistance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470075CYGE033?
You can click on the BUY or RFQ button to purchase 470075CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470075CYGE033?
You can download the 470075CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470075CYGE033?
ALPHA WIRE
