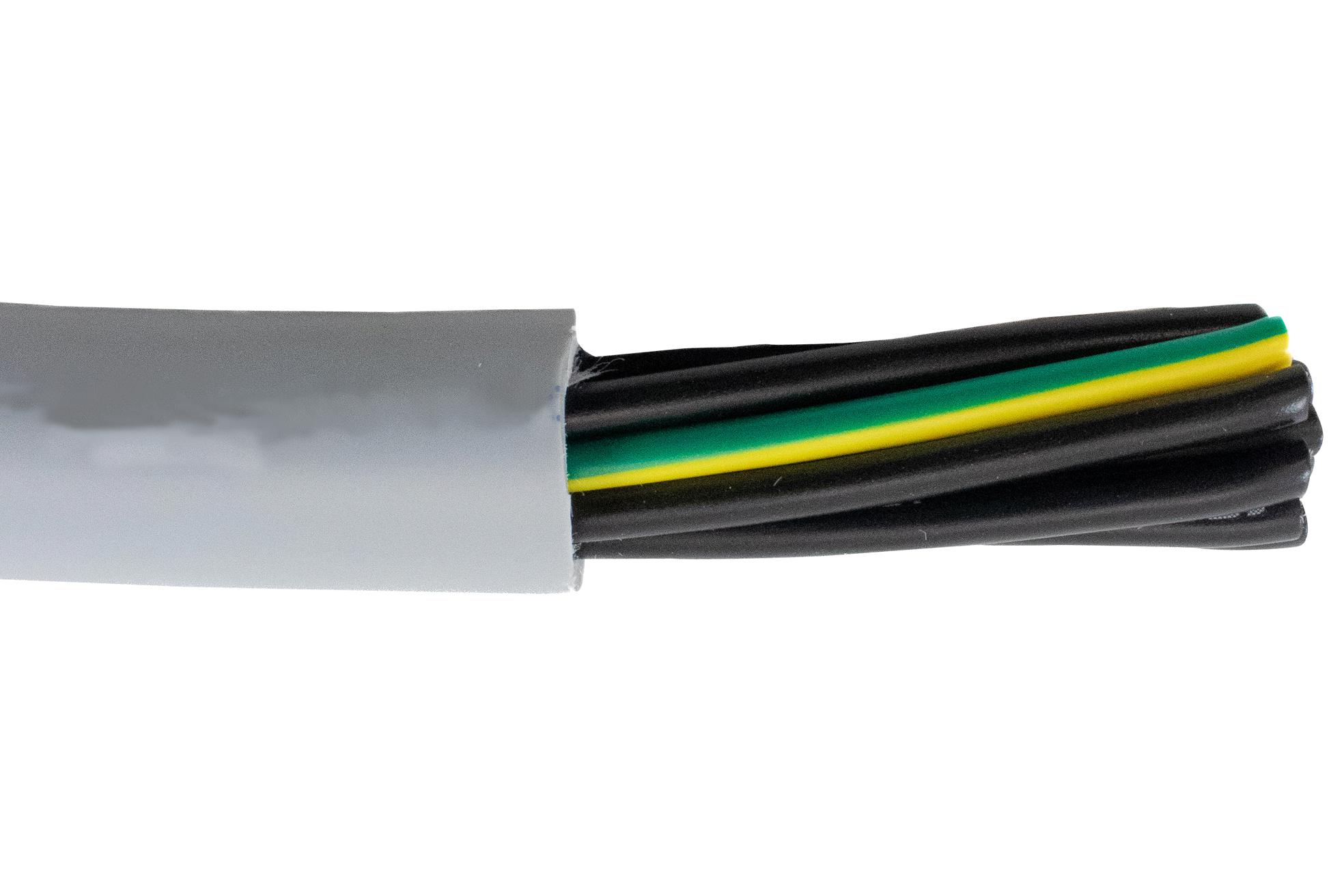

ALPHA WIRE 470127YYGE033 Industrial Control Cable
Pro-Meta unshielded flexible industrial control cable features 12 stranded bare copper conductors with a grey PVC jacket, rated for over a million flex cycles. It resists oils and UV damage, operating in temperature ranges from -30°C to +70°C dynamically and -40°C to +80°C statically. Designed for diverse applications including industrial automation, food processing, medical devices, automotive, defense, and aerospace, it offers excellent durability, flexibility, and chemical resistance. Its flexible design and robust construction make it ideal for demanding environments requiring reliable electrical performance and physical resilience.
ALPHA WIRE 470127YYGE033 Industrial Control Cable Specifications:
- Number of Conductors: 12 stranded bare copper
- Conductor Diameter: 0.75 mm (30/.177)
- Insulation Wall Thickness: 0.400 mm PVC
- Jacket Wall Thickness: 1.00 mm PVC
- Jacket Color: Grey
- Cable Twist: 6.3 Twists/meter
- Core Wrap: Nonwoven Polyester Tape, 25% Overlap
- Bending Radius: 10X outer diameter for occasional movement, 6X for fixed installation
- Operating Temperature Range: -30°C to +70°C (dynamic), -40°C to +80°C (static)
- Voltage Rating: 300/500V
- DCR (Resistance): 26 Ω/km at 20°C
- Certifications: IEC, EN 60228 Class 5, IEC 60332-1 Flame Retardant, UV Resistant
Buy the Buy Alpha Wire Control Cable Part Number 470127YY Online
Purchase the Alpha Wire control cable online to experience superior flexibility, durability, and resistance to oils and UV damage. Designed for versatile use in industrial automation, automotive, aerospace, and medical applications, this high-quality cable ensures long-lasting performance under extreme conditions. With a rugged PVC jacket and 12 copper conductors, it provides excellent electrical reliability and mechanical resilience. Buying online guarantees quick delivery, competitive prices, and access to technical support, making it the ideal choice for both professionals and engineers seeking dependable wiring solutions.
Order your Alpha Wire Series470127YY control cable today and ensure reliable electrical performance for demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470127YYGE033?
You can click on the BUY or RFQ button to purchase 470127YYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470127YYGE033?
You can download the 470127YYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470127YYGE033?
ALPHA WIRE
