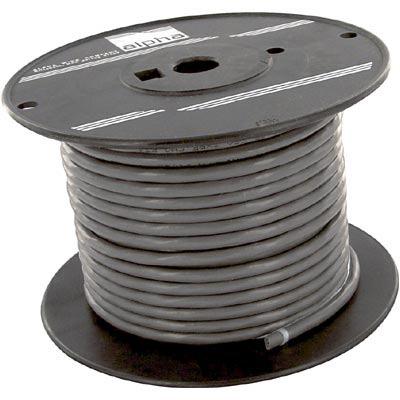

ALPHA WIRE 881812SL005 Communication Control Cable
The 881812 SL005 is a 100-foot unshielded communication and control cable with 12 stranded tinned copper conductors in 18 AWG wires, rated for 300V. It features a chrome-colored PVC insulation and a slate PVC jacket, ideal for low-noise environments. With a diameter suitable for applications demanding minimal interference, it supports high-performance data transmission. The cable can withstand a maximum pull tension of 151 pounds, has a jacket thickness of 0.81 mm, and complies with REACH regulation (EC 1907/2006). Suitable for audio, communications, networking, automation, sensing, security, and industrial applications.
ALPHA WIRE 881812SL005 Communication Control Cable Specifications:
- Conductor: 18 AWG, 16/30 TC
- Insulation: PVC, 0.016" wall, chrome-colored
- Jacket: PVC, slate-colored, 0.040" wall
- Construction: 12 stranded tinned copper conductors
- Voltage Rating: 300 V
- Maximum Pull Tension: 151 Lbs
- Temperature Range: -20 to 90°C
- Diameter: approximately 0.408-0.424 inches
- Capacitance: 33 pF/ft @ 1 kHz
- Inductance: 0.18 mH/ft
- Conductor DCR: 7.2 Ω/1000 ft @ 20°C
- Bend Radius: 10× cable diameter
- Cable Length Options: 1000 ft, 500 ft, 250 ft, 100 ft
- Safety Certifications: UL, CSA, CE, RoHS, REACH
Buy the Buy Alpha Wire Part Number 881812SL005 Online
Purchase the Alpha Wire 881812SL005 communication and control cable online now for reliable, high-quality data transmission in industrial, automation, networking, and security applications. Designed with 12 tinned copper conductors in 18 AWG, it provides excellent flexibility and durability. The cable features a PVC insulation and jacket for optimal performance within temperature ranges from -20°C to 90°C. Rated for 300V, with a maximum pull tension of 151 pounds, it complies with UL, CSA, RoHS, and REACH standards. Perfect for professional wiring solutions, order today to ensure seamless project execution.
Order your Alpha Wire 881812SL005 communication cable today and ensure reliable data transfer for industrial, automation, and networking projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 881812SL005?
You can click on the BUY or RFQ button to purchase 881812SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 881812SL005?
You can download the 881812SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 881812SL005?
ALPHA WIRE
