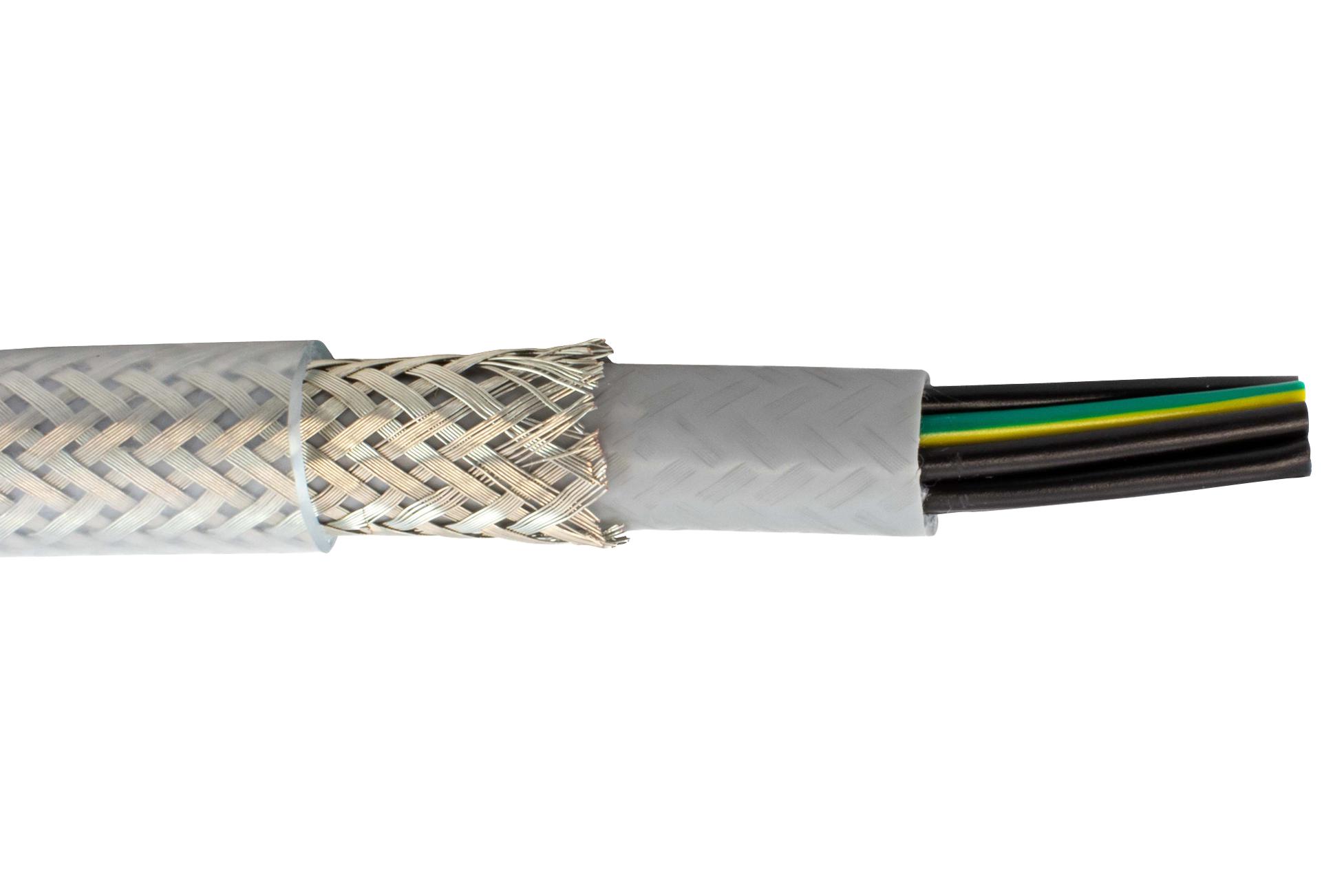

ALPHA WIRE 470515CYCL321 Industrial control cable
Pro-Met shielded flexible industrial control cable is built for demanding environments, featuring stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC jacket. Resistant to oils, UV damage, and suitable for diverse applications like automation, medical devices, automotive, and aerospace. It endures up to 1 million flex cycles, operates at -30°C to +70°C dynamically, and -40°C to +80°C statically. With a bending radius of 20 times the outer diameter for occasional movement and 6 times for fixed setups, this cable ensures high reliability in critical control systems.
ALPHA WIRE 470515CYCL321 Industrial control cable Specifications:
- Construction: Stranded bare copper conductors, tinned copper braid shield, transparent PVC outer jacket
- Voltage Rating: 300/500 V
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20× diameter (occasional movement), 6× diameter (fixed installation)
- Resistance: Yes
- Shielding: Tinned copper braid, 80% coverage
- Insulation: PVC
- Number of Conductors: 5 G 1.5 mm²
- Flex Cycles: Up to 1 million
- Certifications: CE, RoHS, REACH
- Environmental Resistance: Oil resistant, UV resistant
- Dimensions: Wall thickness varies, typical outer diameter approximately 7.7 mm
- Conductors: IEC 60228 Class 5, DIN VDE 0295 Class 5
- Flame Behavior: IEC 60332-1
Buy the Alpha Wire Series PRO-MET Shielded Industrial Control Cable: 470515CY
Purchase Alpha Wire 470515CY control cable online today and experience superior durability and flexibility in demanding industrial environments. Designed with stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC jacket, this cable withstands harsh conditions including oils and UV exposure. Suitable for automation, medical, automotive, and aerospace applications, it supports up to 1 million flex cycles. Its operating temperature range is -40°C to +80°C static and -30°C to +70°C dynamic, with a flexible bend radius ensuring safety and performance.
Buy Alpha Wire 470515CY control cable now and ensure reliable operation in harsh environments with high flex cycles and excellent resistance features.
