ALPHA WIRE 5275CSL005 Shielded Industrial Cable
The 5275C SL005 is a 100-foot, sunlight-resistant, high-performance SupraShield® cable designed for demanding environments. It features stranded tinned copper conductors and a premium semi-rigid PVC insulation, with a specialized PVC jacket for easier installation in tight spaces. The cable is shielded with at least 25% overlap aluminum/polyester/aluminum foil and a tinned copper braid providing 70% coverage, along with a drain wire of the same gauge. Rated for UL oil resistance standards, it includes a nylon ripcord, suitable for mining, oil & gas, and industrial applications. It withstands temperatures from -35°C to 105°C, with a maximum tensile strength of 43 pounds, an inductance of 0.19 µH/ft, and a characteristic impedance of 1000 ft.
ALPHA WIRE 5275CSL005 Shielded Industrial Cable Specifications:
- Conductor: Tinned Copper, 24 AWG, stranded
- Insulation: Semi-rigid PVC, 0.010 inch wall
- Jacket: PVC, 0.032 inch wall, color options include Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Shielding: Aluminum/Polyester/Aluminum foil, 25% overlap, Tinned Copper Braid with 70% coverage
- Drain Wire: 24 AWG Tinned Copper
- Tensile Strength: 43 pounds maximum
- Temperature Range: -35°C to 105°C
- Minimum Bend Radius: 10x cable diameter
- Voltage Rating: 300 V
- Characteristic Impedance: 1000 ohms/ft
- Inductance: 0.19 µH/ft
- Mutual Capacitance: 25 pF/ft @1 kHz
- Ground Capacitance: 45 pF/ft @1 kHz
- DCR (Conductor): 26 Ω/1000 ft
- DCR (Shield): 3.2 Ω/1000 ft

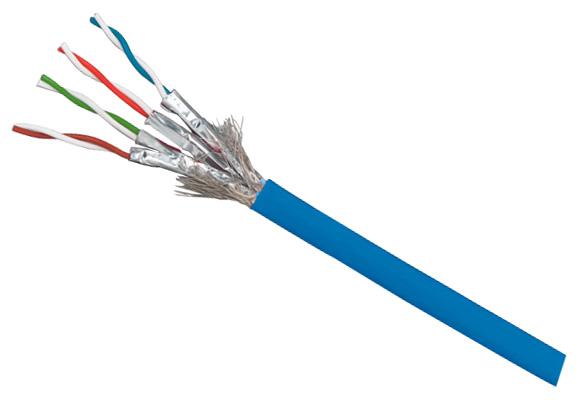

Buy the Buy AlphaWire 5275C Part Number 5275CSL005 Online
Purchase the AlphaWire 5275CSL005 shielded industrial cable online today. This 100-foot, sunlight-resistant cable features high shielding efficiency, tinned copper conductors, and a semi-rigid PVC insulation. It is designed for demanding industrial environments such as mining, oil & gas, and manufacturing. With a maximum tensile strength of 43 pounds and operating from -35°C to 105°C, it offers reliable performance. The cable includes a nylon ripcord, UL oil resistance, and 70% braid coverage to ensure superior noise immunity and durability in harsh conditions.
Get AlphaWire 5275CSL005 today—built for demanding environments with high shielding and durability for industrial, mining, and oil & gas applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5275CSL005?
You can click on the BUY or RFQ button to purchase 5275CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5275CSL005?
You can download the 5275CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5275CSL005?
ALPHA WIRE
