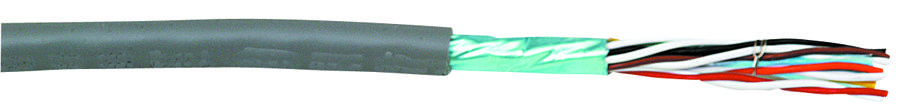

ALPHA WIRE 5493CSL005 Shielded Signal Cable
This shielded cable assembly features a PVC insulation with a 0.010-inch wall thickness and a 0.032-inch PVC jacket on a 24 AWG tinned copper conductor. Designed for signal and low-voltage applications, it includes nonwoven polyester tape and aluminum/Mylar shielding for EMI protection, with a flexible bend radius of 10 times the cable diameter. It complies with UL, CSA, CE, and RoHS standards, rated for 300V, operating from -35°C to 105°C, and is suitable for environments requiring durable and reliable low-voltage wiring solutions.
ALPHA WIRE 5493CSL005 Shielded Signal Cable Specifications:
- Conductor: 24 (7/32) AWG Tinned Copper
- Insulation: 0.010 inch wall, PVC, Semi Rigid
- Jacket: 0.032 inch wall, PVC, Nominal, available in multiple colors
- Shielding: Alum/Mylar tape with 25% overlap, foil facing in
- Overall diameter: approximately 0.228 to 0.241 inches
- Twists per foot: 6.9 to 9.6 twists
- Temperature Range: -35°C to +105°C
- Voltage Rating: 300 V
- Mutual Capacitance: 25 pF/ft @ 1 kHz
- Ground Capacitance: 45 pF/ft @ 1 kHz
- Characteristic Impedance: 769 Ohms
- Inductance: 0.19 μH/ft
- Conductor DCR: 26 Ω/1000 ft
- Shield DCR: 15.9 Ω/1000 ft
- Bend Radius: 10 x cable diameter
- Pull tension: 24.6 lbs maximum
- Compliance: UL, CSA, CE, RoHS, REACH, California Prop 65
Buy the Alpha Wire Series Shielded Signal Cable: 5493C
Order the Alpha Wire Shielded Signal Cable designed with premium PVC insulation and jacket, aluminum/Mylar shielding for EMI protection, rated for 300V, and operating from -35°C to 105°C. Ideal for signal control, low-voltage applications, and environments requiring durability and reliability. This cable features a flexible bend radius, UL, CSA, CE, and RoHS compliance, making it suitable for demanding industrial and electronic installations. Purchase now online for fast delivery and expert support.
Get Alpha Wire 5493C today—built for precision and long-lasting durability in shielded low-voltage wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5493CSL005?
You can click on the BUY or RFQ button to purchase 5493CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5493CSL005?
You can download the 5493CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5493CSL005?
ALPHA WIRE
