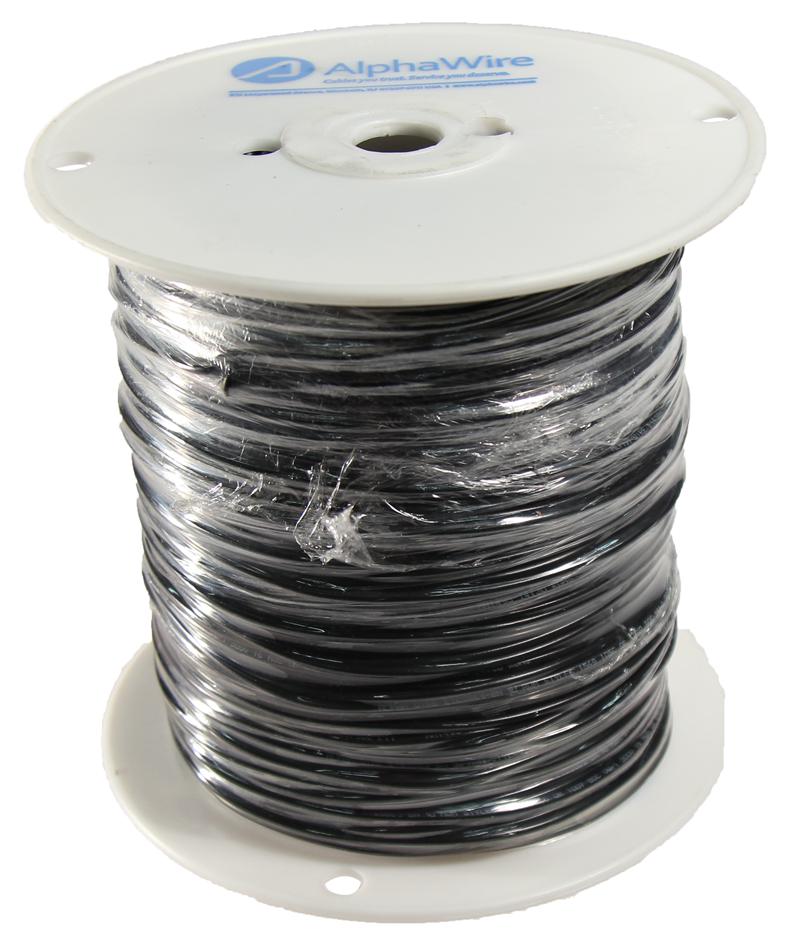

ALPHA WIRE 5854GR005 Hook-Up Wire
The ALPHA WIRE 5854 GR005 is a versatile hook-up wire designed for a broad range of industrial applications. Constructed with 19/36 AWG stranded tinned copper conductor and a durable PTFE insulation, this wire provides excellent electrical performance and resistance to harsh environments. It is suitable for use in applications requiring flexibility, high-temperature resistance (-60°C to 200°C), and reliable electrical insulation. The wire's RoHS compliance ensures adherence to environmental regulations, making it a sustainable choice for modern electronics. Available in various colors, it is ideal for internal wiring in appliances, electronics, and machinery.
ALPHA WIRE 5854GR005 Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 24 (19/36) AWG SPC
- Insulation: 0.010" Wall, Nom. PTFE
- Insulation Diameter: 0.044+/- 0.004
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET
- UL Style: AWM/STYLE 1213
- UL Temperature Rating: 105°C
- UL VW-1 Rating: VW-1
- Military Spec: MIL-W-16878/4 (Type E)
- Military Temperature Rating: 200°C
- Military Voltage Rating: 600 VRMS
- Other Spec: NEMA HP3-EXBEE
- Temperature Range: -60 to 200°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 3.7 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.05 µH/ft, Nominal
- Conductor DCR: 22.3 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 2 x 1.9 Max. 3 separate pieces; Min length/piece 100 FT
- Packaging 100 FT: 2.75 x 1 x 1.125 Continuous length
- RoHS Compliance: Compliant
- REACH SVHC Declaration: Does not contain SVHC in excess of 0.1% mass
- California Proposition 65: Compliant
