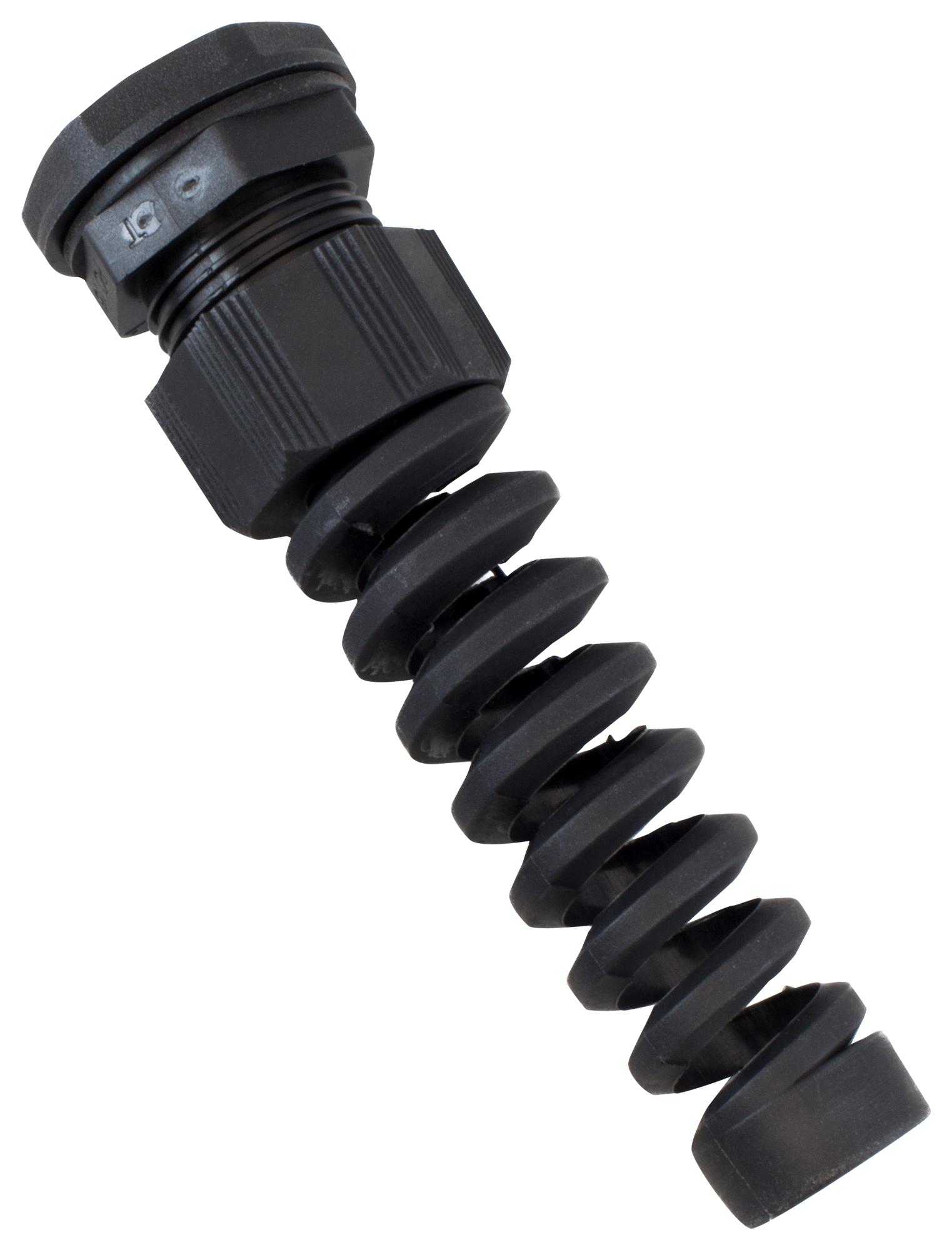

ALPHA WIRE PMS16BK080 Cable Gland
The PMS16 BK080 Alpha Fit® Flexible Spiral Design Metric Cable Gland offers reliable cable strain relief and environmental protection with a flexible spiral design. Made from durable polyamide 6 in black, it features rubber seals to prevent water ingress, rated IP68 (5 bar for 30 minutes) and IP66 for environmental sealing. The gland comes with a locknut and gasket for comprehensive sealing, is UL-listed (514), CSA-certified (C22.2), and rated UL94V-2 for flammability. Operating temperature ranges from -20°C to +100°C permanently, and -30°C to +150°C intermittently, ideal for industrial automation, electrical, and renewable energy systems.
ALPHA WIRE PMS16BK080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Black, RAL 9005
- Protection Class: IP 68 5 Bar for 30 min, IP 66
- Flammability: UL94V-2
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: Metric according to EN 60423 sw
- Size Range: 16 mm, Clamping Range: 5.0-10.0 mm
- Thread Length: 10 mm
- Outer Diameter: 22 mm
- Spanner Width: 22 mm
- Part Number: PMS16BK080
Buy the Buy Alpha Wire PMS16BK080 Part Number PMS16BK080 Online
Purchase the Alpha Fit® Flexible Spiral Design Metric Cable Gland online today. It provides excellent strain relief, environmental protection, and versatile sealing solutions. Made from durable polyamide 6, it features rubber seals that resist water ingress, rated IP68 and IP66 for outdoor and industrial environments. UL-listed and CSA-certified, with a flammability rating of UL94V-2, it operates effectively across temperature ranges from -20°C to +150°C. Ideal for automation, electrical systems, and renewable energy installations, ensuring safety and durability in demanding applications.
Get Alpha Wire PMS16BK080 today—designed for high-quality cable management and long-lasting environmental sealing.
