ALPHA WIRE 5858BK005 Hook-up Wire

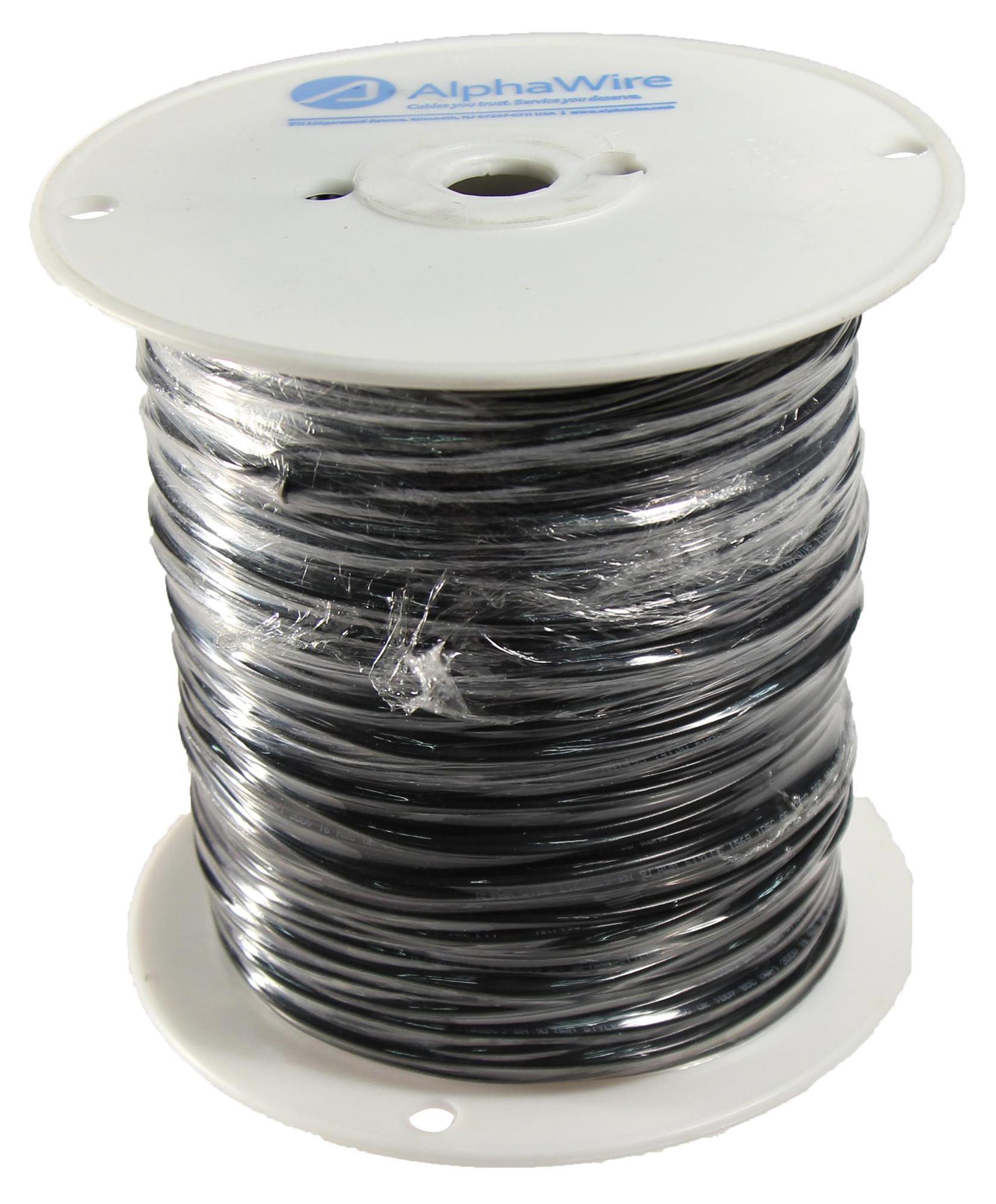

The 5858 BK005 is a 100-foot, 16 AWG black hook-up wire featuring a stranded silver-plated copper conductor and PTFE insulation. It complies with MIL-DTL-16878/4 type E standards, offering excellent durability against wear, abrasion, oil, solvents, and chemicals. Suitable for demanding applications, it provides stable electrical properties, ease of handling, stripping, and termination. Operating from -60°C to 200°C, it withstands a maximum pull tension of 19.1 pounds. Recognized under NEMA HP3 type standards, this wire is ideal for automation, aerospace, military, and industrial environments requiring reliable electrical performance.
ALPHA WIRE 5858BK005 Hook-up Wire Specifications:
- Conductor Material: Silver-plated copper strands
- Conductor Gauge: 16 AWG
- Insulation Material: PTFE (Teflon)
- Insulation Thickness: 0.012 inches
- Wall Thickness: 0.012 inches
- Color: Black
- Temperature Range: -60°C to 200°C
- Voltage Rating: 600 V
- Maximum Pull Tension: 19.1 pounds
- Standards Compliance: MIL-DTL-16878/4 Type E, UL JAWM/STYLE 1213, VW-1, NEMA HP3-EXBJE
- RoHS and REACH compliant
- Maximum Lengths per Spool: 100 ft, 500 ft, 1000 ft depending on packaging
Buy the AlphaWire 5858BK005 – Reliable Hook-up Wire for Industrial Applications
Purchase the AlphaWire 5858BK005 hook-up wire online today for your demanding industrial, aerospace, and military projects. This 100-foot black wire features 16 AWG stranded silver-plated copper conductors and PTFE insulation, ensuring excellent electrical stability and resistance to harsh conditions. Its high temperature tolerance up to 200°C and compliance with MIL-DTL-16878/4 Type E standards make it ideal for aerospace, automation, and military applications. Built for durability and precision, this wire guarantees reliable performance, easy handling, and secure terminations for professional use.
Get AlphaWire 5858BK005 today—built for precision, high temperature tolerance, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5858BK005?
You can click on the BUY or RFQ button to purchase 5858BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5858BK005?
You can download the 5858BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5858BK005?
ALPHA WIRE
