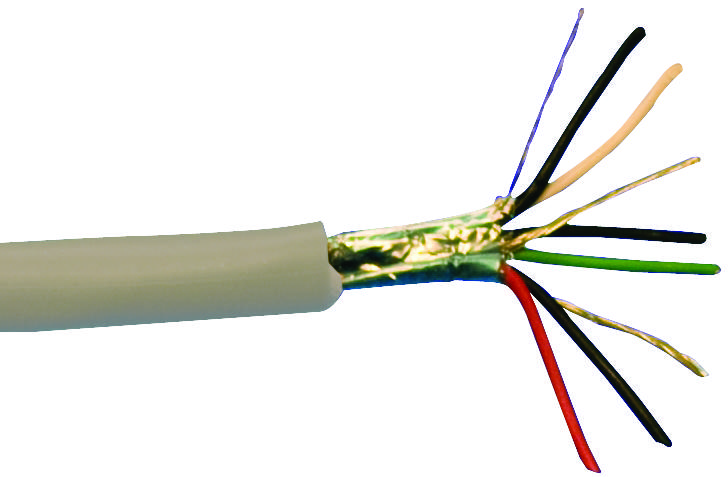

ALPHA WIRE 6000CSL002 Shielded Control Cable
The Alpha Wire 6000C is a shielded, multi-conductor cable designed for optimal electrical performance and flexibility in industrial applications. Manufactured with 22 AWG copper conductors, it features a durable PVC jacket, foil shielding with drain wire, and precise color-coding for easy identification. Rated for -20°C to 75°C, this cable offers excellent mechanical flexibility, low inductance, and low conductor resistance. Suitable for commercial, control, and instrumentation wiring, it complies with RoHS and UL standards, ensuring safety and environmental compliance for demanding electrical environments.
ALPHA WIRE 6000CSL002 Shielded Control Cable Specifications:
- Conductor: 22 AWG copper
- Insulation: PVC, 0.047 inch wall thickness
- Jacket Color: Slate
- Shielding: Foil with drain wire, 25% overlap
- Temperature Range: -20°C to +75°C
- Bend Radius: 10X cable diameter
- Pull Tension: 45 lbs maximum
- Voltage Rating: 300 V
- Conductors: 3 pairs, twisted
- Wire Count: 3 groups of 2 conductors
- Diameter: 0.278 inches (max 0.292)
- UL and CSA certified for electrical safety
- RoHS compliant and environmentally safe
- Construction: Multi-core with foil shield and drain wire
- Application: Industrial control, instrumentation, commercial wiring
Buy the Buy Alpha Wire Part Number 6000C Online
Enhance your electrical installations with Alpha Wire’s shielded control cable, model 6000C. Crafted with 22 AWG copper conductors, a durable PVC jacket, and foil shielding, it ensures reliable performance and easy identification. Rated for temperatures from -20°C to 75°C, this versatile cable meets UL, CSA, and RoHS standards, making it ideal for industrial control, instrumentation, and commercial wiring. Purchase online now for fast delivery and ensure your projects benefit from superior quality and compliance.
Get Alpha Wire 6000C today—designed for flexible, shielded electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6000CSL002?
You can click on the BUY or RFQ button to purchase 6000CSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6000CSL002?
You can download the 6000CSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6000CSL002?
ALPHA WIRE
