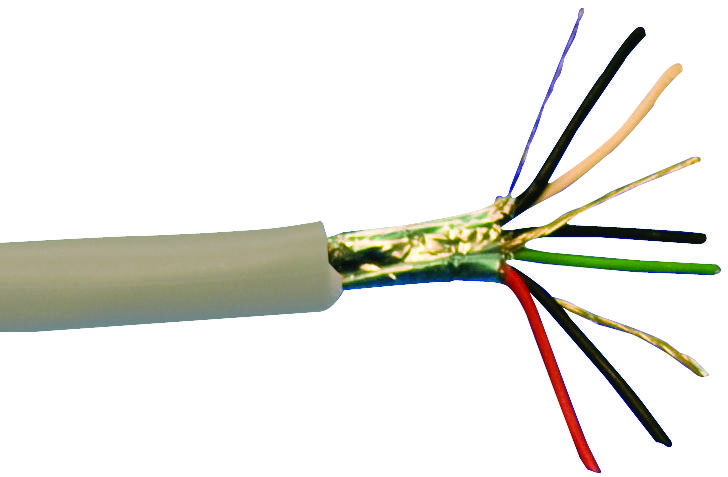

ALPHA WIRE 6022CSL001 Shielded Electrical Cable
This shielded cable features 22 AWG tinned copper conductors, with a PVC jacket and foil/foil tape shielding for industrial electrical applications. It is UL, CSA, CE, and RoHS compliant, designed for durable performance in environments requiring high flexibility and reliable signal integrity. With temperature ratings from -20°C to 75°C, a bend radius of 10 times the cable diameter, and a maximum pull tension of 445 lbs, this cable is suitable for complex wiring and control systems. It offers low capacitance and impedance, ensuring optimal electrical performance and safety compliance in industrial settings.
ALPHA WIRE 6022CSL001 Shielded Electrical Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Insulation: 0.010" Wall, Nom. FRPP
- Jacket: 0.063" PVC, Slate color
- Shield: Foil Free Alum/Mylar Tape, 25% Overlap, Foil Facing In
- Twists: 8 Twists/foot (pair), 1.4 Twists/foot (components)
- Max Temperature: 75°C
- Min Temperature: -20°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 445 Lbs, Max
- Voltage Rating: 300 V
- Characteristic Impedance: 609 Ohms
- Inductance: 0.18 μH/ft
- Mutual Capacitance: 28 pF/ft
- Ground Capacitance: 50 pF/ft
- Conductor DCR: 16.6 Ω/1000 ft
- Shield Resistance: 14.4 Ω/1000 ft
- Length Options: 100 ft, 500 ft, 1000 ft
Buy the Buy Alpha Wire Shielded Electrical Cable Part Number 6022CSL001 Online
Purchase Alpha Wire 6022C shielded electrical cable online today and ensure your industrial wiring projects benefit from high-quality, UL, CSA, CE, and RoHS certified performance. Designed with 22 AWG tinned copper conductors, flexible PVC jacket, and foil shielding, this cable guarantees durability and optimal signal integrity in demanding environments. With a temperature range of -20°C to 75°C and a maximum pull tension of 445 lbs, it is perfect for complex automation, control, and wiring tasks. Order now for fast delivery and reliable operation.
Buy Alpha Wire 6022C now and experience unmatched reliability and performance in industrial wiring with flexible, shielded, and compliant cabling solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6022CSL001?
You can click on the BUY or RFQ button to purchase 6022CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6022CSL001?
You can download the 6022CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6022CSL001?
ALPHA WIRE
