ALPHA WIRE 652602SL005 Control Cable
Flexible control cable featuring 26 AWG bare copper conductors and PVC insulation, designed for electronic equipment and industrial automation. It complies with UL, CSA, CE, RoHS, and REACH standards, ensuring environmental safety and regulatory compliance. Rated for 600V and temperature ranges from -40°C to 90°C static, -5°C to 90°C dynamic, this cable offers excellent electrical properties, including a capacitance of 18.9 pF/ft and characteristic impedance of 1209 ohms. Its rugged construction makes it suitable for demanding control and signal transmission applications in various industrial environments.
ALPHA WIRE 652602SL005 Control Cable Specifications:
- Conductor: 26 AWG bare copper
- Insulation: PVC, 0.022" wall, oil resistant, flame-retardant UL 94V-0
- Jacket: PVC, color black, 0.035" wall
- Voltage Rating: 600 V
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Capacitance: 18.9 pF/ft @1 kHz
- Characteristic Impedance: 1209 ohms
- Inductance: 0.26 µH/ft
- Conductor DCR: 38 ohms/1,000 ft at 20°C
- Bend radius: 5X cable diameter
- Pull tension: Max 4.4 lbs
- Physical Dimensions: Reel lengths available - 1000 ft (12 x 10 x 5 inches), 500 ft (12 x 4.5 x 3.5 inches), 100 ft (6.5 x 4 x 2.5 inches), spool dimensions may vary

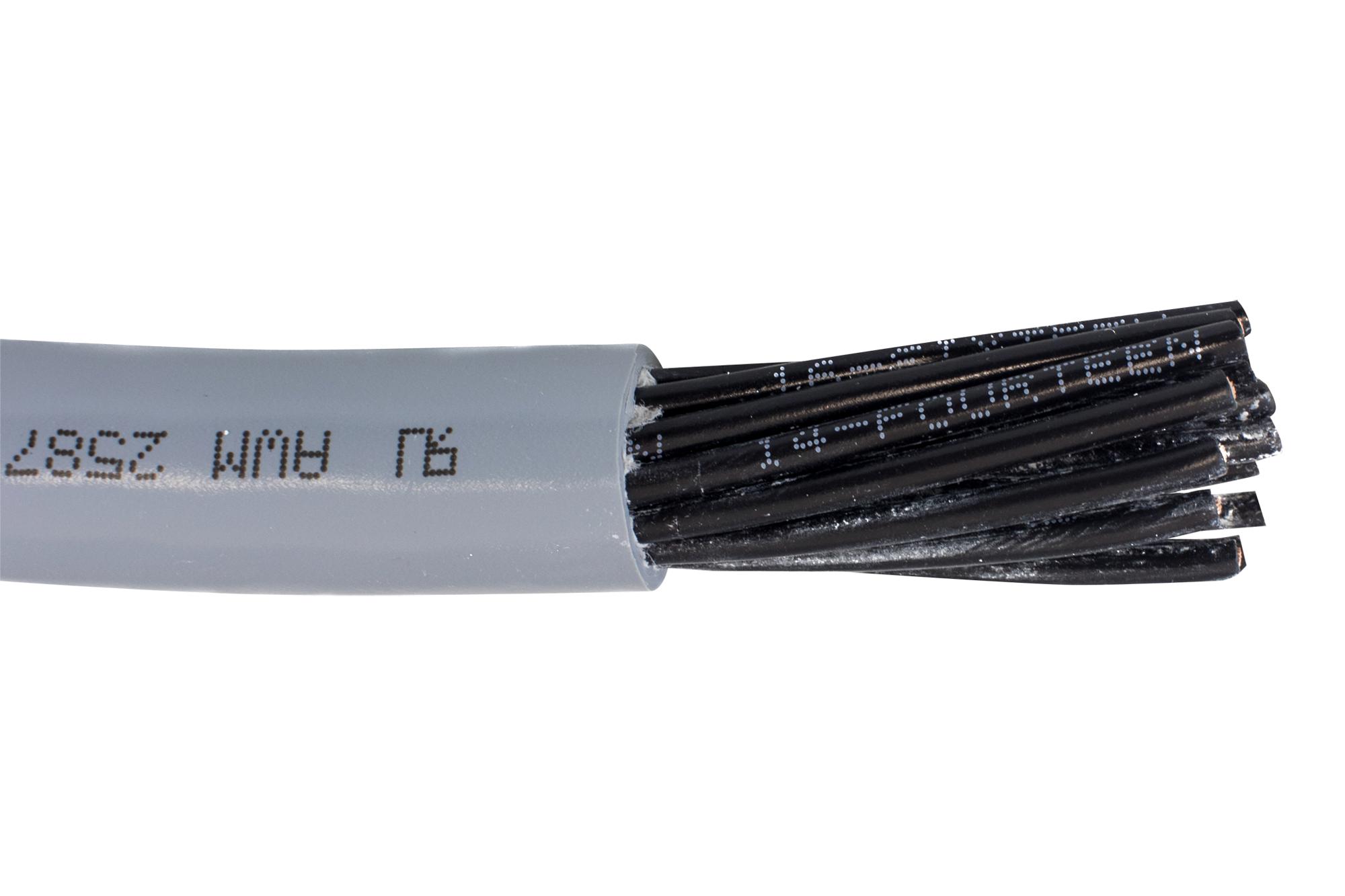

Buy the Buy Alpha Wire Control Cable Part Number 652602 Online
Purchase Alpha Wire control cable online for robust performance and strict compliance with environmental standards. Featuring UL and CSA approvals, it is ideal for industrial control systems. Rated for 600 volts and operating within -40°C to 90°C temperature range, this cable ensures durability and reliable electrical properties. Its PVC insulation and jacket provide oil resistance and flame retardance, suited for demanding environments. Trust Alpha Wire’s quality control and regulatory compliance when ordering online for quick, secure delivery and consistent performance in your projects.
Get Alpha Wire 652602 today—designed for reliable control and signal transmission in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652602SL005?
You can click on the BUY or RFQ button to purchase 652602SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652602SL005?
You can download the 652602SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652602SL005?
ALPHA WIRE
