ALPHA WIRE 6025CSL005 Shielded Control Cable

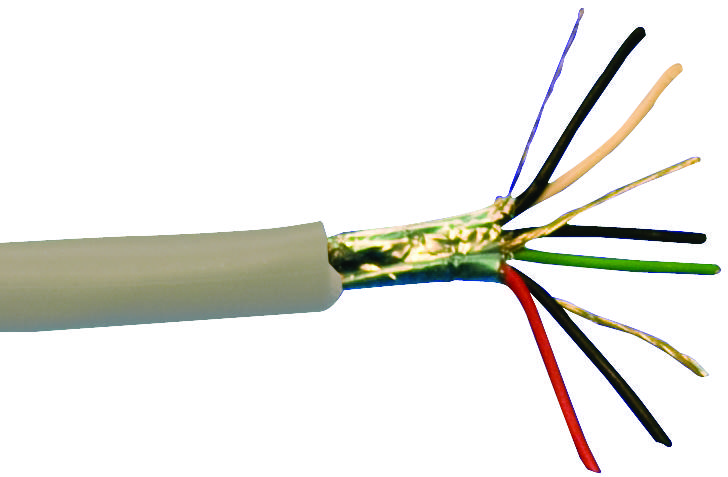

The 6025C shielded cable from Alpha Wire features 18 AWG conductors with a PVC insulation and a foil and braid shield for noise reduction and durability. Designed for power and control circuits, it handles voltage ratings up to 300 V and maintains excellent mechanical and electrical properties over a temperature range of -20°C to 75°C. The cable's specifications include a 0.063-inch wall thickness, twisted pairs, and compliance with UL, CSA, and CE standards, making it suitable for industrial, control, and instrumentation applications requiring reliable signal integrity and shielding effectiveness.
ALPHA WIRE 6025CSL005 Shielded Control Cable Specifications:
- Conductors: 18 AWG, 16/30 stranding
- Insulation: PVC, 0.063 inches wall thickness
- Shielding: Foil and braid shield with drain wire
- Temperature Range: -20°C to 75°C
- Voltage Rating: 300 V
- Impedance: 599 ohms
- Inductance: 0.18 μH/ft
- Mutual Capacitance: 26 pF/ft @1 kHz
- Ground Capacitance: 47 pF/ft @1 kHz
- DCR: 7.3 Ω/1000 ft
- Shield Resistance: 9.1 Ω/1000 ft
- Physical Dimensions: Diameter approximately 0.16 inches, length options 100, 500, 1000 ft
- Compliance: UL, CSA, CE marking, RoHS, REACH, California Proposition 65
- Environmental Standards: AWM 2493 60°C, 300 V, cULus, cMPG, FT4 flame rating
Buy the Alpha Wire Series Shielded Cable: 6025C
Purchase the Alpha Wire 6025C shielded control cable online now for reliable noise reduction and signal integrity in industrial environments. This durable cable features foil and braid shielding, 18 AWG conductors, PVC insulation, and complies with UL, CSA, and CE standards, ensuring safety and performance across various applications. Ideal for power, control, and instrumentation tasks, it offers excellent electrical properties, flexibility, and long-term durability. Buy online today and secure premium quality, fast delivery, and competitive prices for your projects.
Order your Alpha Wire Series 6025C shielded cable today and ensure your industrial and control projects are protected with dependable shielding and high-quality performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6025CSL005?
You can click on the BUY or RFQ button to purchase 6025CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6025CSL005?
You can download the 6025CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6025CSL005?
ALPHA WIRE
