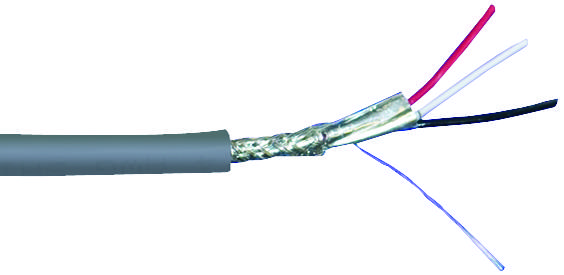

ALPHA WIRE 6342SL001 Shielded Signal Cable
The shielded cable assembly with part number 6342 includes a 22 AWG twisted copper conductor insulated with 0.010-inch PVC, featuring aluminum/mylar shielding with 25% overlap, and a PVC jacket with 0.032-inch wall thickness. Designed for low-voltage applications, it offers a temperature range of -20°C to 80°C, a maximum voltage rating of 300V, and excellent electrical properties including capacitance and inductance specifications. Suitable for control, instrumentation, and signal transmission, this cable meets UL, CSA, and RoHS compliance standards, ensuring safety and environmental responsibility.
ALPHA WIRE 6342SL001 Shielded Signal Cable Specifications:
- Conductor: 22 AWG TC
- Insulation: 0.010" PVC wall
- Shield: Alum/Mylar, 25% overlap
- Drain wire: 24 AWG TC
- Braid: TC, 65% coverage
- Jacket: 0.032" PVC wall
- Temperature range: -20°C to 80°C
- Voltage rating: 300 V
- Capacitance: 36 pF/ft @1 kHz
- Ground capacitance: 65 pF/ft @1 kHz
- Inductance: 0.18 μH/ft
- DCR Conductor: 16.4 Ω/1000 ft @20°C
- Outer diameter: approximately 0.241" to 0.253"
- Bend radius: 10X cable diameter
- Pull tension: 40 lbs maximum
- Lengths available: 1000 ft, 500 ft, 100 ft
Buy the AlphaWire Series 6342 Shielded Signal Cable: 6342SL001
Order the AlphaWire shielded signal cable 6342SL001 online today for high-quality shielding and insulation designed for control, instrumentation, and low-voltage electrical systems. This cable features a durable PVC jacket, aluminum/mylar shielding with 25% overlap, and a 22 AWG copper conductor, providing excellent electrical performance and environmental compliance. With UL, CSA, and RoHS certifications, it ensures safety and reliability in demanding industrial environments. Buy now to enhance your electrical installations with dependable, UL-listed shielded cable designed for longevity and performance.
Buy AlphaWire 6342SL001 now and experience reliable shielded signal transmission ideal for control and instrumentation applications.
