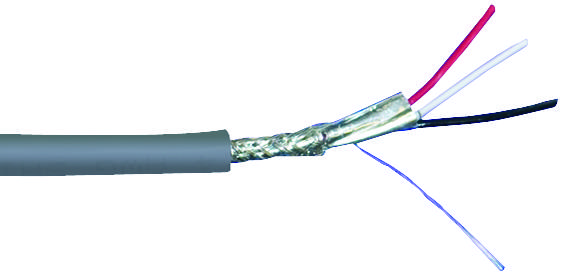

ALPHA WIRE 6356SL005 Shielded Computer Cable
This shielded computer cable features 24 AWG twisted conductors with polyethylene foam insulation and a PVC jacket, suitable for low-voltage applications. It complies with UL, CSA, CE, and RoHS standards, has a voltage rating of 300 V, and withstands temperatures from -20°C to 80°C. The cable's construction includes alum/mylar shielding with 65% braid coverage, ensuring excellent EMI protection. Available in various lengths, the cable provides reliable electrical performance with low capacitance and resistance, ideal for sensitive electronic and control systems in industrial environments.
ALPHA WIRE 6356SL005 Shielded Computer Cable Specifications:
- Conductor: 24 AWG TC
- Insulation: 0.016" Polyethylene Foam
- Jacket: 0.035" PVC
- Shield: Alum/Mylar Tape, 25% Overlap, Braid TC, 65% Cover
- Voltage Rating: 300 V
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 36 Lbs
- Mutual Capacitance: 12 pF/ft @ 1 kHz
- Ground Capacitance: 22 pF/ft @ 1 kHz
- Conductor DCR: 26.9 / 1000 ft @ 20°C
- Shield DCR: 4 Ω / 1000 ft @ 20°C
- Flange Dimensions: 16 x 11 x 8 inches (1000 ft spool)
- Conductor Material: Copper Alloy
- Certifications: UL (Style 2919), CSA (FT1), CE RoHS compliant
- Environmental: RoHS 2, REACH compliant
Buy the AlphaWire 6356 – Reliable Shielded Computer Cable for Industrial Applications
Buy the AlphaWire 6356 shielded computer cable online today and guarantee high-quality, low-voltage connections for your industrial, automation, or control projects. This cable offers excellent EMI protection with alum/mylar shielding and a braid cover, ensuring minimal interference and reliable signal integrity. Its polyethylene foam insulation and PVC jacket make it durable and suitable for temperature ranges from -20°C to 80°C. With UL, CSA, CE, and RoHS certifications, it adheres to strict safety and environmental standards, making it the ideal choice for professional electronic installations.
Order your AlphaWire 6356 shielded computer cable today and ensure reliable data transmission in your industrial and control systems.
