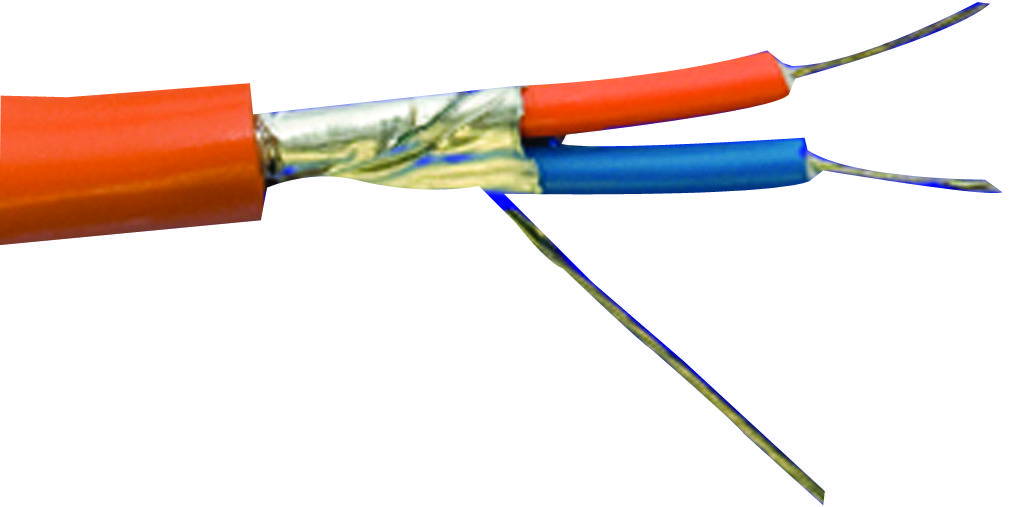

ALPHA WIRE 6461OR005 Shielded Fieldbus Cable
This Alpha Wire shielded fieldbus cable with part number 6461 features a durable 0.050-inch PVC jacket, 22 AWG Tinned Copper conductors, and a copper drain wire. Designed for industrial automation, it supports a temperature range of -40 to 75°C, with a voltage rating of 300 V. The cable has 2.8 twists per foot, a foil shield with alum/mylar tape, and a ripcord for easy stripping. Compliant with UL, CSA, CE, and RoHS standards, it ensures reliable performance in industrial environments.
ALPHA WIRE 6461OR005 Shielded Fieldbus Cable Specifications:
- Jacket Material: PVC
- Jacket Wall Thickness: 0.050 inch
- Conductor Material: Tinned Copper
- Conductor Size: 22 AWG
- Shield Type: Aluminium/Mylar Tape, 25% Overlap
- Drain Wire: 20 AWG Tinned Copper
- Twist Rate: 2.8 twists/foot
- Temperature Range: -40 to 75°C
- Voltage Rating: 300 V
- Impedance: 150 Ω ± 15
- Velocity of Propagation: 78%
- Mutual Capacitance: 16 pF/ft @1 kHz
- Ground Capacitance: 3.3 pF/1000 ft @20°C
- Attenuation Max: 10 dB/100 ft
- Max Current per Conductor: 2.5 A @30°C
- Connector Compatibility: Fieldbus applications
Buy the Alpha Wire 6461 – Reliable Shielded Fieldbus Cable for Industrial Applications
Purchase Alpha Wire 6461 shielded fieldbus cable online for your industrial automation needs. Featuring 22 AWG tinned copper conductors, durable PVC jacket, alum/mylar foil shield, and a drain wire, this cable ensures optimal signal integrity. Its flexibility supports installation in tight spaces, and compliance with UL, CSA, CE, and RoHS standards guarantees safety and environmental responsibility. Perfect for controlling and data transmission in industrial environments, this reliable cable offers excellent electrical performance, durability, and long-lasting operation for automation systems.
Get Alpha Wire 6461 today—designed for industrial automation with durable PVC insulation, foil shield, and RoHS compliance for reliable performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6461OR005?
You can click on the BUY or RFQ button to purchase 6461OR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6461OR005?
You can download the 6461OR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6461OR005?
ALPHA WIRE
