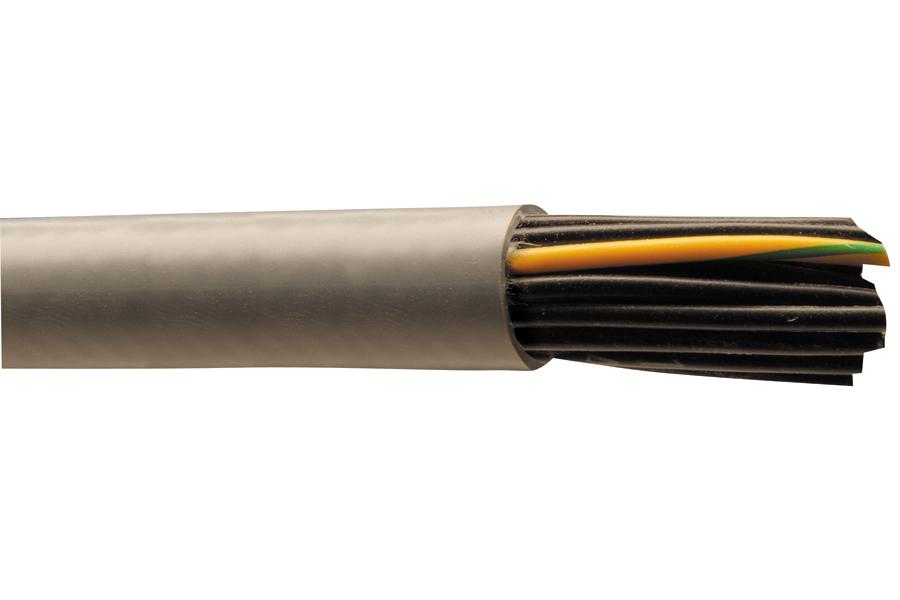

ALPHA WIRE 65018SL005 Control Cable
The product is a flexible control cable with 18 conductors made of 20 AWG bare copper wire, insulated with PVC, and rated for 600V. It features high oil resistance, is UL and CSA approved, and complies with RoHS and REACH standards. The cable has a temperature range from -40°C to 90°C static and -5°C to 90°C dynamic, with a bend radius of 5 times the cable diameter. Suitable for industrial control and automation applications, it is available in lengths of 100, 500, and 1000 feet and is marked with alphanumeric identifiers for ease of identification.
ALPHA WIRE 65018SL005 Control Cable Specifications:
- Conductor Material: Bare Copper
- Conductor Size: 20 AWG
- Number of Conductors: 18
- Insulation Wall Thickness: 0.022 inches
- Insulation Material: PVC
- Jacket Wall Thickness: 0.055 inches
- Jacket Material: PVC, Oil Resistant
- Jacket Color: Slate
- Jacket Thickness: 0.055 inches
- Operating Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Maximum Pull Tension: 141 Lbs
- Voltage Rating: 600 V
- Capacitance: 27 pF/ft @1 kHz
- Inductance: 0.21 μH/ft
- Conductor Resistance: 10.8 Ω/1000 ft @20°C
- Bend Radius: 5X cable diameter
- Cable Lengths: 100 ft, 500 ft, 1000 ft
- Certifications: UL Listed, CSA Certified, RoHS Compliant, REACH compliant
- Environmental Standards: CE Low Voltage Directive 2014/35/EC, VDE 0472
Buy the AlphaWire Series 65018 Control Cable: 65018SL005
Secure your automation needs by ordering the AlphaWire Series 65018 control cable online today. This premium, flexible cable features 18 copper conductors, rated for 600V with PVC insulation, making it ideal for industrial applications. It meets UL, CSA, RoHS, and REACH standards, ensuring safety and environmental compliance. Available in lengths of up to 1000 feet, this durable cable offers excellent resistance to oil, temperature variations, and mechanical stress. Purchase now for fast shipping and dependable performance in your manufacturing or automation systems.
Order your AlphaWire Series 65018 control cable today and ensure reliable performance in your industrial automation and control projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65018SL005?
You can click on the BUY or RFQ button to purchase 65018SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65018SL005?
You can download the 65018SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65018SL005?
ALPHA WIRE
