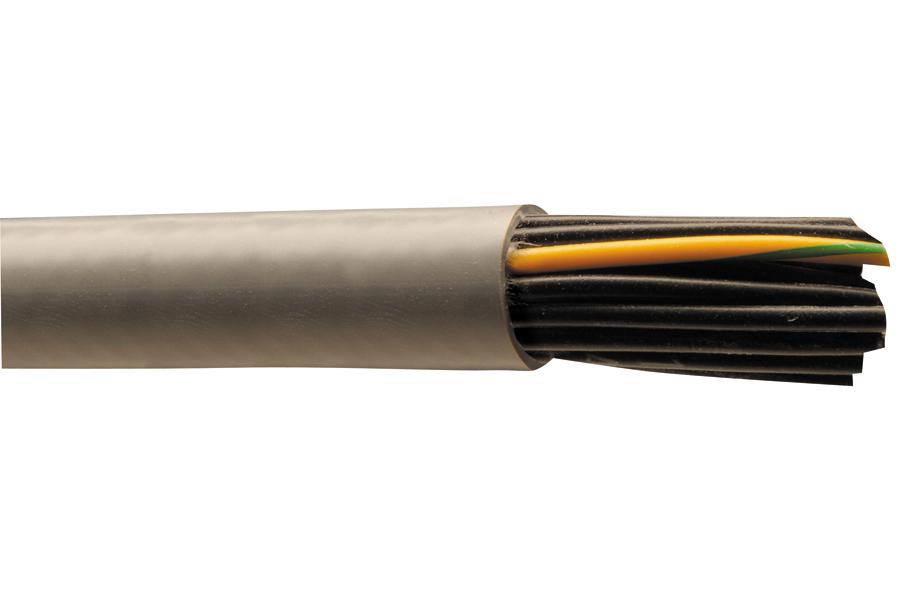

ALPHA WIRE 65804SL005 Control Cable
The 65804-SL005 is a flexible, 4-conductor control cable designed for demanding industrial applications. Featuring 18 AWG bare copper conductors with lubricated PVC insulation and an oil-resistant slate PVC jacket, it is part of the AlphaWire Xtra-Guard series. Suitable for high-flex, high-torsion, and continuous-flex environments, the cable provides liquid-tight installation meeting IP67 or NEMA 6 standards and conforms to NFPA 79 for industrial machinery. Key specifications include a maximum pull tension of 50 lbs, capacitance of 30 pF/ft at 1 kHz, inductance of 0.19 µH/ft, and DC resistance of 6.7 Ω/1000 ft at 20°C, ensuring performance and durability in automation, robotics, and process control systems.
ALPHA WIRE 65804SL005 Control Cable Specifications:
- Number of Conductors: 4
- Conductor Size: 18 AWG (16/30) bare copper
- Insulation Wall Thickness: 0.022" PVC
- Jacket Wall Thickness: 0.035" PVC, oil-resistant, slate color
- Jacket Material: PVC (oil resistant)
- Jacket Color: Slate
- Twist Rate: 4.8 twists per foot (minimum)
- Outer Diameter: 0.296 inches (+/- 0.017)
- Continuous Lengths: 1000 ft, 500 ft, 100 ft
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Pull Tension: Maximum 50 lbs
- Capacitance: 30 pF/ft at 1 kHz
- Inductance: 0.19 μH/ft
- DC Resistance: 6.7 Ω/1000 ft at 20°C
- Compliance: UL Style 2587 90°C / 600V, CSA AWG I/II AB 90°C / 600V, VDE 0472, EN 60332-1-2
- Environmental: RoHS 2, REACH compliant
- Applicable standards: IP67/NEMA 6 liquid-tight, NFPA 79
- Connector Applications: High-flex, industrial automation, robotics, process control
Buy the Buy AlphaWire Part Number 65804SL005 Online
Purchase the AlphaWire 65804SL005 control cable online now to secure a high-quality, flexible, 4-conductor wiring solution. Designed for demanding industrial applications, it features 18 AWG bare copper conductors with lubricated PVC insulation and a durable oil-resistant slate PVC jacket. Suitable for high-flex, high-torsion, and continuous-flex environments, ensuring liquid-tight, IP67/NEMA 6 compliance. Ideal for robotics, automation, process control, and industrial machinery, this cable offers excellent mechanical and electrical performance with easy online ordering and fast delivery.
Order your AlphaWire Series 65804SL005 flexible control cable today and ensure reliable performance in your high-flex industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65804SL005?
You can click on the BUY or RFQ button to purchase 65804SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65804SL005?
You can download the 65804SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65804SL005?
ALPHA WIRE
