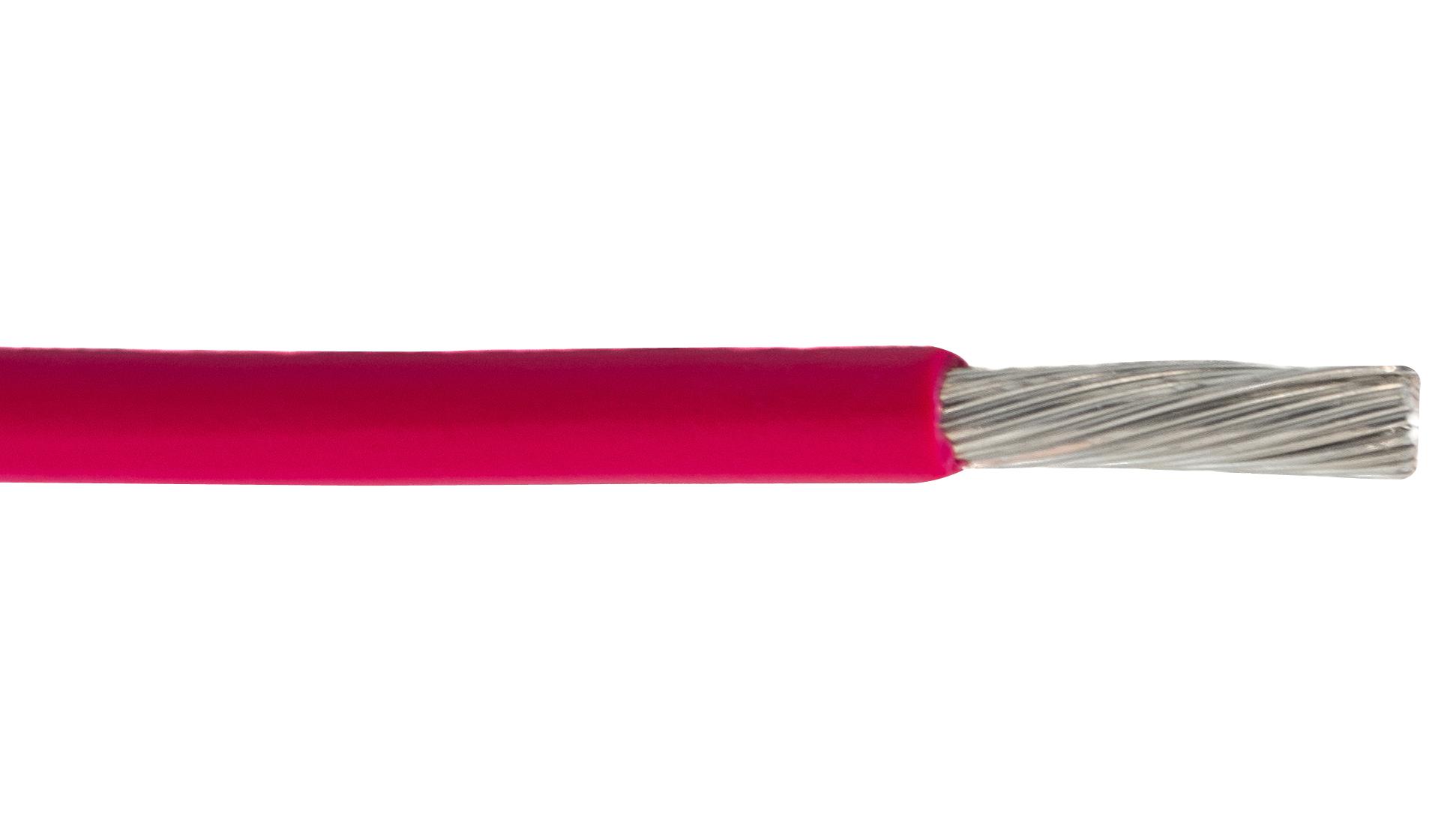

ALPHA WIRE 67025RD033 Electrical Wire
AlphaWire ECOWIRE 0.25mm² is a flexible, flame-retardant cable designed for electrical wiring in various industrial applications. It features tinned copper conductors with a diameter of 0.64 mm, insulated with modified polyphenylene ether. This cable supports a maximum voltage of 600V and maintains performance with a temperature range of -40 to 105°C. Available in multiple colors, it complies with UL AWM 11028 and CSA standards, and meets environmental regulations including RoHS and REACH, ensuring safety and eco-friendliness.
ALPHA WIRE 67025RD033 Electrical Wire Specifications:
- Conductor Diameter: 0.64 mm (tinned copper)
- Insulation Wall Thickness: 0.260 mm, made of modified polyphenylene ether
- Voltage Rating: 600 V
- Temperature Range: -40°C to 105°C
- Flammability Standards: UL 11028, CSA AWM 11028, VW-1
- Material: Tinned copper conductor, flame-retardant insulation
- Bend Radius: 10X cable diameter
- Conductor Resistance: 80 A/Km @20°C
- Jacket Colors: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Packaging Options: 500 M, 100 M, 50 M spools with varying dimensions
- Compliance: RoHS2, REACH, IEC 60332-2 Flame Behavior
Buy the AlphaWire Series ECOWIRE 0.25mm²: 67025RD033
Purchase the AlphaWire Series ECOWIRE 0.25mm² electrical wire online for high-quality, flexible, flame-retardant cables suitable for diverse industrial applications. This UL AWM 11028-rated cable supports 600V and operates safely within a temperature range of -40°C to 105°C. Available in multiple colors, it meets rigorous safety and environmental standards including RoHS and REACH. Whether you need spools of 50, 100, or 500 meters, buying online provides quick delivery and dependable performance for your wiring needs. Ensure your project’s safety and compliance by choosing reliable, industry-approved cables today.
Order your AlphaWire Series ECOWIRE 0.25mm² cable today and ensure reliable, flame-retardant electrical wiring for your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67025RD033?
You can click on the BUY or RFQ button to purchase 67025RD033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67025RD033?
You can download the 67025RD033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67025RD033?
ALPHA WIRE
