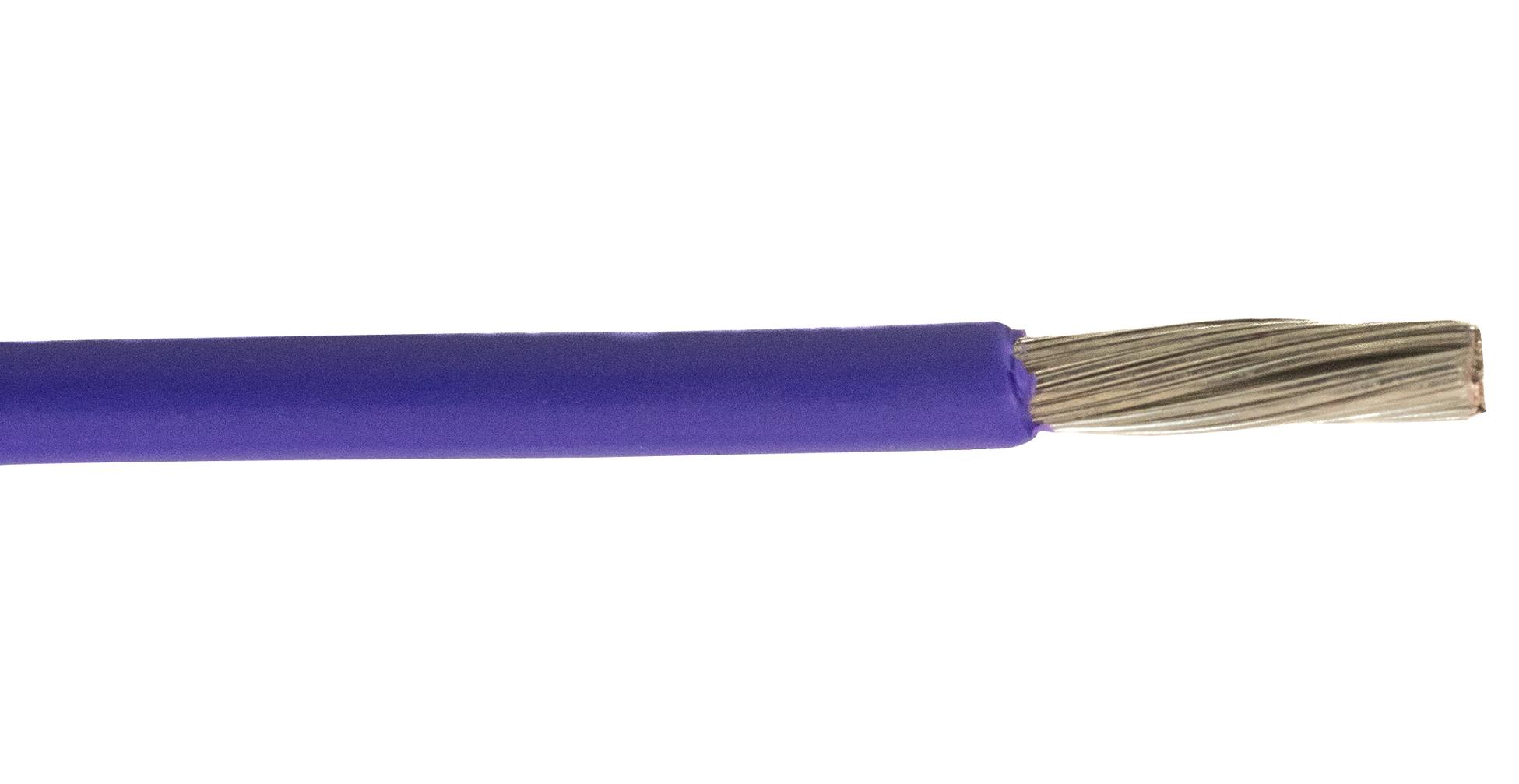

ALPHA WIRE 67025VI321 Hook-up Wire
This high-quality hookup wire is designed for reliable electrical connections in various applications. Made from tinned copper conductors with a 0.250 mm wall modified polyphenylene ether insulation, it is halogen-free and compliant with UL 11028, CSA AWM 11028, and IEC 60332-2 flame behavior standards. Rated for 105°C and 600V, the wire features multiple color options including black, red, white, blue, green, brown, yellow, orange, and violet. Its flexible design allows for easy routing with a bend radius of 10 times the cable diameter, suitable for both industrial and electronic environments.
ALPHA WIRE 67025VI321 Hook-up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: Modified Polyphenylene Ether
- Conductor Diameter: 0.25 mm (32/0.10), Wall Thickness: 0.250 mm
- Voltage Rating: 600 V
- Temperature Rating: -40°C to +105°C
- Flammability: IEC 60332-2 Flame Behavior, UL 11028, CSA AWM 11028
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet
- Bend Radius: 10x Cable Diameter
- Environmental Compliance: RoHS 2, REACH
- Certifications: UL Listed, CSA Certified, IEC Flame Retardant
- Cable Lengths: Multiple lengths available, specific dimensions vary
- Applicable Standards: UL VW-1, CSA AWM, IEC 60332-2
- Knotting and Handling: Flexible for easy routing and installation
Buy the Buy AlphaWire Hook-up Wire Part Number 67025 Online
Order AlphaWire hook-up wire today and ensure durable, flexible connections in electronics and industrial applications. This high-quality cable, rated for 105°C and 600V, offers excellent insulation integrity with a versatile color range. Its halogen-free construction and compliance with UL, CSA, and IEC standards guarantee safety and performance. Suitable for various mounting and wiring configurations, this wire’s bend radius of 10 times the cable diameter makes installation easy. Secure your supply chain and simplify your project with straightforward online ordering and fast delivery.
Buy AlphaWire 67025 hook-up wire now and experience unmatched reliability and performance for your electrical projects, featuring flexible construction and high temperature ratings.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67025VI321?
You can click on the BUY or RFQ button to purchase 67025VI321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67025VI321?
You can download the 67025VI321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67025VI321?
ALPHA WIRE
