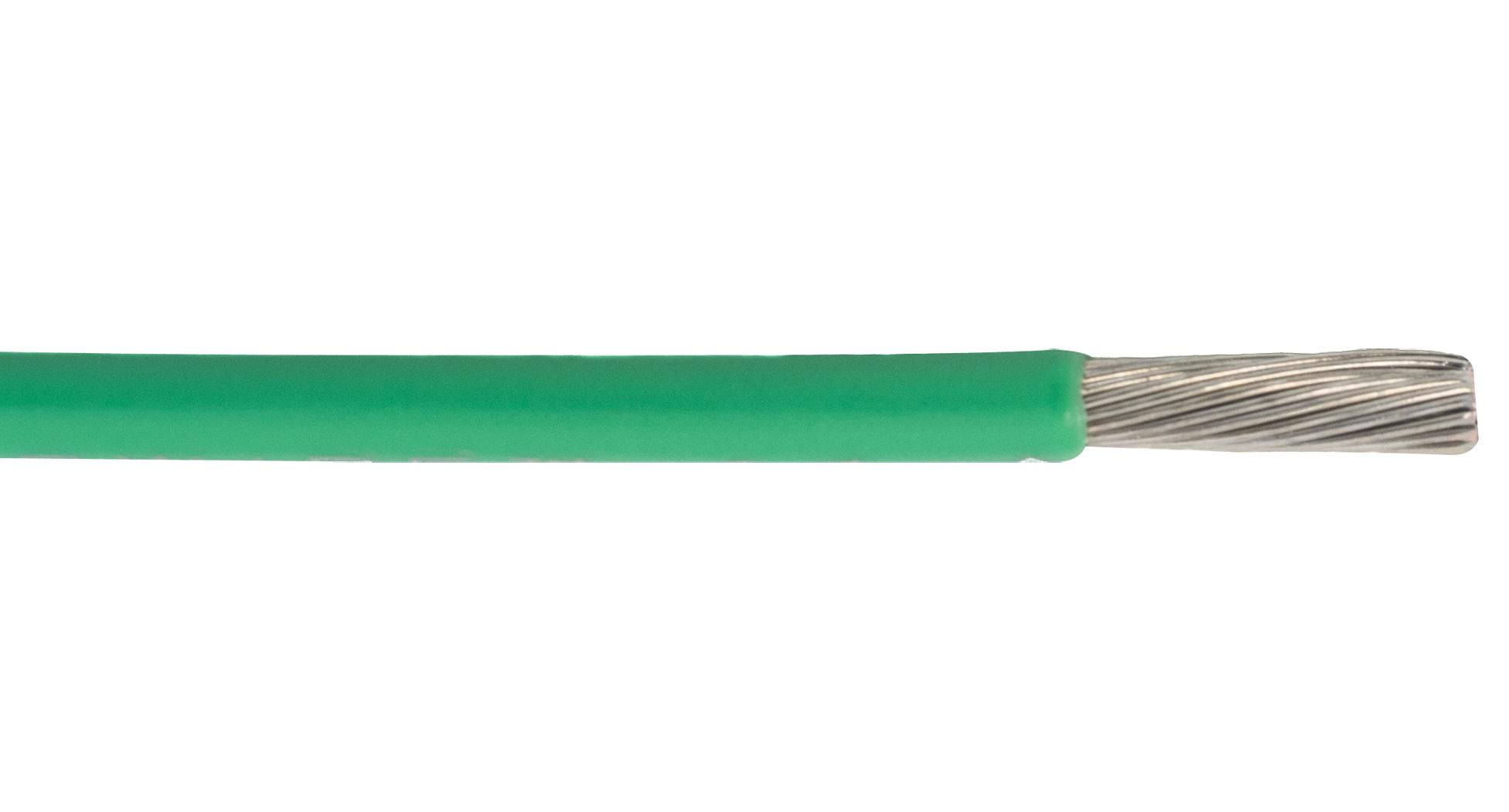

ALPHA WIRE 67150GR321 Electrical Cable
AlphaWire ECOWIRE 1.5MM2 is a halogen-free, flexible electrical cable designed for robust wiring applications in compliance with UL, CSA, and IEC standards. Constructed with 1.50 mm (84/0.16) Tinned Copper conductors and Wall insulation thickness of 0.280 mm from modified Polyphenylene Ether, it offers a voltage rating of 600V and temperature range from -40°C to 105°C. The cable features a bend radius of 10 times the cable diameter, with multiple color options including BLACK, RED, WHITE, BLUE, GREEN, BROWN, YELLOW, ORANGE, and VIOLET, making it suitable for diverse environments. Its halogen-free construction ensures fire safety in electrical installations.
ALPHA WIRE 67150GR321 Electrical Cable Specifications:
- Conductor: 1.50 mm (84/0.16) Tinned Copper
- Insulation Wall Thickness: 0.280 mm from modified Polyphenylene Ether
- Voltage Rating: 600V
- Temperature Range: -40°C to +105°C
- Bend Radius: 10X Cable Diameter
- Standards: UL JAWMSTYLE 11028, CSA AWM 1.5MM2, IEC 60332-2 Flame Behavior
- Halogen-Free: Yes
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet
- Environmental Compliance: RoHS2, REACH
- Insulation Material: Modified Polyphenylene Ether
- Physical Dimensions: Diameter approximately 1.62 mm, length varies with spool
Buy the AlphaWire Series EcoWire 1.5MM2: 600V Halogen-Free Cable
Order AlphaWire EcoWire 1.5MM2 online now and enjoy a high-quality, halogen-free flexible cable with UL, CSA, and IEC approvals. Designed with Tinned Copper conductors and wall insulation for durability and safety, it offers a voltage rating of 600V and a temperature range of -40°C to 105°C. Its compliance with RoHS2 and REACH regulations ensures environmentally responsible wiring in industrial and commercial applications. Multiple colors are available for easy identification and installation. Purchasing online guarantees quick delivery and trusted service for your electrical wiring needs.
Buy AlphaWire EcoWire 1.5MM2 now and experience unmatched reliability and performance in safety-compliant wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67150GR321?
You can click on the BUY or RFQ button to purchase 67150GR321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67150GR321?
You can download the 67150GR321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67150GR321?
ALPHA WIRE
