ALPHA WIRE 705519SL005 Insulated hookup wire
This insulated hookup wire features a PVC insulation wall with a 0.052-inch diameter, rated for 80°C and 150V according to UL and CSA standards. It is suitable for industrial wiring applications requiring flexible, durable conductors with color options like white, black, red, green, yellow, blue, orange, slate, and violet. The wire's construction includes a 22 AWG conductor (19/34 strands) with a temperature range of -55°C to 105°C. It complies with RoHS and REACH regulations, making it an environmentally friendly choice for electronic and electrical projects. The wire supports applications with a bend radius of 10 times the cable diameter and maximum pull tension of 5.9 lbs.
ALPHA WIRE 705519SL005 Insulated hookup wire Specifications:
- Conductor: 22 AWG (19/34 strands)
- Insulation: PVC, 0.052-inch diameter, 0.010-inch wall
- Voltage Rating: 150 V
- Temperature Range: -55°C to 105°C
- Bend Radius: 10x cable diameter
- Maximum Pull Tension: 5.9 lbs
- Inductance: 0.04 wH/ft
- Conductor Resistance: 15.1 Ω/1000ft @20°C
- Flange x Traverse x Barrel: 6.5 x 2 x 1.9 inches (1000 ft spool)
- Color Options: White, Black, Red, Green, Yellow, Blue, Orange, Slate, Violet
- Certifications: UL JAWMSTYLE 1429, CSA AWM IAB 80°C / 150 V, MIL-W-16878E Type B
- Environmental Compliance: RoHS 2 & REACH compliant

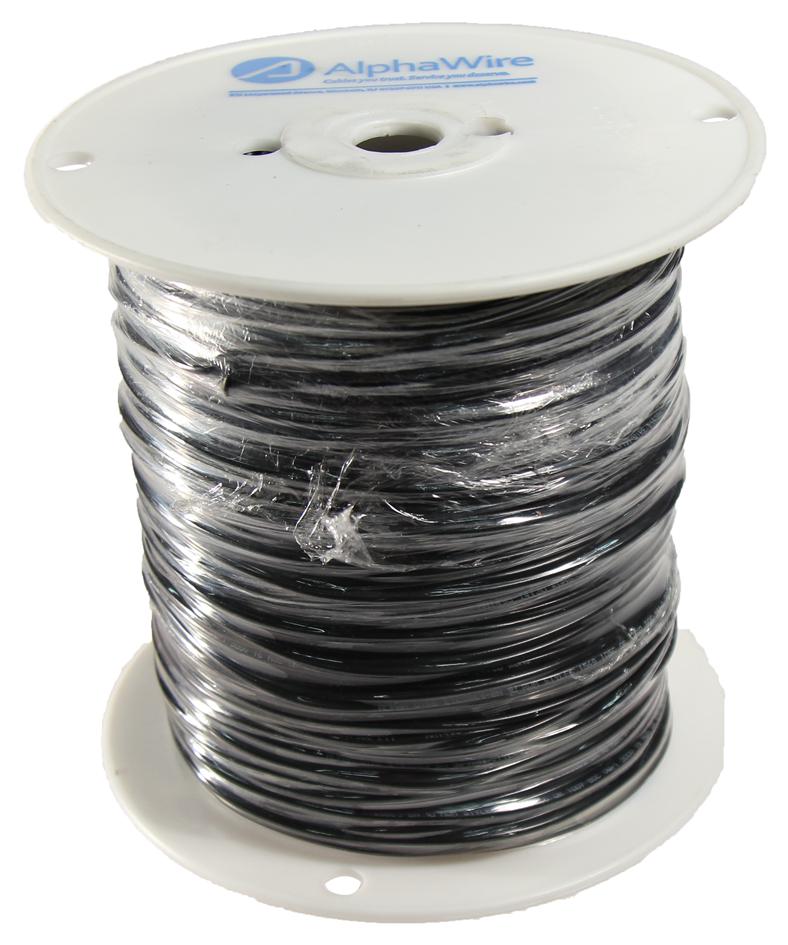

Buy the AlphaWire 7055/19 – Reliable Wiring for Industrial Applications
Purchase AlphaWire 7055/19 online now to ensure reliable connection and safety in your electrical projects. This high-quality hookup wire with PVC insulation is rated for 150V and temperatures up to 105°C. Available in multiple colors, it meets UL, CSA, RoHS, and REACH standards, guaranteeing compliance and environmental safety. Ideal for industrial wiring, automation, and electronic applications, its flexible construction supports easy installation with a bend radius of 10 times the cable diameter. Order now for fast delivery and trusted performance.
Get AlphaWire 7055/19 today—built for precision, durability, and flexible industrial wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 705519SL005?
You can click on the BUY or RFQ button to purchase 705519SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 705519SL005?
You can download the 705519SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 705519SL005?
ALPHA WIRE
