ALPHA WIRE 58616SL001 Shielded Control Cable
This shielded cable features 22 AWG conductors with a PVC jacket, suitable for low-voltage signal transmission in industrial environments. It complies with UL, CSA, and CE standards, with a temperature range from -25°C to 125°C and a maximum voltage rating of 150 V. The cable has a characteristic impedance of 43 ohms, a mutual capacitance of 38 pF/ft, and excellent electrical performance. Its construction includes multiple twisted pairs, foil and Mylar shielding, and durable insulation, making it ideal for control and instrumentation applications requiring high flexibility and EMI protection.
ALPHA WIRE 58616SL001 Shielded Control Cable Specifications:
- Wire Gauge: 22 AWG
- Voltage Rating: 150 V
- Temperature Range: -25°C to 125°C
- Impedance: 43 ohms
- Mutual Capacitance: 38 pF/ft
- Ground Capacitance: 68 pF/ft
- Inductance: 0.16 µH/ft
- Conductor Resistance: 16.5 ohms/1000 ft
- Shield Type: Foil and Mylar with drain wire
- Jacket Material: Nominal PVDF, Wall thickness 0.009 inches
- Construction: Twisted pairs, foil facing in, with drain wire, overall jacket, compliant with UL, CSA, CE, RoHS, REACH, California Proposition 65
- Physical Dimensions: 6x1 pair, overall diameter approximately 0.272 inches, lengths up to 1000 ft

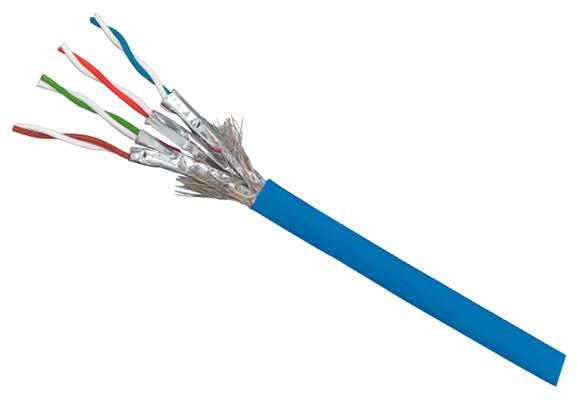

Buy the Buy AlphaWire Part Number 58616SL001 Online
Purchase AlphaWire Part Number 58616SL001 online today to ensure high-quality, shielded cabling for your control systems. Designed with 22 AWG conductors, foil and Mylar shielding, and durable PVDF insulation, this cable offers excellent EMI protection and reliable electrical performance across a temperature range of -25°C to 125°C. Compliant with UL, CSA, and CE standards, it features a Voltage Rating of 150 V and a characteristic impedance of 43 ohms. Ideal for industrial control, instrumentation, and signal transmission applications, order now for quick delivery and peace of mind.
Buy AlphaWire Part Number 58616SL001 now and experience unmatched reliability and high shielding effectiveness for your control and instrumentation needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58616SL001?
You can click on the BUY or RFQ button to purchase 58616SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58616SL001?
You can download the 58616SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58616SL001?
ALPHA WIRE
