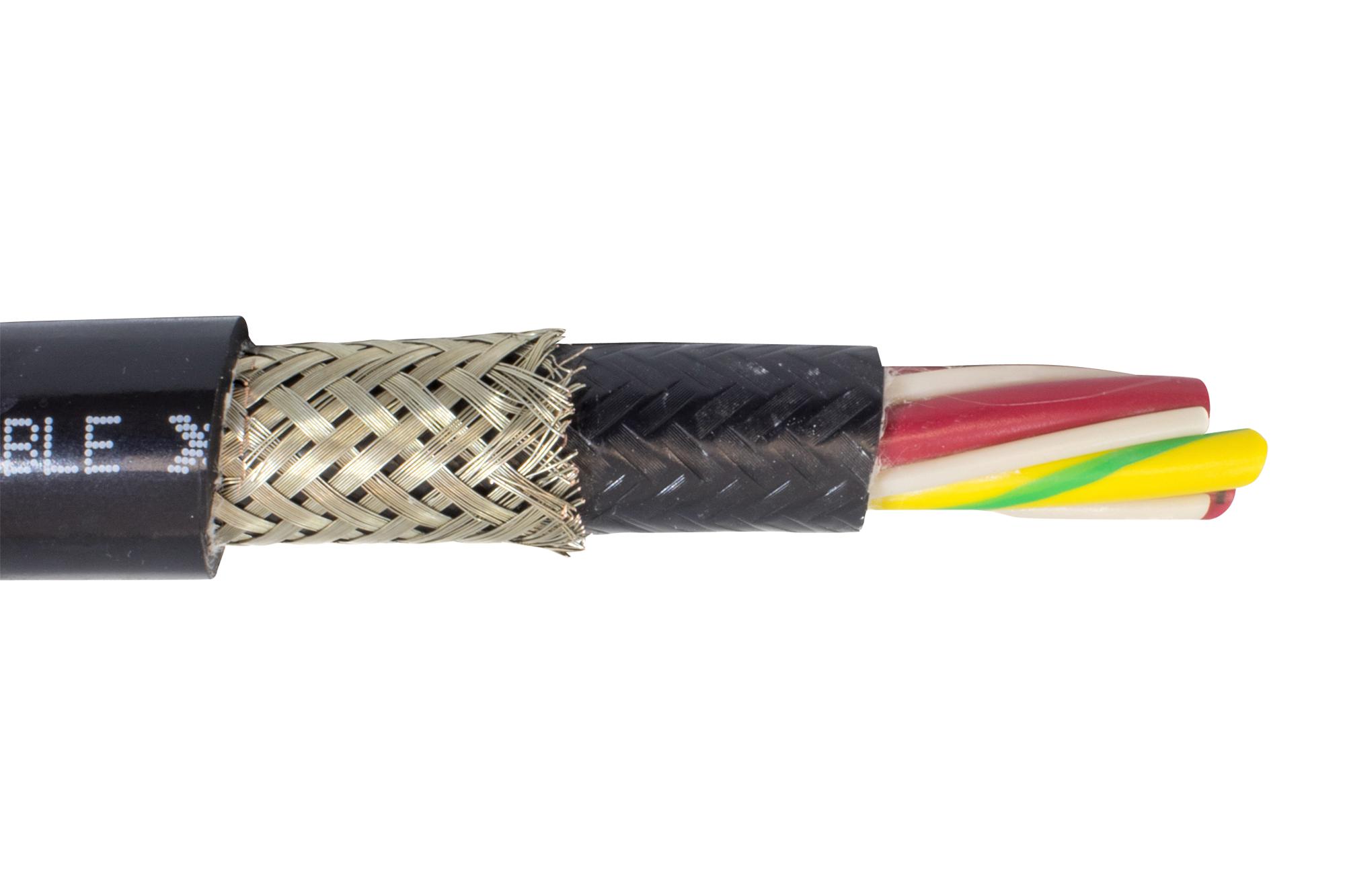

ALPHA WIRE 85224CYBK005 Control Cable
This advanced control cable features four conductors with 22 AWG bare copper wires, PVC insulation, and a durable black PVC jacket resistant to oil. Designed for continuous flexing applications, it operates within a temperature range of -40°C to 90°C, with excellent electrical properties including 600V voltage rating and low capacitance. Shielded with 85% copper braid coverage for interference protection, it complies with UL, CSA, VDE, CE standards, and RoHS/REACH regulations. Suitable for industrial automation, machinery wiring, and control systems, ensuring long-lasting performance in dynamic environments.
ALPHA WIRE 85224CYBK005 Control Cable Specifications:
- Conductor: 22 AWG bare copper
- Insulation Wall: 0.022 inches PVC
- Jacket Wall: 0.025 inches PVC, black, oil-resistant
- Shield: Copper braid, 85% coverage
- Temperature Range: -40°C to 90°C
- Voltage Rating: 600V
- Capacitance: 31 pF/ft @ 1 kHz
- Ground Capacitance: 56 pF/ft
- Inductance: 0.22 pH/ft
- Conductor DCR: 16.1 ohms/1000 ft @ 20°C
- Bend Radius: 8X cable diameter
- Pull Tension: 31 lbs max
- Compatible Standards: UL AWM 2587, CSA, VDE, CE, RoHS, REACH
- Available in lengths: 1000 ft, 500 ft, 100 ft
Buy the Buy AlphaWire Control Cable Part Number 85224CY Online
Purchase the AlphaWire control cable today online to ensure reliable performance for your automation and industrial wiring needs. This four-conductor cable features 22 AWG bare copper conductors, flexible PVC insulation, and a durable black PVC jacket resistant to oil and environmental conditions. Its copper braid offers interference protection, and it meets UL, CSA, VDE, CE, RoHS, and REACH standards, ensuring compliance and safety. Ideal for machinery, control panels, and dynamic environments, this cable guarantees lasting performance and ease of installation.
Get AlphaWire 85224CY control cable today—designed for continuous flexing, industrial automation, and long-lasting durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE 85224CYBK005?
You can click on the BUY or RFQ button to purchase 85224CYBK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 85224CYBK005?
You can download the 85224CYBK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 85224CYBK005?
ALPHA WIRE
