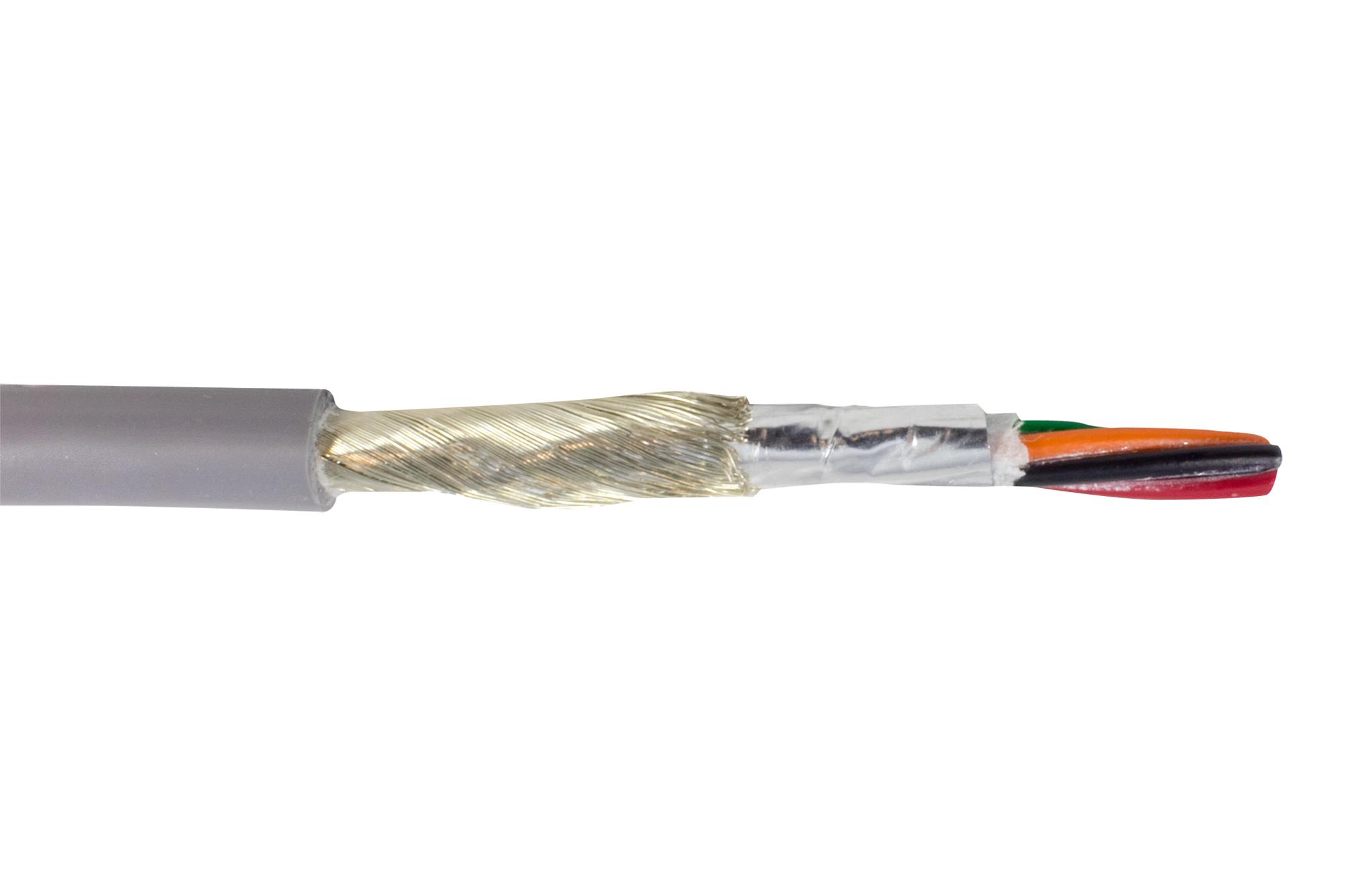

ALPHA WIRE 86163CYSL005 Shielded Data Cable
The 86163CYSL005 is a high-performance flexible data cable designed for robust electronic connections requiring durable insulation and shielding. It features a PVC insulation with a 0.010-inch wall thickness, a PVC jacket with a 0.043-inch wall thickness in slate color, and multiple twisted components arranged inside from the innermost to outermost layers. The cable is compliant with UL, CSA, and CE standards, rated for 300 V, with excellent resistance to sunlight, temperature extremes from 10°C to 105°C, and mechanical stress with a pull tension of 66 lbs. Ideal for industrial and control applications requiring shielded cables that withstand harsh environments.
ALPHA WIRE 86163CYSL005 Shielded Data Cable Specifications:
- Conductor: 16 AWG (65/34) Tinned Copper, 0.056 inches diameter
- Insulation: PVC, 0.010 inch wall, semi rigid, color code D (Black, Red, White)
- Jacket: PVC with 0.043 inch wall, slate color, with tissue tape separator
- Shield: Aluminum/Mylar tape with 25% overlap, foil facing out, drain wire: 26 AWG Tinned Copper
- Overall cable diameter varies: 12 x 12 x 3.5 inches for 1000 ft spool, 12 x 6 x 3.5 inches for 500 ft, 12 x 4.5 x 3.5 inches for 100 ft
- Voltage Rating: 300 V, Capacitance: 51 pF/ft, Ground Capacitance: 92 pF/ft, Inductance: 0.15 pH/ft, DCR Conductor: 4.4 Ω/1000 ft
- Temperature Range: -10°C to 105°C, Bend Radius: 8X cable diameter static/dynamic, Pull Tension: 66 lbs, Resistance to Sunlight and Mechanical Stress
- Standards: UL AWM/Style 10002 105°C / 300V, CSA AWM I/ll AB 105°C / 300V, CE compliant with EU Directive 2014/35/EU and RoHS 2 & 3, REACH compliant
Buy the Alpha Wire Series XTRAGUARD Data Cable: 86163CYSL005
Discover the high-flex shielded data cable from Alpha Wire, designed for demanding industrial applications. Featuring PVC insulation and jacket, it offers excellent mechanical and environmental resistance. Compliant with UL, CSA, and CE standards, rated for 300 V and temperature extremes from -10°C to 105°C. This cable's twisted components and aluminum/mylar shielding ensure signal integrity in harsh conditions. Perfect for control systems, automation, and electronics, order online today and ensure reliable performance on your critical projects.
Order your Alpha Wire Series XTRAGUARD 86163CYSL005 today and give your projects the dependable quality they deserve.
