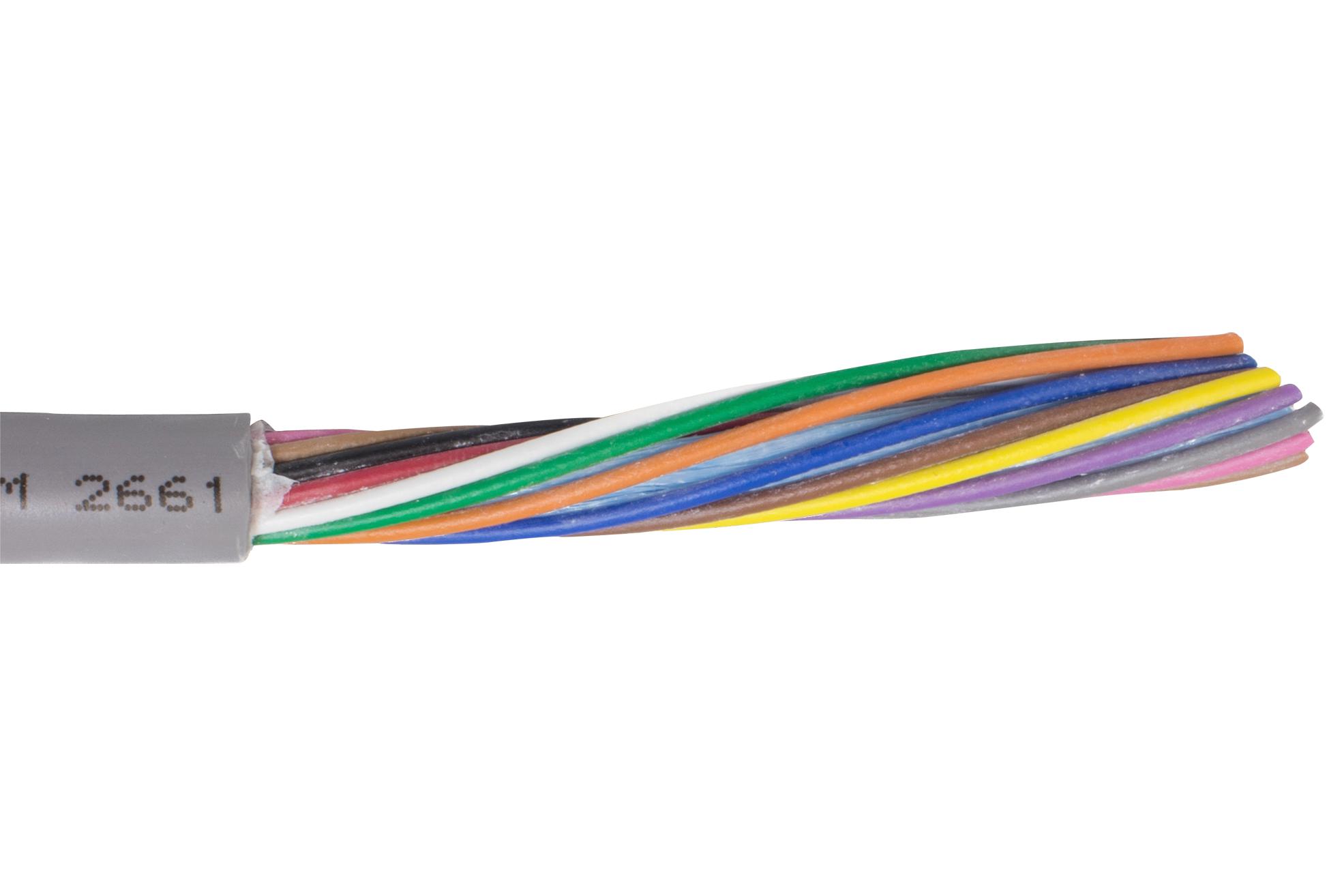

ALPHA WIRE 861812SL005 Flexible Data Cable
This is a continuous flex data cable designed for versatile industrial and electronic applications. Featuring 18 AWG tinned copper conductors with a PVC semi-rigid insulation and a 0.043-inch wall thickness, it ensures durability and flexibility. The cable includes a protective nonwoven polyester core wrap and a slate-colored PVC jacket with printed specifications. Rated at 300V and capable of withstanding static temperatures up to 105°C, it offers excellent resistance to sunlight, oil, and mechanical stress, making it ideal for complex wiring systems and automation projects.
ALPHA WIRE 861812SL005 Flexible Data Cable Specifications:
- Conductors: 18 AWG tinned copper, 41/34 strands
- Insulation: PVC, 0.010 inches wall, semi rigid
- Jacket: PVC, 0.043 inches wall, slate color
- Temperature Rating: -55°C to +105°C (static), +5°C to +105°C (dynamic)
- Voltage Rating: 300V
- Capacitance: 27 pF/ft at 1 kHz
- Inductance: 0.16 μH/ft
- Conductor Resistance: 7 Ω/1000 ft at 20°C
- Bend Radius: 8x cable diameter (static and dynamic)
- Pull Tension: 153 lbs maximum
- Sunlight Resistance: Yes
- Environmental Compliance: RoHS 2 & 3, CE, REACH, CSA
Buy the Buy Alpha Wire Data Cable Part Number 861812 Online
Secure your wiring needs with the high-quality, versatile Alpha Wire data cable. Designed for durability, safety, and efficiency, this cable supports applications requiring high flexibility and resistance to environmental factors. With a 300V rating, fire-retardant PVC insulation, and compliance with RoHS and CE standards, it is perfect for electrical installations in manufacturing, automation, and electronic projects. Order online today to ensure fast delivery and reliable performance for your critical wiring infrastructure.
Buy Alpha Wire 861812 now and experience unmatched reliability and performance in industrial data wiring and automation systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861812SL005?
You can click on the BUY or RFQ button to purchase 861812SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861812SL005?
You can download the 861812SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861812SL005?
ALPHA WIRE
