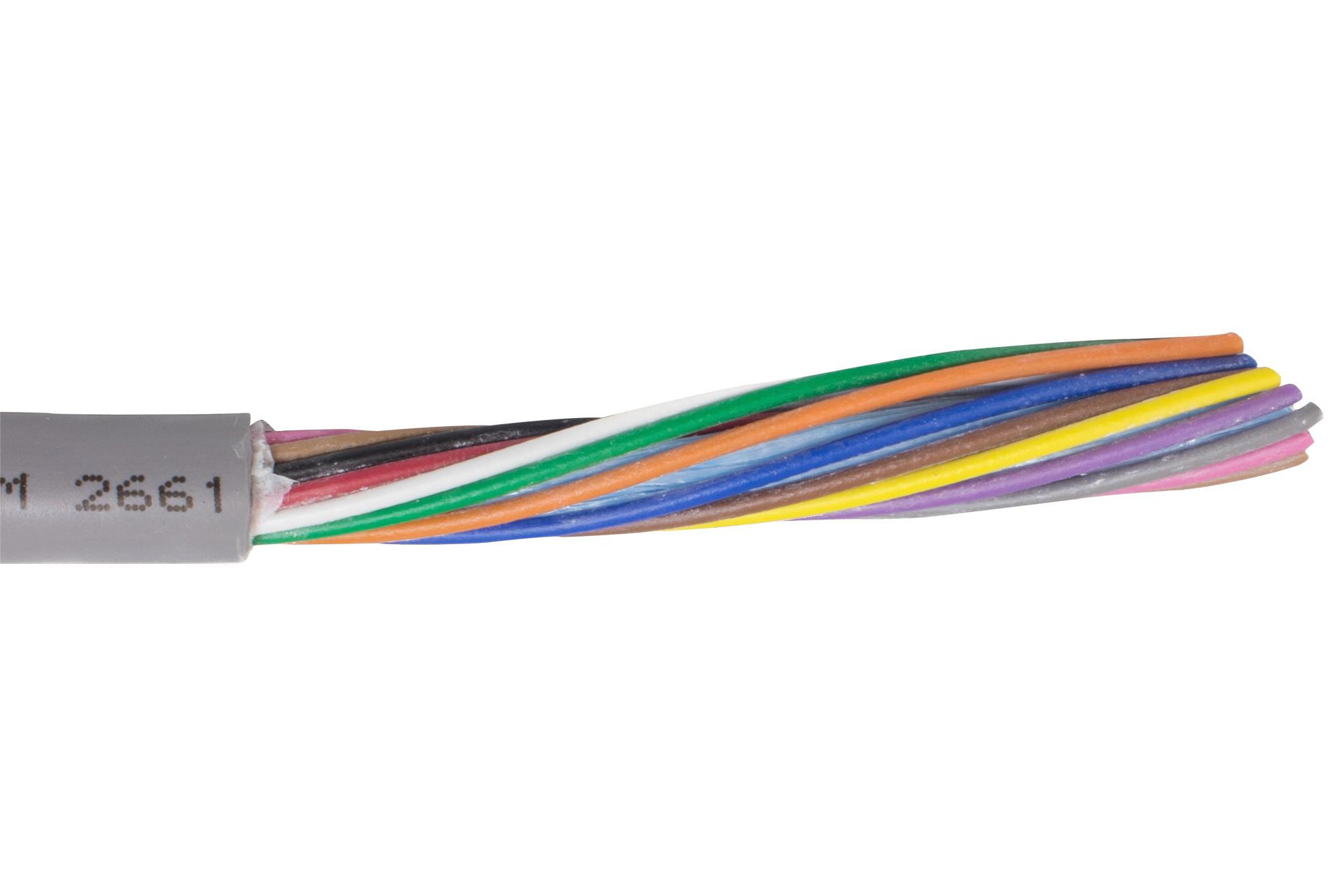

ALPHA WIRE 862004SL005 Data Cable
This flexible data cable by Alpha Wire features 20 AWG tinned copper conductors with a 0.040-inch wall PVC insulation and a 0.230-inch wall PVC jacket, suitable for various electrical and control applications. It is designed with multiple internal twists, core wrap, and a slate-colored outer jacket, rated at 300V with high durability, sunlight resistance, and flexible installation. Compliant with UL, CSA, CE, and RoHS standards, this cable offers a capacitance of 26 pF/ft at 1 kHz and a conductor resistance of 9.5 ohms per 1000 ft, making it ideal for industrial use.
ALPHA WIRE 862004SL005 Data Cable Specifications:
- Conductor: 20 AWG Tinned Copper
- Insulation: 0.010-inch PVC, Semi Rigid
- Jacket: 0.040-inch PVC, Slate color
- Voltage Rating: 300 V
- Capacitance: 26 pF/ft @1 kHz
- Inductance: 0.16 pH/ft
- Conductor DCR: 9.5 Ω/1000 ft @20°C
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Bend Radius: 8X cable diameter static/dynamic
- Pull Tension: 38 lbs max
- Sunlight Resistance: Yes
- Cable Length & Dimensions: 1000 ft, 12 x 10 x 5 inches; 500 ft, 12 x 4.5 x 3.5 inches; 100 ft, 6.5 x 4 x 2.5 inches
Buy the AlphaWire Series XTRAGUARD Data Cable: 862004
Order the AlphaWire 862004 flexible data cable online today and experience high-quality construction with 20 AWG tinned copper conductors, PVC insulation, and a durable PVC jacket. Rated at 300V, sunlight resistant, and compliant with UL, CSA, and RoHS standards, this versatile cable is perfect for control systems, instrumentation, and industrial applications. Available in various lengths with easy installation features, ensure reliable performance and longevity by purchasing this premium data cable directly from our online store now.
Get AlphaWire 862004 today—built for precision, flexibility, and long-lasting durability in industrial wiring solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE 862004SL005?
You can click on the BUY or RFQ button to purchase 862004SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 862004SL005?
You can download the 862004SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 862004SL005?
ALPHA WIRE
