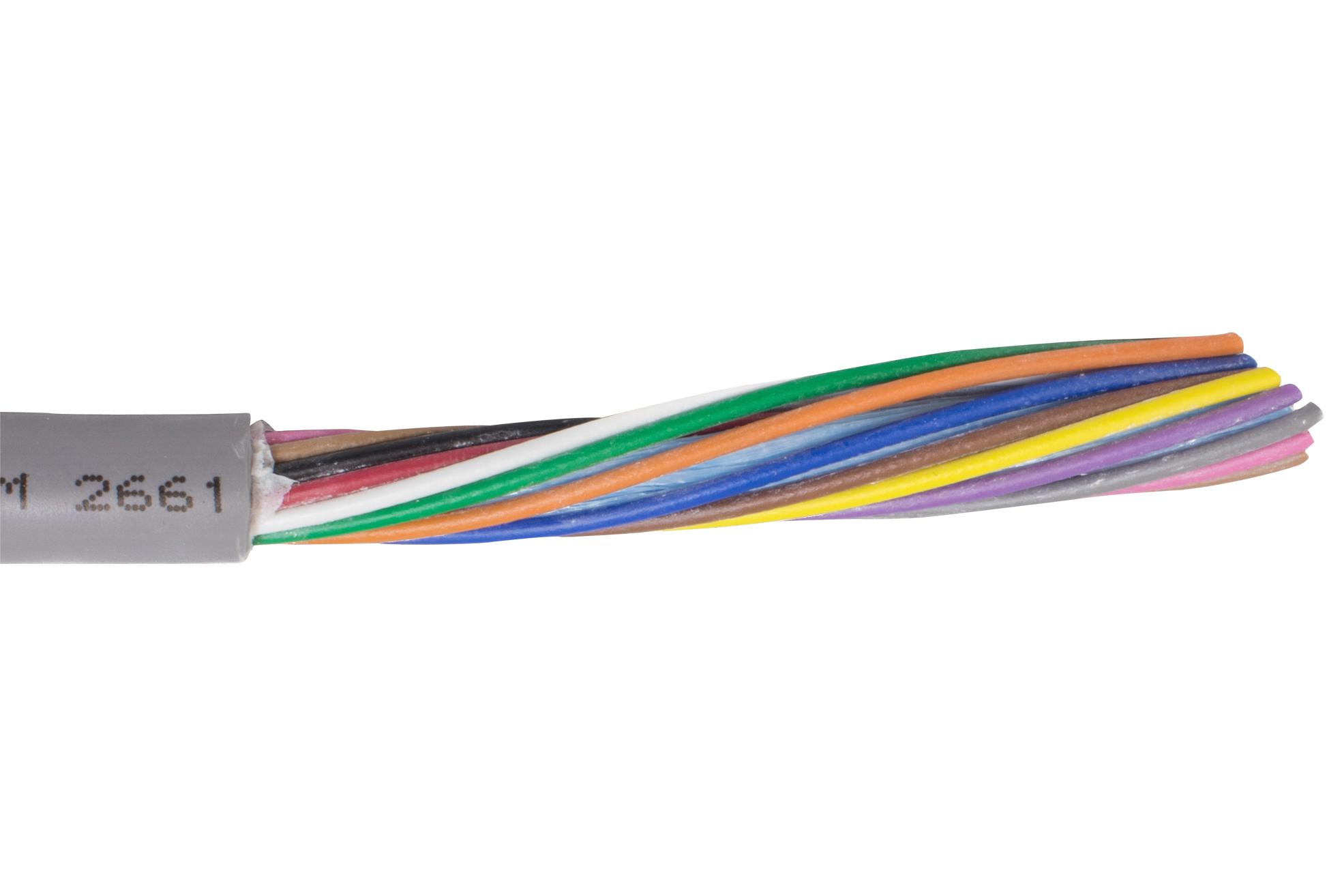

ALPHA WIRE 862007SL005 Flex Data Cable
The product is an extraguard continuous flex data cable designed for industrial applications, with a PVC jacket and copper conductors. It features a flexible, cabled construction with a 300V voltage rating, ideal for dynamic environments requiring durable, sunlight-resistant wiring. Compliant with UL, CSA, and EU RoHS standards, this cable supports high-temperature operation up to 105°C, with a bend radius of 8x cable diameter, making it suitable for complex routing. Available in slate color, it ensures reliable electrical performance with low capacitance and inductance, perfect for control systems and automation networks.
ALPHA WIRE 862007SL005 Flex Data Cable Specifications:
- Conductor Material: Tinned Copper 20 AWG
- Insulation Wall Thickness: 0.010 inch
- Jacket Wall Thickness: 0.043 inch
- Jacket Material: PVC
- Jacket Color: Slate
- Voltage Rating: 300 V
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Bend Radius: 8 times cable diameter (static and dynamic)
- Pull Tension: 67 lbs maximum
- Capacitance: 26 pF/ft at 1 kHz
- Inductance: 0.16 μH/ft
- Conductor Resistance (DCR): 9.5 Ω/1000 ft @ 20°C
- Outer Diameter: Approximately 0.293 inches ± 0.014
- Length Variants: 1000 ft, 500 ft, 100 ft spools
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE compatible
- Environmental Resistance: Sunlight resistant, high temperature resilient
Buy the AlphaWire Series XTRAGUARD Data Cable: 862007
Order AlphaWire 862007 online today to ensure your control systems and automation networks are equipped with high-quality, flexible, and UL, CSA, RoHS compliant data cables. Designed to withstand high temperatures and sunlight, this durable cable's rugged PVC jacket and copper conductors deliver excellent electrical performance, low capacitance, and resistance to environmental factors. With easy online purchasing, fast delivery, and technical support, secure your supply of this reliable, high-performance wiring solution for all your industrial and control system needs today.
Buy AlphaWire 862007 now and experience unmatched flexibility, durability, and reliable electrical performance for industrial control and automation applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 862007SL005?
You can click on the BUY or RFQ button to purchase 862007SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 862007SL005?
You can download the 862007SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 862007SL005?
ALPHA WIRE
