ALPHA WIRE 86704CYSL002 Datasheet & Stock

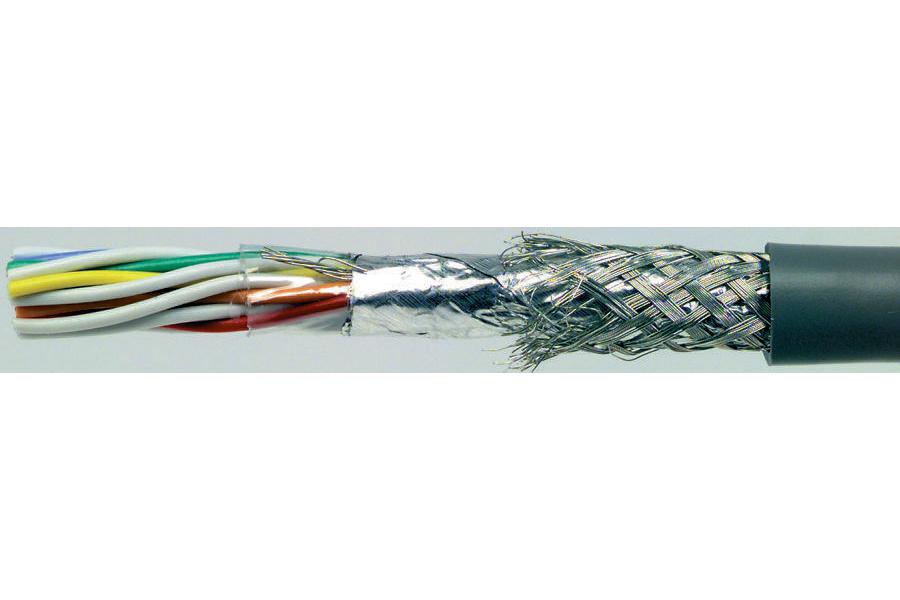

The 86704CY SL002 is a 500-foot, four-pair Xtra-Guard® continuous flex shielded data cable. It features finely stranded, tinned copper conductors and lubricated semi-rigid PVC insulation. Designed for high-flex, high-torsion, and continuous-flex applications, the cable's rounded geometry ensures a liquid-tight installation in compliance with IP67 and NEMA 6 standards. It is shielded with a minimum of 25% overlapping aluminum/polyester foil and an 85% coverage tinned copper braid, providing effective EMI interference resistance. The cable supports a maximum pull tension of 56 lbs., has a characteristic impedance of 67 ohms, and offers up to 6 million flex cycles, making it suitable for demanding industrial and automation environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 86704CYSL002?
You can click on the BUY or RFQ button to purchase 86704CYSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 86704CYSL002?
You can download the 86704CYSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 86704CYSL002?
ALPHA WIRE
