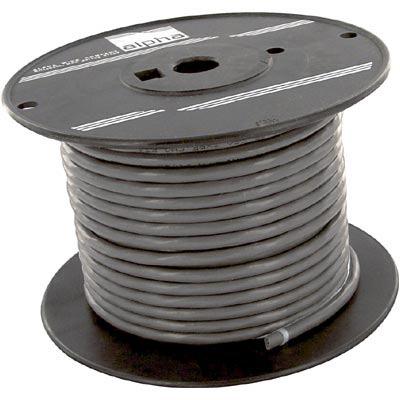

ALPHA WIRE 882220SL005 control cable
The product is a multi-conductor cables with a 22 AWG conductor gauge, designed for low-voltage applications up to 300 V. It features a PVC insulation with a wall thickness of 0.010 inches, and a temperature rating from -20°C to 105°C. The cable complies with UL, CSA, CE, and RoHS standards, boasting high flexibility with a bend radius of 10 times the cable diameter and a maximum pull tension of 110 lbs. Suitable for control wiring, instrumentation, and general purpose use in industrial environments, it offers reliable electrical performance with low capacitance and inductance values.
ALPHA WIRE 882220SL005 control cable Specifications:
- Conductor Gauge: 22 AWG
- Insulation Wall Thickness: 0.010 inches
- Maximum Temperature: 105°C
- Minimum Temperature: -20°C
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 110 lbs
- Voltage Rating: 300 V
- Capacitance: 23.5 pF/ft @1 kHz
- Inductance: 0.18 μH/ft
- Conductor Resistance (DCR): 16.5 Ω/1000 ft @20°C
- UL, CSA, CE, RoHS compliant
- Cable length options: 1000 ft, 500 ft, 100 ft
Buy the Alpha Wire 882220 U+2013 Reliable Control Cable for Industrial Applications
Purchase the AlphaWire 882220 control cable online today for your industrial wiring needs. This UL, CSA, CE, and RoHS compliant multi-conductor cable offers excellent flexibility, reliable electrical properties, and wide temperature range suitability. Its 22 AWG conductors with PVC insulation ensure durability and optimal performance in control, instrumentation, and general industrial applications. With various length options available, this cable guarantees easy installation, safety compliance, and long-lasting operation in demanding environments. Buy now to secure superior quality wiring solutions for your projects.
Order your AlphaWire 882220 control cable today and ensure reliable, flexible wiring solutions for your industrial control and instrumentation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882220SL005?
You can click on the BUY or RFQ button to purchase 882220SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882220SL005?
You can download the 882220SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882220SL005?
ALPHA WIRE
