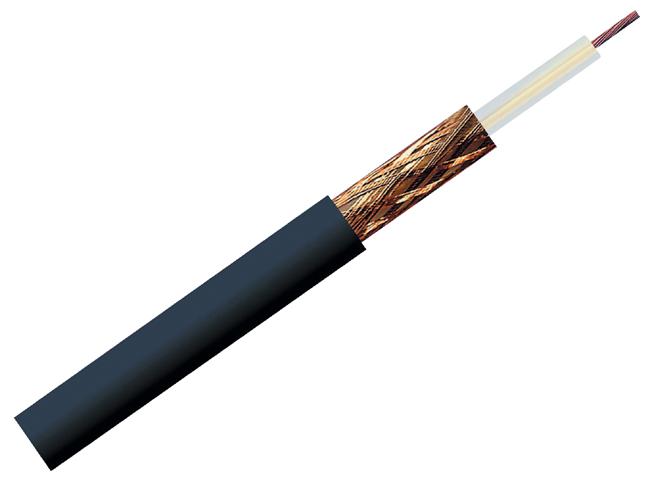

ALPHA WIRE 9059CGR001 Shielded Coaxial Cable
This shielded coaxial cable features a 22 AWG copper conductor, PVC insulation, and BC braid shield with 95% coverage, ensuring reliable performance. Certified by UL, CSA, and CE, it supports high voltage ratings up to 7 kV and 2.3 kV respectively, with a characteristic impedance of 75 ohms and a velocity of propagation of 66%. Designed for signal transmission in broadcast, CCTV, and communication systems, it offers excellent flexibility, low attenuation, and stable electrical properties across a temperature range of -20°C to 60°C. Its durable outer jacket meets RoHS and REACH standards, suitable for demanding installations.
ALPHA WIRE 9059CGR001 Shielded Coaxial Cable Specifications:
- Conductor: 22 AWG copper
- Insulation: PVC, 0.034" wall
- Shield: BC braid shield, 95% coverage
- Jacket: PVC, 0.0605" wall, black, red, slate, blue, green colors
- Voltage Rating: 7 kV (isolation), 2.3 kV (withstand)
- Impedance: 75 ohms
- Velocity of Propagation: 66%
- Capacitance: 55.1 pF/ft @20°C
- Attenuation: Max 21 dB/100ft @1 kHz
- Temperature Range: -20°C to 60°C
- Diameter: 0.242 inches ± 0.010
- Cable Lengths: 1000 ft, 500 ft, 100 ft
- Compliance: RoHS, REACH, UL, CSA, CE
- Shield Coverage: 95% braid
- Physical Properties: 12 x 12 x 3.5 inches reel, maximum weight 12.4 lbs
- Application: Broadcast, CCTV, communication systems
- Standards: UL 1354, CSA Type CMG FT4, CE RoHS
- External Certification: RoHS, REACH, California Proposition 65
Buy the Buy AlphaWire 9059C Part Number 9059C Online
Order AlphaWire 9059C shielded coaxial cable online now to ensure reliable signal transmission. This high-quality RG-59/U cable features 22 AWG copper conductors, PVC insulation, and 95% braid shielding, providing excellent performance for broadcast, CCTV, and communication systems. Certified by UL, CSA, and CE, it supports high voltage ratings up to 7 kV and possesses a low attenuation of 21 dB/100ft at 1 kHz. Its durable construction and compliance with RoHS and REACH standards make it ideal for demanding electrical installations, ensuring safety and longevity.
Get AlphaWire 9059C today—built for high-quality signal transmission and durable shielding in communication networks.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9059CGR001?
You can click on the BUY or RFQ button to purchase 9059CGR001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9059CGR001?
You can download the 9059CGR001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9059CGR001?
ALPHA WIRE
