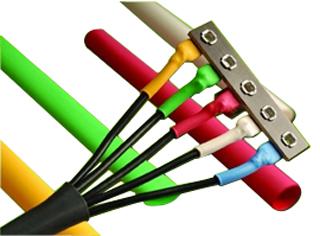

ALPHA WIRE F10534BK008 Heat Shrink Tubing
The F1053/4 BK008 is a black heat shrink tubing made of irradiated PVC designed for electrical insulation and protection of wires and components. Featuring a 2:1 shrink ratio, it ensures a tight fit when heated. The tubing has a minimum tensile strength of 3000 psi and dielectric strength of 1083 volts per mil, making it suitable for high-voltage insulation. Operating temperatures range from -20°C to 105°C, with a recovery temperature of 105°C and shrink temperature of 100°C. It complies with UL, CSA, RoHS, and REACH standards, ensuring safety and environmental compliance for industrial uses.
ALPHA WIRE F10534BK008 Heat Shrink Tubing Specifications:
- Material: Irradiated PVC
- Color: Black
- Minimum Recovered ID: 0.375 inches
- Minimum Supplied ID: 0.750 inches
- Wall Thickness: 0.035 inches
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 105°C
- Minimum Shrink Temperature: 100°C
- Tensile Strength: 3000 psi, Min ASTM D638
- Elongation: 300%, Min ASTM D638
- Dielectric Strength: 1083 V/mil, Min ASTM D876
- Volume Resistivity: 1x10^14 ohm-cm, Min ASTM D876
- Water Absorption: 1.00%, Max ASTM D570
- Temperature Range: -20°C to 105°C
- Shelf Life: 1 Year @ 18-35°C
Buy the Buy AlphaWire Part Number F10534BK008 Online
Order AlphaWire heat shrink tubing online today to ensure your electrical connections are protected and insulated efficiently. This irradiated PVC tubing features a 2:1 shrink ratio, excellent dielectric properties, and is compliant with international safety standards. Perfect for industrial, automotive, and electronics applications, it provides a tight seal and high durability across a temperature range of -20°C to 105°C. Trust AlphaWire for quality, safety, and quick delivery—get your heat shrink tubing now and improve your wiring system reliability.
Buy AlphaWire F10534BK008 now and enhance your electrical insulation with reliable, high-performance heat shrink tubing.
