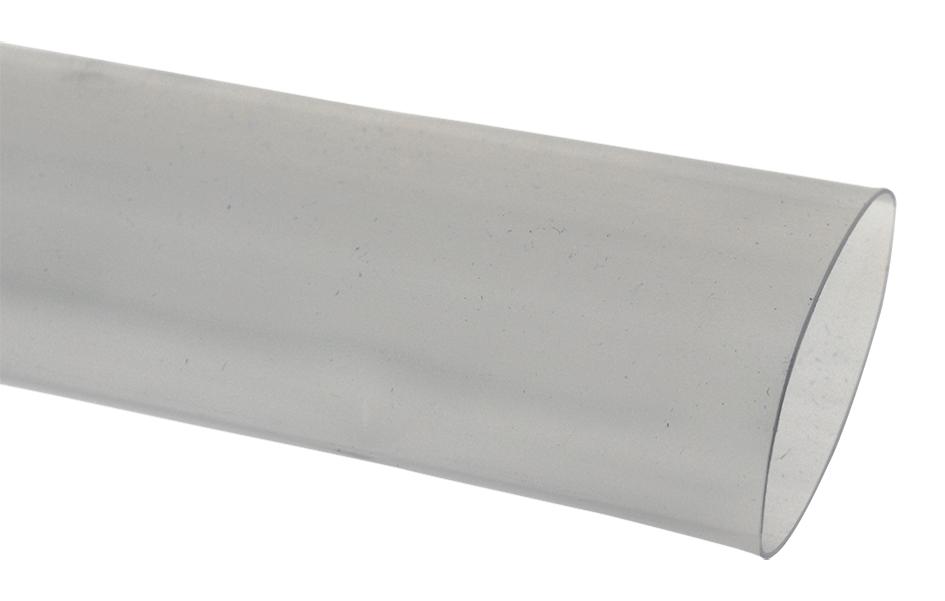

ALPHA WIRE F22134CL105 Heat Shrink Tubing
The FIT-221-3/4 CL105 is a 20-foot length of clear, irradiated polyolefin heat shrink tubing designed for multi-purpose use. It is ideal for wiring harnessing, wire bundling, strain relief, and insulation or packaging applications. The tubing features a 2:1 shrink ratio at 121°C and offers flexibility, corrosion resistance, a tensile strength of 1500 PSI, and a volume resistivity of around 10¹ ohm-centimeters. Suitable for industrial applications, it complies with UL 224 and CSA standards, ensuring safety and durability under demanding conditions.
ALPHA WIRE F22134CL105 Heat Shrink Tubing Specifications:
- Material: Cross Linked Polyolefin
- Color: Clear (also available in Black, White, Red, Yellow, Blue, Green, Orange)
- Minimum Supplied ID: 0.750 inches
- Maximum Recovered ID: 0.375 inches
- Nominal Recovered Wall Thickness: 0.030 inches
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: 121°C
- Tensile Strength: 1500 psi, Min
- Volume Resistivity: 1x10⁴ ohm-cm, Min
- Low Temperature Flex: -55°C
- Temperature Range: -55°C to 135°C
- Chemical Resistance: No corrosion after immersion
- Shelf Life: 5 Years @ 18 to 35°C
- Certifications: UL Standard 224, CSA International Standard 198
- RoHS & REACH Compliant: Yes
- Cross-Linking: UV Irradiation
- Environmental Compliance: RoHS, China RoHS, Prop 65
Buy the AlphaWire Series Heat Shrink Tubing: FIT-221-3/4
Secure your electrical projects with AlphaWire’s FIT-221-3/4 heat shrink tubing. This clear, 20-foot polyolefin tubing offers a 2:1 shrink ratio at 121°C, ideal for insulation, bundling, and strain relief applications. Its excellent chemical resistance, tensile strength, and environmental compliance make it perfect for industrial environments. Ensure safety and durability with UL and CSA standards. Purchase online today for quick delivery and reliable performance in demanding electrical and electronic applications.
Buy AlphaWire FIT-221-3/4 now and experience unmatched reliability and performance for your wiring and insulation needs.
