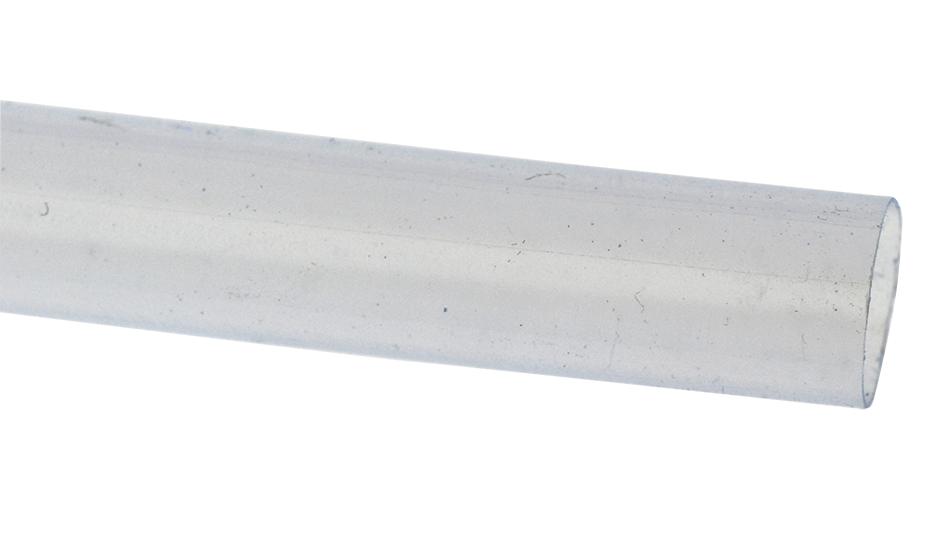

ALPHA WIRE F221364WH103 Heat Shrink Tube
This high-quality heat shrinkable tube made from cross-linked polyolefin offers excellent environmental resistance, including RoHS and REACH compliance. Suitable for wire insulation, it withstands temperatures from -55°C to 135°C, with a full recovery temperature of 121°C. The tube features a 2:1 shrink ratio, minimal water absorption, high dielectric strength, and excellent chemical resistance. Available in multiple colors such as black, white, clear, red, yellow, blue, and green, it ensures reliable insulation and protection for electrical and electronic applications.
ALPHA WIRE F221364WH103 Heat Shrink Tube Specifications:
- Material: Cross-linked Polyolefin
- Maximum Recovered ID: 0.046 inch
- Minimum Recovered ID: 0.023 inch
- Nominal Wall Thickness: 0.016 inch
- Temperature Range: -55°C to 135°C
- Shrink Ratio: 2:1
- Full Recovery Temperature: 121°C
- Dielectric Strength: 500 V/mil min
- Volume Resistivity: 1x10⁴ ohm-cm min
- Water Absorption: 0.50% max
- Chemical Resistance: Excellent against various chemicals
- Colors Available: Black, White, Clear, Red, Yellow, Blue, Green
- Shelf Life: 5 years at 18°C to 35°C
- RoHS Compliant, REACH compliant, California Proposition 65 compliant
- Certified for UL/CSA standards, withstands heat shock to 250°C for 4 hours
Buy the Buy AlphaWire Heat Shrink Tube Part Number F221364WH103 Online
Order the AlphaWire heat shrink tube part number F221364WH103 online today and enjoy fast delivery and competitive pricing. This durable polyolefin tubing provides excellent environmental resistance, including RoHS and REACH compliance, with a 2:1 shrink ratio and temperature tolerance from -55°C to 135°C. It’s perfect for insuring wire and cable connections, protecting against chemicals, and ensuring long-term reliability in demanding electrical and electronic environments. Buy now to secure top-quality insulation for your projects.
Buy AlphaWire F221364WH103 now and experience reliable insulation with high chemical and temperature resistance, ideal for electrical protection.
