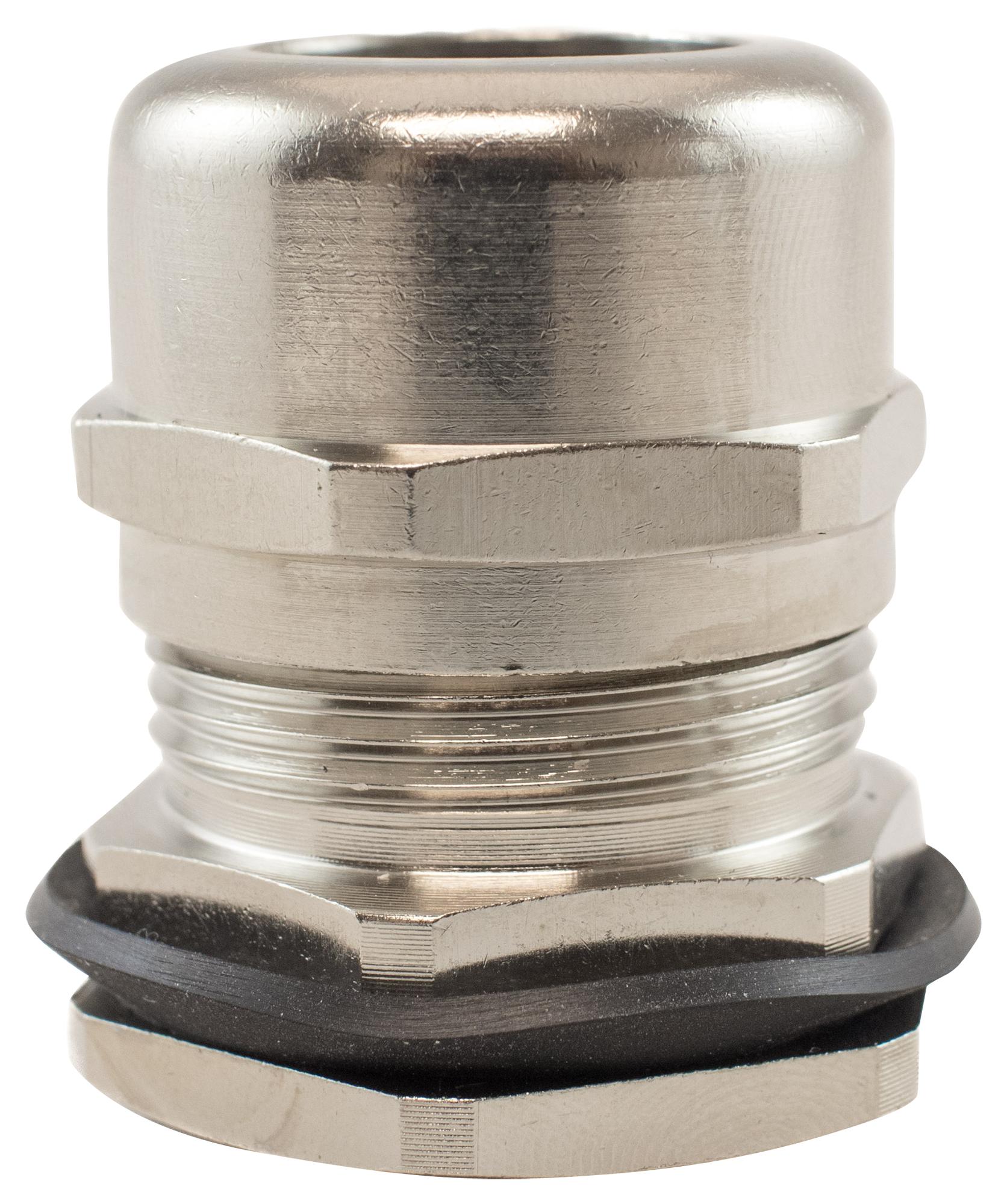

ALPHA WIRE MES25NC080 Cable Gland
The MES25 NC080 Alpha Fit® Standard Dome Design Metric Cable Gland provides reliable cable strain relief and environmental protection. Made from high-strength nickel-plated brass, it includes rubber seals to prevent water ingress and withstand pressure rated IP68 (5 bar for 30 minutes) and IP66. The gland features robust sealing components, a UL94V-2 flammability rating, and operates within a temperature range of -20°C to +100°C permanently, and -40°C to +150°C intermittently. Certified by UL and CSA, it is ideal for industrial automation, electrical installations, and renewable energy sectors requiring durable, reliable cable management solutions.
ALPHA WIRE MES25NC080 Cable Gland Specifications:
- Material: Brass, Nickel plated
- Seal: CR Rubber
- Temperature Rating: -20°C to +100°C (permanent), -40°C to +150°C (intermittent)
- Protection Class: IP68 5 Bar for 30 min, IP66
- Flammability: V2 UL94
- Clamping Range: 11.0-17.0 mm
- Thread Size: M-25x1.5
- Thread Length: 8.0 mm
- Outer Width: 27 mm
- Max Height: 32.5 mm
- Approvals: UL, CSA
Buy the Alpha Wire M-25x1.5 U+2013 Reliable Cable Gland for Industrial Applications
Shop online today to secure the high-performance Alpha Wire cable gland, designed for reliable environmental sealing and cable strain relief in demanding industrial environments. Made from durable nickel-plated brass, this gland offers excellent IP68/IP66 protection, UL94V-2 flammability rating, and withstands extreme temperatures. Ideal for automation systems, electrical wiring, and renewable energy setups, the gland's robust construction ensures long-term durability and safety. Purchase now and enhance your project’s safety, compliance, and operational reliability with fast, secure online ordering.
Order your Alpha Wire SeriesM-25x1.5 cable gland today and ensure your electrical installations are protected with high-quality, IP-rated sealing solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE MES25NC080?
You can click on the BUY or RFQ button to purchase MES25NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MES25NC080?
You can download the MES25NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MES25NC080?
ALPHA WIRE
