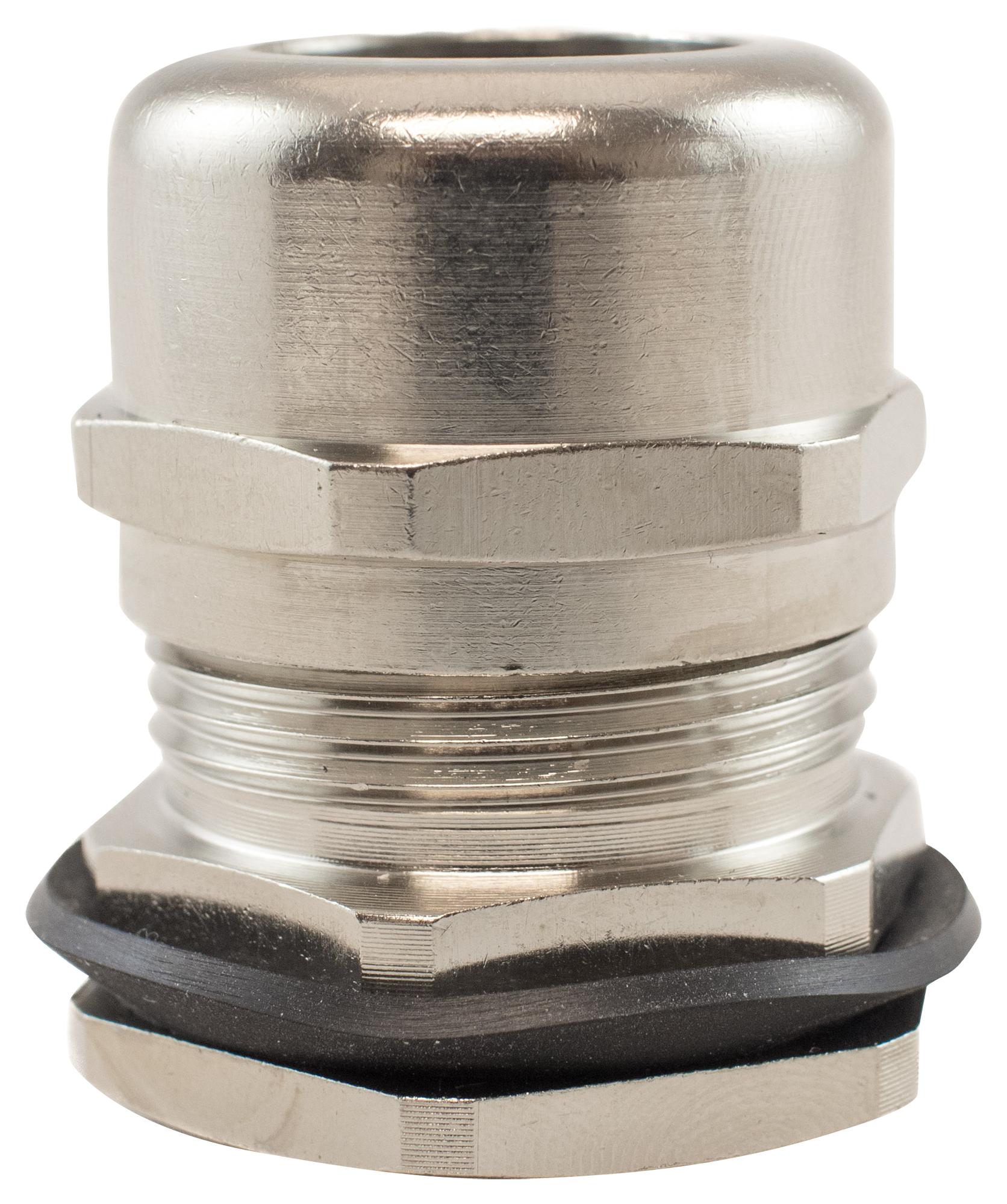

ALPHA WIRE MNPT1NC080 NPT Cable Gland
The Alpha Fit® Standard Dome Design NPT Cable Gland offers dependable cable strain relief and environmental sealing. Crafted from durable nickel-plated brass, it resists dust, dirt, and sand, ensuring a watertight fit with an IP68 rating—withstanding 5 bar pressure for 30 minutes. It includes a locknut and gasket for a secure connection, with rubber seals to prevent water ingress. Rated for -20°C to +100°C continuously, and up to +150°C intermittently, it is UL listed and CSA certified, ideal for industrial automation, electrical, and renewable energy systems. A versatile, high-quality electrical component.
ALPHA WIRE MNPT1NC080 NPT Cable Gland Specifications:
- Material: Nickel-plated brass for durability and corrosion resistance
- Protection Class: IP68, 5 Bar for 30 minutes, IP66 for general protection
- Flammability: V2 according to UL94
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -40°C to +150°C
- Thread Sizes: 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, with respective thread lengths and outer diameters
- Certifications: UL UL 514, CSA Certified
- Includes: Locknut and gasket for secure and sealed installation
- Applications: Suitable for industrial automation, electrical installations, renewable energy projects
Buy the Alpha Nickel Plated Brass NPT Cable Gland – Reliable Sealing for Industrial Applications
Purchase the Alpha Wire NPT Cable Gland online today and ensure reliable strain relief and environmental sealing for your electrical installations. Made from high-quality nickel-plated brass, this gland delivers excellent corrosion resistance and a watertight IP68 rating—withstanding 5 bar pressure for 30 minutes. It features rubber seals to prevent water ingress, and includes a locknut and gasket for a secure fit. Rated for -20°C to +100°C permanently, and up to +150°C intermittently, it's UL listed and CSA certified. Perfect for industrial automation, electrical, and renewable energy applications, offering durability and versatile protection.
Get Alpha Wire nickel-plated brass NPT cable gland today—built for precision, environmental protection, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE MNPT1NC080?
You can click on the BUY or RFQ button to purchase MNPT1NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MNPT1NC080?
You can download the MNPT1NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MNPT1NC080?
ALPHA WIRE
