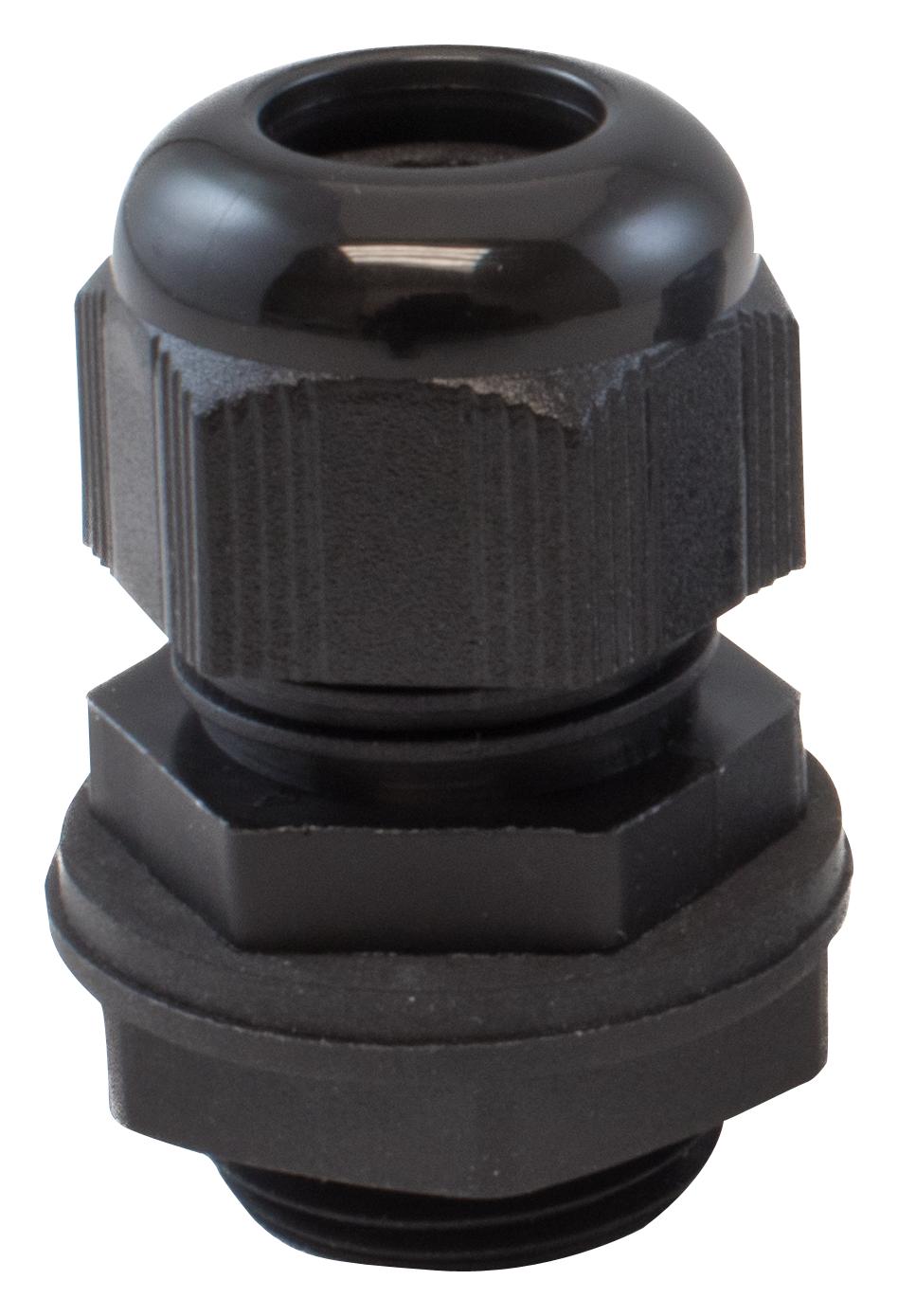

ALPHA WIRE PMC32BK080 Cable Gland
The PMC32 BK080 Alpha Fit® Standard Dome Design Metric Cable Gland offers reliable cable strain relief and environmental protection. Made from durable polyamide 6 in black, it includes a rubber seal to prevent water ingress and contaminants. The gland features a spanner width of 36 mm, a thread length of 36 mm, and an outer height of 41 mm, ensuring a secure fit for cables with clamping ranges from 15.0 to 21.0 mm. Rated IP68, it withstands water pressure of 5 bar for 30 minutes, suitable for industrial automation, renewable energy, and electrical equipment. Certified UL and CSA, it operates between -20°C and +100°C permanently, intermittently up to +150°C, offering exceptional performance in demanding environments.
ALPHA WIRE PMC32BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black, RAL 9005
- Protection Class: IP68 (5 bar for 30 min)
- Flammability: V2 UL94
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: M-32x1.5 (metric according to EN 60423)
- Thread Length: 36 mm
- Outer Height: 41 mm
- Spanner Width: 36 mm
- Clamping Range: 15.0-21.0 mm
- Certifications: UL 514, CSA C22.2
Buy the Alpha Cable Glands M-32x1.5 – Reliable Waterproof Connectors for Industrial Applications
Secure your cables with the Alpha Cable Gland, featuring IP68 waterproof rating, durable polyamide construction, and certified UL and CSA standards. Perfect for industrial automation, renewable energy systems, and electrical equipment. Its robust rubber seal prevents water ingress, safeguarding your wiring in harsh environments. Easy to install with a sturdy spanner width of 36 mm and a thread length of 36 mm, this gland accommodates cable clamping ranges from 15.0 to 21.0 mm. Invest in reliable, high-quality cable management today for optimal safety and performance.
Buy Alpha Cable Glands M-32x1.5 now and ensure robust waterproof cable connections for demanding industrial and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMC32BK080?
You can click on the BUY or RFQ button to purchase PMC32BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMC32BK080?
You can download the PMC32BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMC32BK080?
ALPHA WIRE
