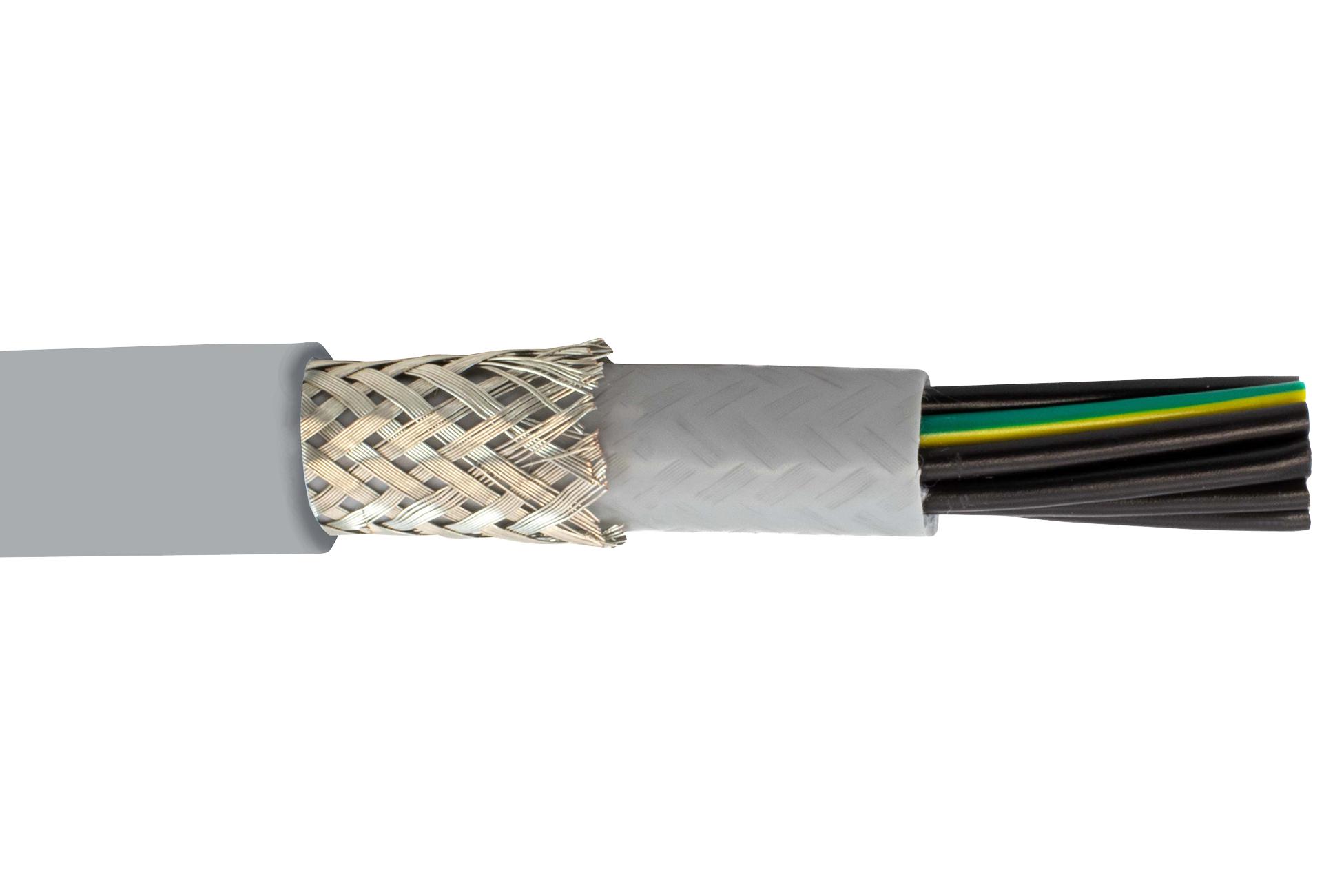

ALPHA WIRE 470315CYGE033 industrial control cable
The Pro-Met shielded flexible industrial control cable features three 15 AWG stranded bare copper conductors, a tinned copper braid shield with 80% coverage, and a grey PVC jacket. It is oil-impervious, UV resistant, and designed for harsh environments. Capable of withstanding one million flex cycles, it operates within -40°C to +80°C static and -30°C to +70°C dynamic. Suitable for industrial automation, control sensors, machine tools, and aerospace applications, it ensures reliable performance in demanding conditions with excellent flexibility and chemical resistance.
ALPHA WIRE 470315CYGE033 industrial control cable Specifications:
- Conductors: Three stranded bare copper conductors, 15 AWG size
- Shield: Tinned copper braid, 80% coverage
- Jacket: Grey PVC, RAL 7001
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Flexibility: 20 times outer diameter (occasional movement), 6 times (fixed)
- Environmental Resistance: Oil, UV, chemicals
- Mechanical Durability: Withstands up to 1 million flex cycles
- Application: Food & beverage, medical, industrial automation, aerospace, control sensors
- Voltage Rating: 300/500 V
- Construction: Multi-core, flexible, shielded
Buy the Alpha Wire Series PRO-MET Shielded Control Cable: 470315CYGE033
Order the Alpha Wire 470315CYGE033 control cable online today and ensure optimal performance in demanding environments. This shielded, flexible cable with three 15 AWG conductors is oil-resistant, UV tolerant, and capable of withstanding over a million flex cycles. Designed for industrial automation, aerospace, and control sensors, it operates across -40°C to +80°C, offering excellent chemical and mechanical durability. Reliable, flexible, and suitable for critical control systems, this cable guarantees safety and high efficiency in challenging applications.
Buy Alpha Wire 470315CYGE033 now and experience unmatched reliability, flexibility, and superior environmental resistance for industrial and aerospace applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470315CYGE033?
You can click on the BUY or RFQ button to purchase 470315CYGE033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470315CYGE033?
You can download the 470315CYGE033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470315CYGE033?
ALPHA WIRE
