ALPHA WIRE PMS12SL080 Cable Gland

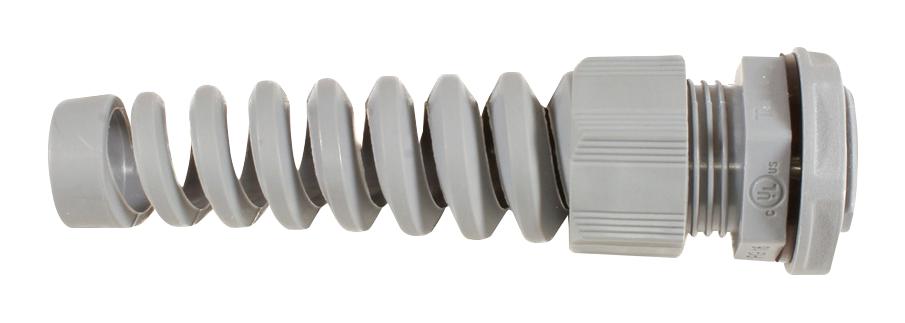

The PMS12 SL080 Fit® Flexible Spiral Design Metric Cable Gland offers reliable cable strain relief and environmental protection. Made from high-strength polyamide 6 in slate color (RAL 7001), it features a robust rubber seal to guard against water ingress, with a protection rating of IP68 (5 bar, 30 minutes) and also meets IP66 standards. The gland is UL listed (514) and CSA certified (C22), suitable for both permanent (-20°C to +100°C) and intermittent (-30°C to +150°C) temperature ranges. It comes complete with a locknut and gasket, making it ideal for industrial automation, electrical systems, and renewable energy applications.
ALPHA WIRE PMS12SL080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Slate, RAL 7001
- Protection Class: IP68 (5 bar, 30 min) and IP66
- Flammability: UL 514 V-2
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: Metric according to EN 60423
- Thread Sizes: M12x1.5, M16x1.5, M20x1.5, M25x1.5
- Thread Lengths: Ranging from 8mm to 10mm depending on size
- Clamping Range: 3.0-65mm for M12, 5.0-100mm for M16, 10.0-140mm for M20, 13.0-180mm for M25
- Includes: Locknut and gasket
- Certifications: UL 514 aid, CSA C22.2
Buy the Alpha Cable Gland PMS12– Reliable Metric Cable Management for Industrial Applications
Ensure secure and reliable cable connections with the Alpha Series PMS12 cable gland, designed for tough industrial environments. Made from durable polyamide 6, it provides IP68 and IP66 environmental protection, UL and CSA certifications, and temperature resilience from -20°C to +150°C. This versatile cable gland includes a locknut and gasket for easy installation, making it ideal for automation, electrical systems, and renewable energy applications. Order online now to secure your supply of this trusted industrial component with guaranteed quality and excellent performance in harsh conditions.
Order your Alpha Series PMS12 cable gland today and ensure your electrical installations are protected with high-quality, reliable cable management solutions.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMS12SL080?
You can click on the BUY or RFQ button to purchase PMS12SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMS12SL080?
You can download the PMS12SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMS12SL080?
ALPHA WIRE
