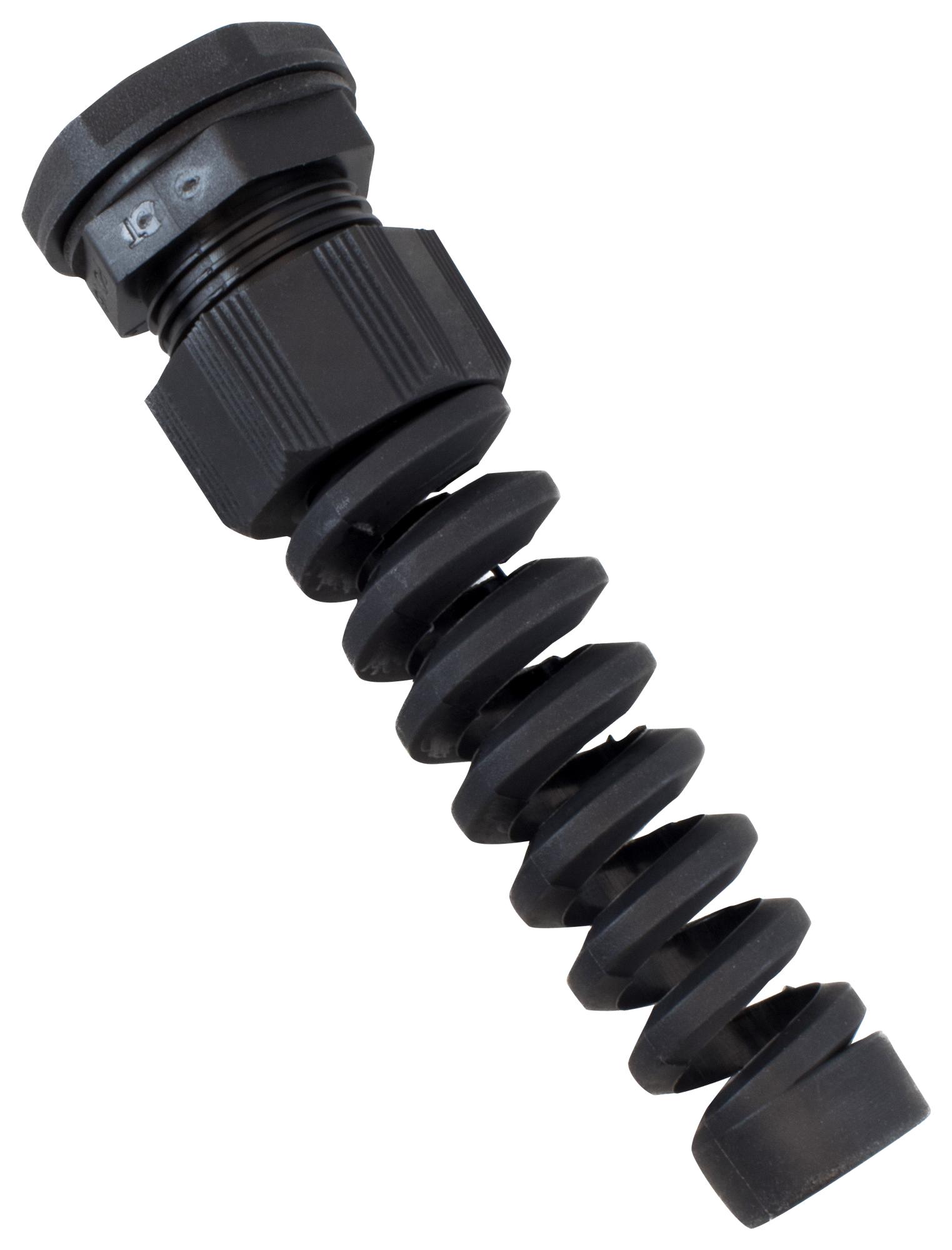

ALPHA WIRE PMS20BK080 Cable Gland
The PMS20 BK080 Alpha Fit® Flexible Spiral Design Metric Cable Gland is a durable and versatile component designed for providing effective cable strain relief and environmental protection. Made from high-strength polyamide 6 in black, it features robust rubber seals to guard against water ingress and pressure, meeting IP68 (up to 5 bar for 30 minutes) and IP66 protection standards. The package includes a locknut and gasket for a complete sealing solution. This cable gland is suitable for use in various industries such as industrial automation, electrical systems, and renewable energy, and is flame-rated to UL94V-2. It operates within temperature ranges of -20°C to +100°C permanently and -30°C to +150°C intermittently. The component is UL listed and CSA certified, ensuring high safety and quality standards.
ALPHA WIRE PMS20BK080 Cable Gland Specifications:
- Material: Polyamide 6 (body and cap), Chloroprene Rubber (seal)
- Color: Black, RAL 9005
- Protection Class: IP68 5 Bar for 30 min, IP66
- Flammability: V2 UL94
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: Metric according to EN 60423 sw
- Thread Size Options: M12x1.5, M16x1.5, M20x1.5, M25x1.5
- Clamp Range: 3.0-6.5 mm to 13.0-18.0 mm depending on size
- Outer Diameter: up to 38 mm
- Thread Length: 8-10 mm depending on size
- Protection Standards: UL UL 514, CSA C22.2
- Operating Environment: Suitable for industrial automation, electrical installations, renewable energy setups
- Certification: UL Listed, CSA Certified
- Package Quantity: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number PMS20BK080 Online
Purchase the Alpha Wire PMS20BK080 Cable Gland online for reliable cable strain relief and environmental protection. Made from durable polyamide 6 in black, it features high ingress protection ratings of IP68 and IP66, providing water and dust resistance for industrial, automation, electrical, or renewable energy applications. Flame-rated to UL94V-2, this component is UL listed and CSA certified, ensuring safety and compliance. The package includes a locknut and gasket, making installation straightforward. Operates within -20°C to +100°C permanently, and -30°C to +150°C intermittently, offering versatile use in demanding environments. Buy now for quality, safety, and durability.
Get Alpha Wire PMS20BK080 today—built for precision, robust environmental protection, and long-lasting durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMS20BK080?
You can click on the BUY or RFQ button to purchase PMS20BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMS20BK080?
You can download the PMS20BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMS20BK080?
ALPHA WIRE
